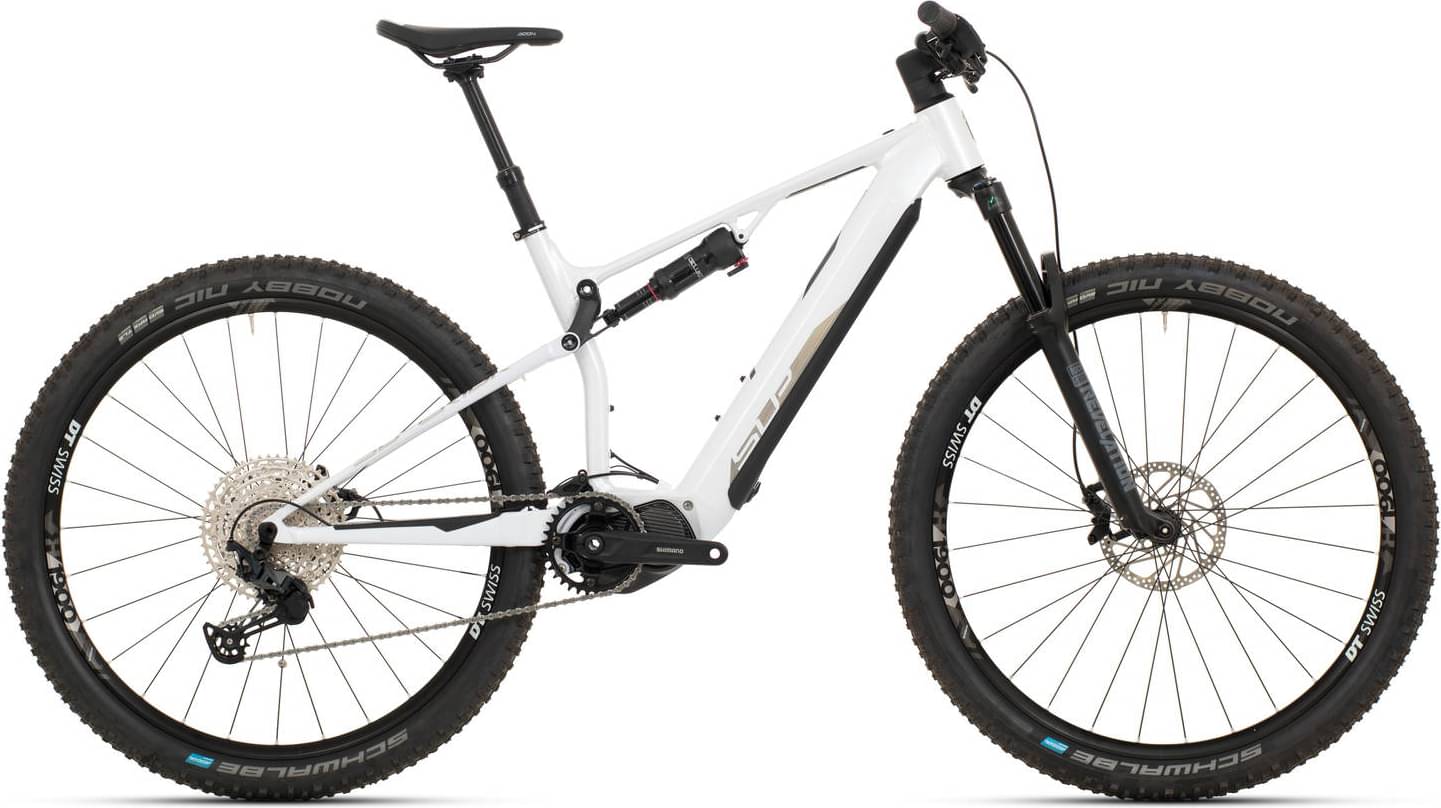

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Revelation RC
-
Groupset SLX, Deore -
Suspension Full -
Motor hub-drive -
Battery DARFON, 36V, 630 Wh, frame mount -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite MTB Trail SUE03-EP8, Advanced e-MTB Geometry, Travel 130 mm, SHIMANO STEPS ready, Prepared to 630Wh integrated battery, 3D alloy one piece link, Alloy swingarm, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox Revelation RC, Tapered, DebonAir, 15x110mm axle, 140mm travel
Rear Shock
RockShox Deluxe Select Plus, remote Lockout, external rebound, 2 position compression (Open/Lock), size 210x50mm, Bushing body for RockShox
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7100 Shadow Plus
Shift Levers
SHIMANO DEORE SL-M6100-IR RapidFire Plus, 12-speed
Cassette
SHIMANO CS-M6100-12, 10-51T
Crank
SHIMANO FC-E8000, 34T
Bottom Bracket
STEPS, press-fit
Chain
SHIMANO DEORE CN-M6100
Wheels
Rims
DT Swiss H 1900 Spline DB30; 12x148mm, CENTER LOCK, Tubeless, DT Swiss H 1900 Spline DB30; 15x110mm, CENTER LOCK, Tubeless
Tires
Schwalbe Nobby Nic Evo Super Trail, 29x2.60", ADDIX Speedgrip
Brakes
Brakes
SHIMANO BL-M6100/BR-M6120, hydraulic disc brake
Cockpit
Stem
ONE1 TDS-661 Alloy, 31.8mm, 0°
Handlebar
ONE1 Alloy, MTB AL-320BT, 3° upsweep, 9° backsweep, 20mm rise, 780mm, 31.8mm
Grips
ONE1 VLG-1907D2, ONE1 VLG-1962-11D2, Lock-On
Seat
Saddle
Saddle
Seatpost
ONE1 Alloy, MT171, dropper post, 30.9mm
Motor & Battery
Motor
Drive unit left cover for DUEP800
Battery
DARFON, 36V, 630 Wh, frame mount
Remote
SHIMANO SC-EM800, Clamp band
Charger
DARFON 4A Smart Plus charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 736 mm | 764 mm | 775 mm | 792 mm |
| Rake | 40 mm | 43 mm | 43 mm | 42 mm |
| Trail | 123 mm | 120 mm | 120 mm | 121 mm |
| Stack | 583 mm | 592 mm | 601 mm | 611 mm |
| Reach | 431 mm | 452 mm | 459 mm | 472 mm |
| Top Tube Length | 592 mm | 618 mm | 628 mm | 643 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1161 mm | 1189 mm | 1200 mm | 1217 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
eXF 9039 belongs to the Superior E Exf model. Superior released 16 e-bikes variations of this model so far. You can easily view all of the Superior E Exf e-bikes models from 2022, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
eXF 9039 components
Fork
Superior eXF 9039 2022 e-bike is equipped with the RockShox Revelation RC fork, and has 140mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Superior eXF 9039 e-bike has the RockShox Deluxe Select Plus model installed, and has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The eXF 9039 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The eXF 9039 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 160 cm – 200 cm (5.25 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the eXF 9039. Therefore, climbing or descending will be a breeze.
