Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON, 36V, 630 Wh, frame mount -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite MTB Trail SUE03-EP8, Advanced e-MTB Geometry, Travel 130 mm, SHIMANO STEPS ready, Prepared to 630Wh integrated battery, 3D alloy one piece link, Alloy swingarm, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
DT Swiss DT-F535 Tapered, 15x110mm axle, 140mm travel
Rear Shock
Bushing body for DT Swiss, DT Swiss R 535 ONE, Lockout, size 210x50mm
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100 Shadow Plus
Shift Levers
SHIMANO XT SL-M8100-IR RapidFire Plus, 12-speed
Cassette
SHIMANO CS-M6100-12, 10-51T
Crank
SHIMANO FC-E8000, 34T
Bottom Bracket
STEPS, press-fit
Chain
CHAIN SHIMANO CN-M6100
Wheels
Rims
DT Swiss H 1900 Spline 29; 12x148mm, CENTER LOCK, Tubeless, DT Swiss H 1900 Spline 29; 15x110mm, CENTER LOCK, Tubeless
Tires
Schwalbe Nobby Nic Evo Super Trail, 29x2.60", ADDIX Speedgrip
Brakes
Brakes
TEKTRO HD-EU830, hydraulic disc brake
Cockpit
Stem
ONE1 TDS-661 Alloy, 31.8mm, 0°
Handlebar
ONE1 Alloy, MTB AL-725, 3° upsweep, 7° backsweep, 20mm rise, 780mm, 31.8mm
Grips
ONE1 VLG-1907D2, ONE1 VLG-1962-11D2, Lock-On
Seat
Saddle
fizik Taiga
Seatpost
ONE1 Alloy, MT171, dropper post, 30.9mm
Motor & Battery
Motor
SHIMANO STEPS EP800, 36V, 250W, 85Nm, Drive unit left cover for DUEP800
Battery
DARFON, 36V, 630 Wh, frame mount
Remote
SHIMANO SC-EM800, Clamp band
Charger
DARFON 4A Smart Plus charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 736 mm | 764 mm | 775 mm | 792 mm |
| Rake | 40 mm | 43 mm | 43 mm | 42 mm |
| Trail | 123 mm | 120 mm | 120 mm | 121 mm |
| Stack | 583 mm | 592 mm | 601 mm | 611 mm |
| Reach | 431 mm | 452 mm | 459 mm | 472 mm |
| Top Tube Length | 592 mm | 618 mm | 628 mm | 643 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1161 mm | 1189 mm | 1200 mm | 1217 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
About this model

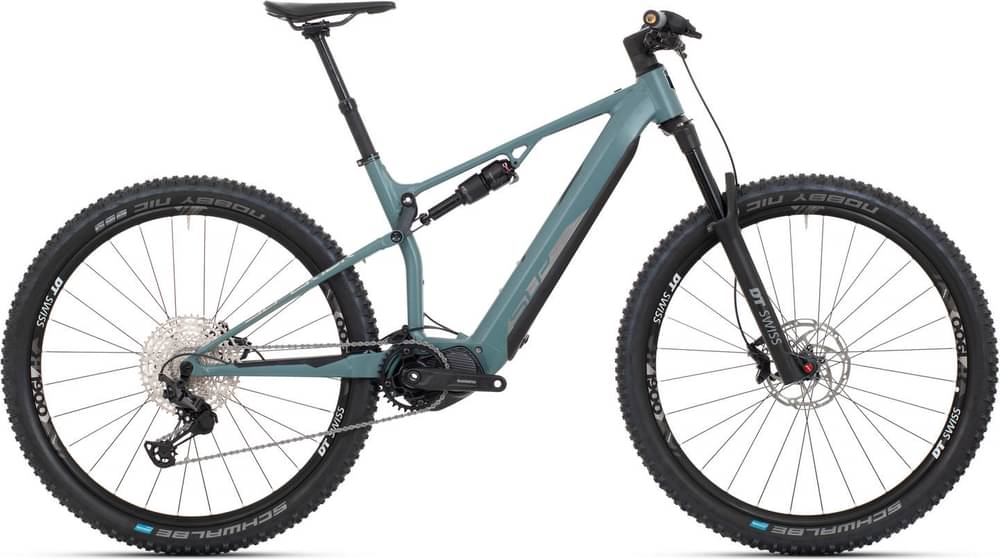

eXF 9049 R is a Superior E Exf model. Superior released 16 e-bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
eXF 9049 R weighs 22.3 kg (49.16 lbs) and is a bit lighter than the average. In other words, this model is 6.28% lighter than the average Trail e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
eXF 9049 R components
Rear Shock
The shock that’s installed on this e-bike is Bushing body for DT Swiss, with a travel distance of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The eXF 9049 R 2021 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Superior eXF 9049 R has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 160 cm – 200 cm (5.25 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Superior eXF 9049 R includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
