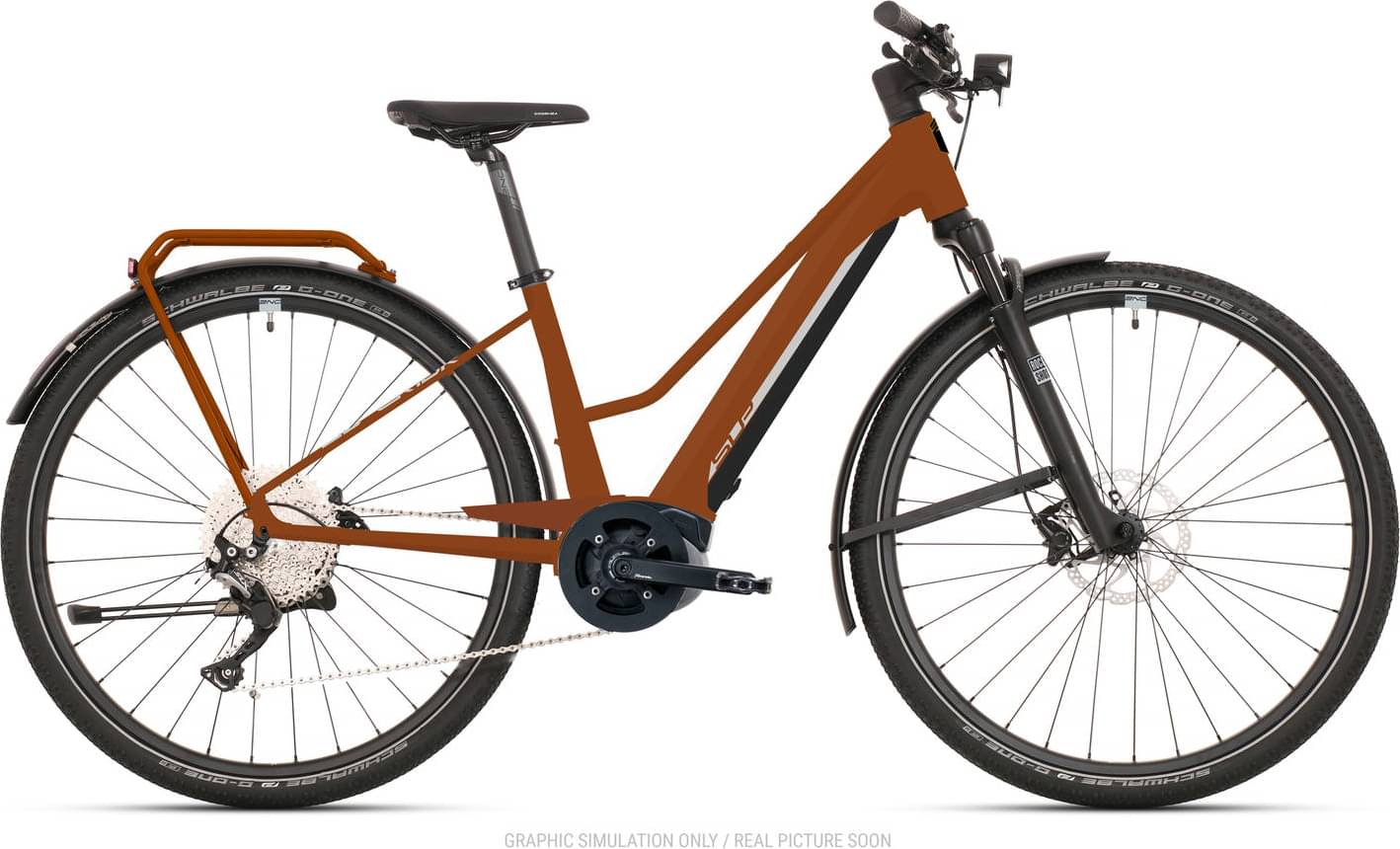

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork RST -
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery DARFON, 36V, 504 Wh, integrated -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
LG
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6, Touring Geometry, Smooth Welding, SHIMANO STEPS ready, NEW integrated battery, Inner Cable Routing
Suspension Fork
RST Volant, Tapered, 60mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100 Shadow
Shift Levers
SHIMANO ALIVIO SL-M3100-R RapidFire Plus, 9-speed
Cassette
SHIMANO CS-HG200-9, 11-36T
Crank
SHIMANO FC-E5000, 38T
Bottom Bracket
STEPS, press-fit
Chain
KMC E9s
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
Rims
Stars J26S, 32H
Spokes
Sapim Galvanized Black
Tires
Schwalbe G-One Bite, 28x2.00", reflective tape
Brakes
Brakes
SHIMANO BL-MT200/BR-MT200, hydraulic disc brake
Cockpit
Stem
ONE1 Python Alloy, 31.8mm, Adjustable
Handlebar
ONE1 Alloy, MTB AL-320BT, 3° upsweep, 15° backsweep, 20mm rise, 680mm, 31.8mm
Grips
Velo VLG-1777D2
Seat
Saddle
Selle Royal Vivo DRN
Seatpost
ONE1 Sport Alloy, SP C207, 30.9mm
Motor & Battery
Motor
SHIMANO STEPS E5000, 36V, 250W, 40Nm
Battery
DARFON, 36V, 504 Wh, integrated
Remote
SHIMANO SC-E5000, Clamp band
Charger
DARFON 2A Smart charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.51 mm |
| Bottom Bracket Height | 276 mm | 276 mm |
| Front Center | 680 mm | 688 mm |
| Rake | 46 mm | 45 mm |
| Trail | 86 mm | 87 mm |
| Stack | 623 mm | 623 mm |
| Reach | 404 mm | 413 mm |
| Top Tube Length | 588 mm | 598 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 457 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 140 mm | 140 mm |
| Chainstay Length | 453 mm | 453 mm |
| Wheelbase | 1126 mm | 1134 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |
About this model
eXR 6030 L Touring belongs to the Superior E Exr model. 28 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Touring e-bikes
Our math shows that the average cost of a dependable Touring e-bike is 2429$. However, even though the average price of a Touring e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
eXR 6030 L Touring components
Fork
The fork installed on this bike is the RST model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the eXR 6030 L Touring model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The eXR 6030 L Touring has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 2 sizes. They vary from 160 cm – 180 cm (5.25 ft – 5.91 ft). In conclusion, it won’t take much to find one that’s right for you.
