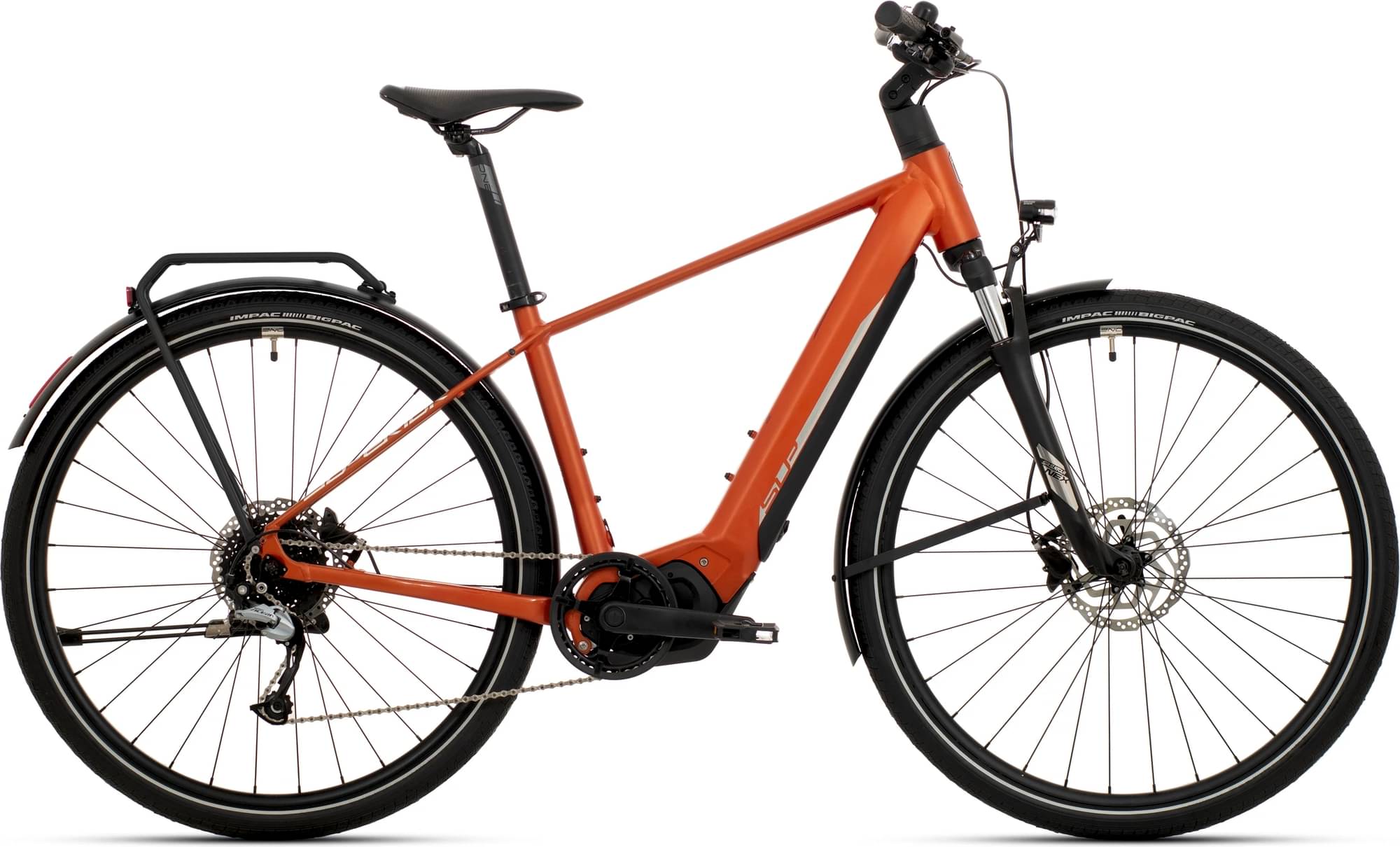

Superior eXR 6030 Touring 2023
2023 E-bike
Estimate price |
3,038$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST VOLANT -
Groupset Alivio -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery DARFON, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite, Advanced eMTB Geometry, SHIMANO STEPS ready, Integrated battery, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RST Volant, Tapered, QR Type, 60mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100, Shadow Design
Shift Levers
SHIMANO ALIVIO SL-M3100-R, RAPIDFIRE Plus, 9-speed
Cassette
SHIMANO CS-HG200, 9-speed, 11-36T
Crank
SHMANO FC-E5000
Bottom Bracket
STEPS, press-fit
Chain
KMC e9S
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CL, M9X100mm, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CL, M10x135mm, QR Type
Rims
STARS J26S, Disc, 32H
Spokes
SAPIM Galvanized Black
Tires
Schwalbe G-One Bite, RaceGuard, 50-622, Reflective Tape
Brakes
Brakes
SHIMANO MT200, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 31.8mm, Adjustable
Handlebar
ONE Alloy, 20mm rise, 680mm, 31.8mm
Headset
ACROS AZF-604, ZS56/28.6 - ZS56/40, BlockLock 120°
Seat
Saddle
Selle Royal Vivo
Seatpost
ONE Sport, Alloy, 30,9mm
Motor & Battery
Motor
SHIMANO STEPS E5000, 40Nm
Battery
DARFON, 504Wh
Charger
DARFON 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.34 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 683 mm | 703 mm | 723 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 86 mm | 86 mm | 86 mm |
| Stack | 601 mm | 601 mm | 601 mm |
| Reach | 408 mm | 428 mm | 448 mm |
| Top Tube Length | 587 mm | 607 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1123 mm | 1143 mm | 1163 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 179 cm | 189 cm |
| Rider Max Height | 181 cm | 191 cm | 200 cm |
Model Overview
eXR 6030 Touring is part of the Superior E Exr model. There are 38 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Superior eXR 6030 L Touring 2023 is the most economical model, with a starting price of 2805$. Superior eXR 6090 L Touring 2023 on the other hand costs 4023$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Touring e-bikes average price
Our math shows that the average cost of a dependable Touring e-bike is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 2805$. Doing a quick comparison, we notice that eXR 6030 Touring price is 15.48% more expensive than the average cost of a Touring e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Superior eXR 6030 Touring 2023 e-bike is equipped with the RST VOLANT fork, and has mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on eXR 6030 Touring are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Superior eXR 6030 Touring is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 200 cm (5.41 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
