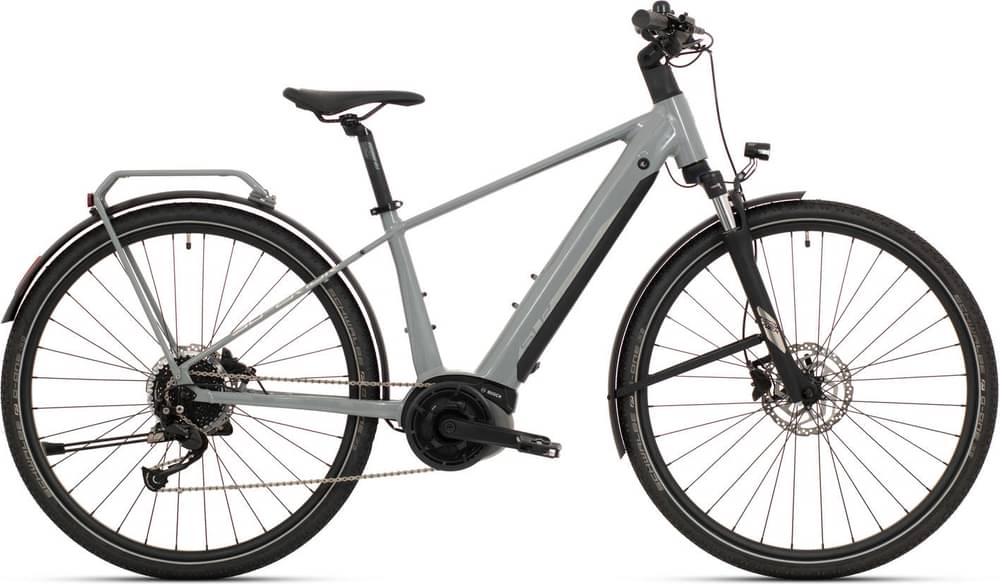

Superior eXR 6050 B Touring 2021
2021 E-bike
Weight | 24.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH PowerTube 36V, 500Wh, integrated -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 170cm
LG
180cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6, Comfort Geometry, Smooth Welding, Bosch system ready, integrated battery, Inner Cable Routing
Suspension Fork
SR Suntour NEX-E25NLO, Tapered, Coil, QR Type, 63mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100 Shadow
Shift Levers
SHIMANO ALIVIO SL-M3100-R RapidFire Plus,9-speed
Cassette
SHIMANO CS-HG200-9, 11-36T
Crank
ONE1 EC33-BH3-F9-BNI-L/R, 38T
Bottom Bracket
Bosch, press-fit
Chain
KMC E9s
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
Rims
Stars J26S, 32H
Spokes
Sapim Galvanized Black
Tires
Schwalbe G-One Bite, 28x2.00", reflective tape
Brakes
Brakes
SHIMANO BL-MT200/BR-MT200, hydraulic disc brake
Cockpit
Stem
ONE1 Python Alloy, 31.8mm, Adjustable
Handlebar
ONE1 Alloy, MTB AL-320BT, 3° upsweep, 15° backsweep, 20mm rise, 680mm, 31.8mm
Grips
Velo VLG-1777D2
Seat
Saddle
Selle Royal Vivo HRN
Seatpost
ONE1 Sport Alloy, SP C207, 30.9mm
Motor & Battery
Motor
BOSCH ActiveLine Plus, 36V, 250W, 50Nm
Battery
BOSCH PowerTube 36V, 500Wh, integrated
Remote
BOSCH Purion Anthracite, Clamp band
Charger
BOSCH 2A Compact charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 683 mm | 703 mm | 723 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 86 mm | 86 mm | 86 mm |
| Stack | 607 mm | 607 mm | 607 mm |
| Reach | 406 mm | 426 mm | 446 mm |
| Top Tube Length | 587 mm | 607 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 492 mm | 492 mm | 492 mm |
| Wheelbase | 1169 mm | 1189 mm | 1209 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 180 cm | 189 cm |
| Rider Max Height | 170 cm | 191 cm | 200 cm |
Model Overview
eXR 6050 B Touring is part of the Superior E Exr model. 28 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Touring e-bikes
According to our math, the average price for a trustworthy Touring e-bike is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Touring e-bikes
Touring e-bikes weigh an average of 25.55 kg (56.33 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 24.4 kg (53.79 lbs), Superior e-bike is slightly lighter than average. To sum up, it’s 4.71% lighter than the average weight of Touring e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
eXR 6050 B Touring components
Fork
Superior eXR 6050 B Touring 2021 e-bike is equipped with the SunTour NEX fork, and has mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the eXR 6050 B Touring model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Superior eXR 6050 B Touring has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
eXR 6050 B Touring comes in 3 sizes, that range from 160 cm – 200 cm (5.25 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
