Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH PowerTube 36V, 500Wh, integrated -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
LG
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6, Comfort Geometry, Smooth Welding, Bosch system ready, integrated battery, Inner Cable Routing
Suspension Fork
SR Suntour NEX-E25NLO, Tapered, Coil, QR Type, 63mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100 Shadow
Shift Levers
SHIMANO ALIVIO SL-M3100-R RapidFire Plus,9-speed
Cassette
SHIMANO CS-HG200-9, 11-36T
Crank
ONE1 EC33-BH3-F9-BNI-L/R, 38T
Bottom Bracket
Bosch, press-fit
Chain
KMC E9s
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
Rims
Stars J26S, 32H
Spokes
Sapim Galvanized Black
Tires
Schwalbe G-One Bite, 28x2.00", reflective tape
Brakes
Brakes
SHIMANO BL-MT200/BR-MT200, hydraulic disc brake
Cockpit
Stem
ONE1 Python Alloy, 31.8mm, Adjustable
Handlebar
ONE1 Alloy, MTB AL-320BT, 3° upsweep, 15° backsweep, 20mm rise, 680mm, 31.8mm
Grips
Velo VLG-1777D2
Seat
Saddle
Selle Royal Vivo DRN
Seatpost
ONE1 Sport Alloy, SP C207, 30.9mm
Motor & Battery
Motor
BOSCH ActiveLine Plus, 36V, 250W, 50Nm
Battery
BOSCH PowerTube 36V, 500Wh, integrated
Remote
BOSCH Purion Anthracite, Clamp band
Charger
BOSCH 2A Compact charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.58 mm |
| Bottom Bracket Height | 276 mm | 276 mm |
| Front Center | 670 mm | 680 mm |
| Rake | 46 mm | 46 mm |
| Trail | 80 mm | 80 mm |
| Stack | 645.9 mm | 645.9 mm |
| Reach | 397.6 mm | 407.6 mm |
| Top Tube Length | 588 mm | 598 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 457 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 160 mm |
| Chainstay Length | 498 mm | 498 mm |
| Wheelbase | 1162 mm | 1172 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |

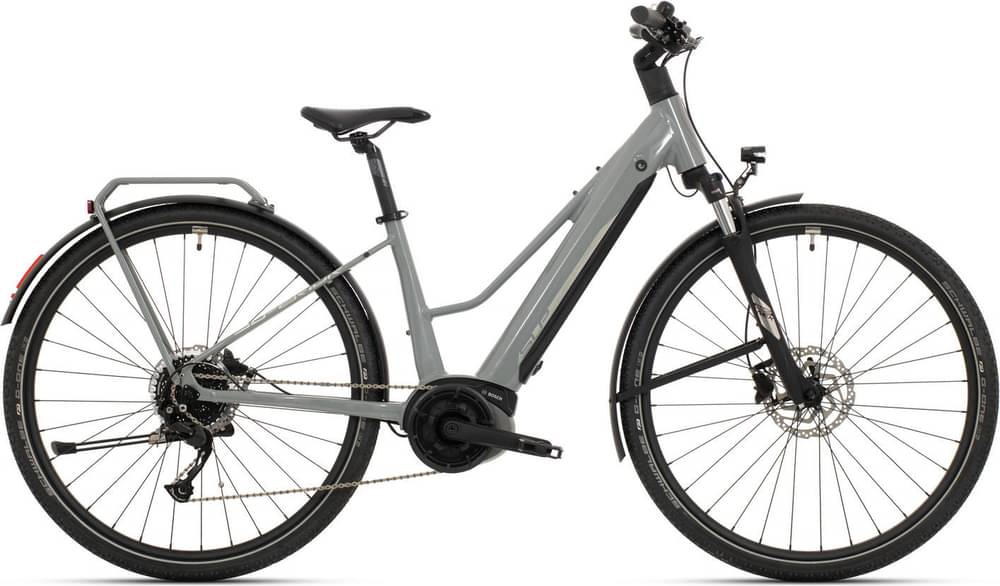

About this model
eXR 6050 BL Touring completes the Superior E Exr model. There are 28 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Touring e-bikes average price
If you want an acceptable Touring e-bike you should know that the average price is 2429$. However, you could also get a good Touring e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on eXR 6050 BL Touring are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
eXR 6050 BL Touring comes in 2 sizes, that range from 160 cm – 180 cm (5.25 ft – 5.91 ft). In short, you can easily find one that suits you.
