Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Alivio -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery DARFON, 36V, 504 Wh, integrated -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 170cm
LG
180cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6, Touring Geometry, Smooth Welding, SHIMANO STEPS ready, NEW integrated battery, Inner Cable Routing
Suspension Fork
SR Suntour NEX-E25NLO, Tapered, Coil, QR Type, 63mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100 Shadow
Shift Levers
SHIMANO ALIVIO SL-M3100-R RapidFire Plus,9-speed
Cassette
SHIMANO CS-HG200-9, 11-36T
Crank
ONE1 ET39-F13-SML-L/R, 38T
Bottom Bracket
STEPS, press-fit
Chain
KMC E9s
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
Rims
Stars J26S, 32H
Spokes
Sapim Galvanized Black
Tires
Schwalbe G-One Bite, 28x2.00", reflective tape
Brakes
Brakes
SHIMANO BL-MT200/BR-MT200, hydraulic disc brake
Cockpit
Stem
ONE1 Python Alloy, 31.8mm, Adjustable
Handlebar
ONE1 Alloy, MTB AL-320BT, 3° upsweep, 15° backsweep, 20mm rise, 680mm, 31.8mm
Grips
Velo VLG-1777D2
Seat
Saddle
Selle Royal Vivo HRN
Seatpost
ONE1 Sport Alloy, SP C207, 30.9mm
Motor & Battery
Motor
SHIMANO STEPS E6100, 36V, 250W, 60Nm
Battery
DARFON, 36V, 504 Wh, integrated
Remote
SHIMANO SC-E5000, Clamp band
Charger
DARFON 2A Smart Plus charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 684 mm | 703 mm | 724 mm |
| Rake | 46 mm | 45 mm | 46 mm |
| Trail | 86 mm | 87 mm | 86 mm |
| Stack | 607 mm | 607 mm | 607 mm |
| Reach | 406 mm | 426 mm | 446 mm |
| Top Tube Length | 587 mm | 607 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1124 mm | 1143 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 180 cm | 189 cm |
| Rider Max Height | 170 cm | 191 cm | 200 cm |
Model Overview

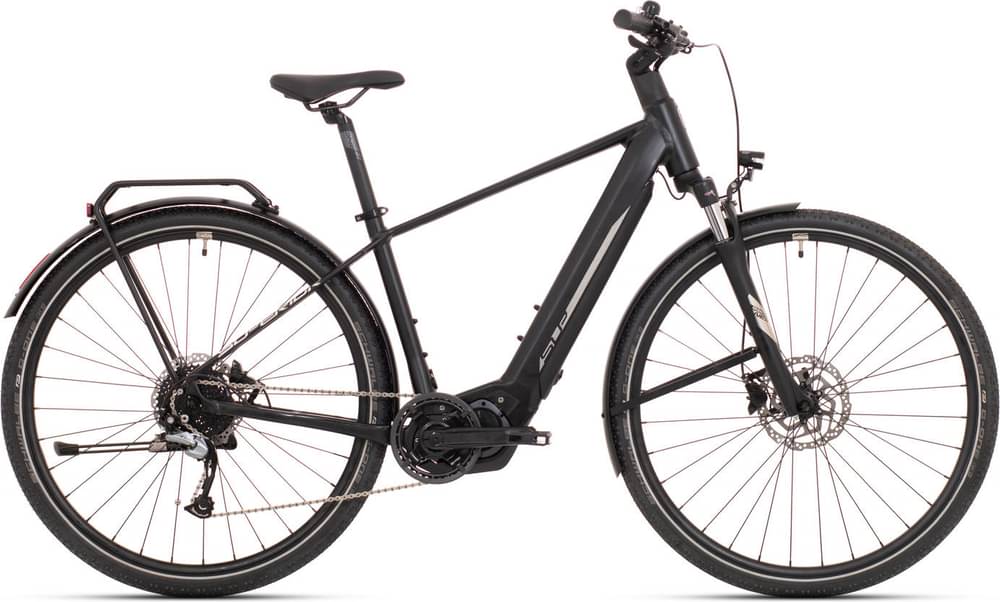

eXR 6050 Touring is a Superior E Exr model. There are 28 e-bikes that carry this model name. You can easily view all of the Superior E Exr e-bikes models from 2021, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Touring e-bikes
Our math shows that the average cost of a dependable Touring e-bike is 2429$. However, even though the average price of a Touring e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Touring e-bikes average weight
If we make a quick analysis of the average weight of a Touring e-bike, we get 25.55 kg (56.33 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Superior eXR 6050 Touring it’s weighing 23.8 kg (52.47 lbs). At this weight, is a bit lighter than average. To sum up, it’s 7.35% lighter than the average weight of Touring e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
eXR 6050 Touring components
Fork
Superior eXR 6050 Touring 2021 e-bike is equipped with the SunTour NEX fork, and has mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on eXR 6050 Touring are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Superior eXR 6050 Touring is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
eXR 6050 Touring comes in 3 sizes, that range from 160 cm – 200 cm (5.25 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
