Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery DARFON, 36V, 504 Wh, integrated -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
LG
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite, Touring Geometry, Smooth Welding, SHIMANO STEPS ready, NEW integrated battery, Inner Cable Routing
Suspension Fork
SR Suntour NEX-E25NLO, Tapered, Coil, QR Type, 63mm travel
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M4120 Shadow
Shift Levers
SHIMANO DEORE SL-M4100-R RapidFire Plus, 10-speed
Cassette
SHIMANO CS-M4100-10, 11-42T
Crank
SHIMANO FC-E6100, 38T
Bottom Bracket
STEPS, press-fit
Chain
KMC e10S
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-M4050, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-MT400-B, 32H, CENTER LOCK, 12x148mm THRU Type AXLE
Rims
Stars J26S, 32H
Spokes
Sapim Galvanized Black
Tires
Schwalbe G-One Bite, 28x2.00", reflective tape
Brakes
Brakes
TEKTRO HD-EU815, hydraulic disc brake
Cockpit
Stem
ONE1 TDS-661 Alloy, 31.8mm, 0°
Handlebar
ONE1 Alloy, MTB AL-725, 3° upsweep, 7° backsweep, 20mm rise, 720mm, 31.8mm
Grips
Velo VLG-1777D2
Seat
Saddle
Selle Royal LIFT
Seatpost
ONE1 Sport Alloy, SP C207, 30.9mm
Motor & Battery
Motor
SHIMANO STEPS E6100, 36V, 250W, 60Nm
Battery
DARFON, 36V, 504 Wh, integrated
Remote
SHIMANO SC-E5000, Clamp band
Charger
DARFON 2A Smart Plus charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.45 mm |
| Bottom Bracket Height | 276 mm | 276 mm |
| Front Center | 674 mm | 688 mm |
| Rake | 47 mm | 46 mm |
| Trail | 85 mm | 86 mm |
| Stack | 607 mm | 607 mm |
| Reach | 404 mm | 419 mm |
| Top Tube Length | 583 mm | 598 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 457 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 120 mm |
| Chainstay Length | 453 mm | 453 mm |
| Wheelbase | 1120 mm | 1134 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |
About this model

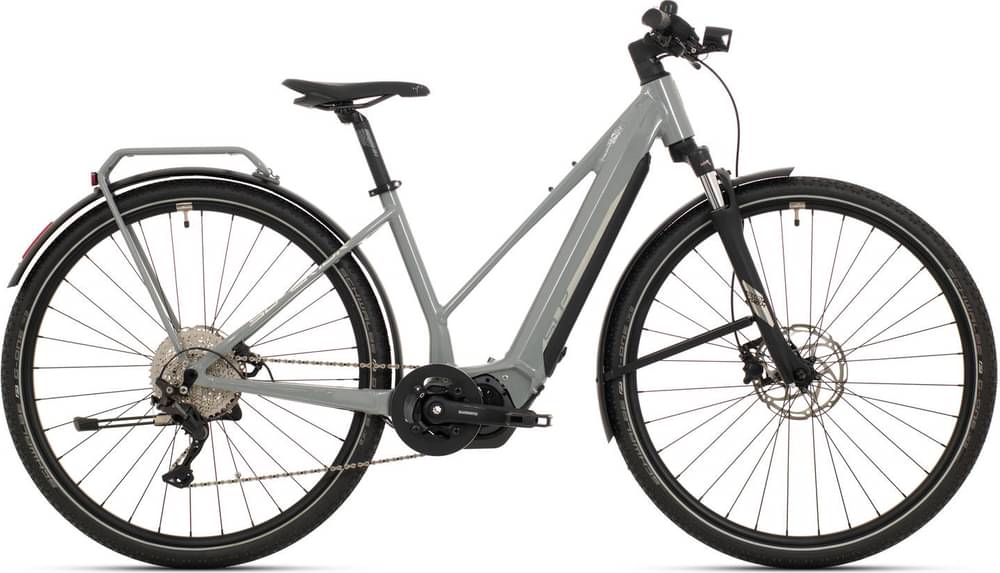

eXR 6070 L Touring is a Superior E Exr model. 28 e-bikes variations carry this model name so far. You can easily view all of the Superior E Exr e-bikes models from 2021, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Touring e-bikes
If you want to purchase a solid Touring e-bike, it is important to know that the average cost is 2429$. However, this doesn’t mean that if you spend less money on a Touring e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The eXR 6070 L Touring comes factory-installed with the SunTour NEX fork. This has a travel range of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on eXR 6070 L Touring are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eXR 6070 L Touring comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 160 cm – 180 cm (5.25 ft – 5.91 ft). In conclusion, you won’t have a problem finding one that suits you.
