Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery BOSCH PowerTube 36V, 625Wh, integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 170cm
LG
180cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6, Comfort Geometry, Smooth Welding, Bosch system ready, integrated battery, Inner Cable Routing
Suspension Fork
RockShox Paragon Gold RL, Tapered, SoloAir, 15x110mm axle, 65mm travel
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100 Shadow Plus
Shift Levers
SHIMANO DEORE SL-M6100-IR RapidFire Plus, 12-speed
Cassette
SHIMANO CS-M6100-12, 10-51T
Crank
ONE1 EC33-BH3-F9-BNI-L/R, 38T
Bottom Bracket
Bosch, press-fit
Chain
SHIMANO DEORE CN-M6100
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-MT401, 32H, CENTER LOCK, M10x135mm, QR Type
Rims
Stars J26S, 32H
Spokes
Sapim Leader, Stainless Black
Tires
Schwalbe G-One Bite, 28x2.00", reflective tape
Brakes
Brakes
SHIMANO BL-M4100/BR-MT410, hydraulic disc brake, SHIMANO BL-M4100/BR-MT420, hydraulic disc brake
Cockpit
Stem
ONE1 TDS-661 Alloy, 31.8mm, 0°
Handlebar
ONE1 Alloy, MTB AL-320BT, 10° backsweep, 20mm rise, 720mm, 31.8mm
Grips
Velo VLG-1777D2
Seat
Saddle
Selle Royal LIFT
Seatpost
ONE1 Sport Alloy, SP C207, 30.9mm
Motor & Battery
Motor
BOSCH PerformanceLine Cruise, 36V, 250W, 65Nm
Battery
BOSCH PowerTube 36V, 625Wh, integrated
Remote
BOSCH Purion Anthracite, Clamp band
Charger
BOSCH 2A Compact charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 683 mm | 703 mm | 723 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 86 mm | 86 mm | 86 mm |
| Stack | 607 mm | 607 mm | 607 mm |
| Reach | 406 mm | 426 mm | 446 mm |
| Top Tube Length | 587 mm | 607 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 492 mm | 492 mm | 492 mm |
| Wheelbase | 1169 mm | 1189 mm | 1209 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 180 cm | 189 cm |
| Rider Max Height | 170 cm | 191 cm | 200 cm |
Model Overview

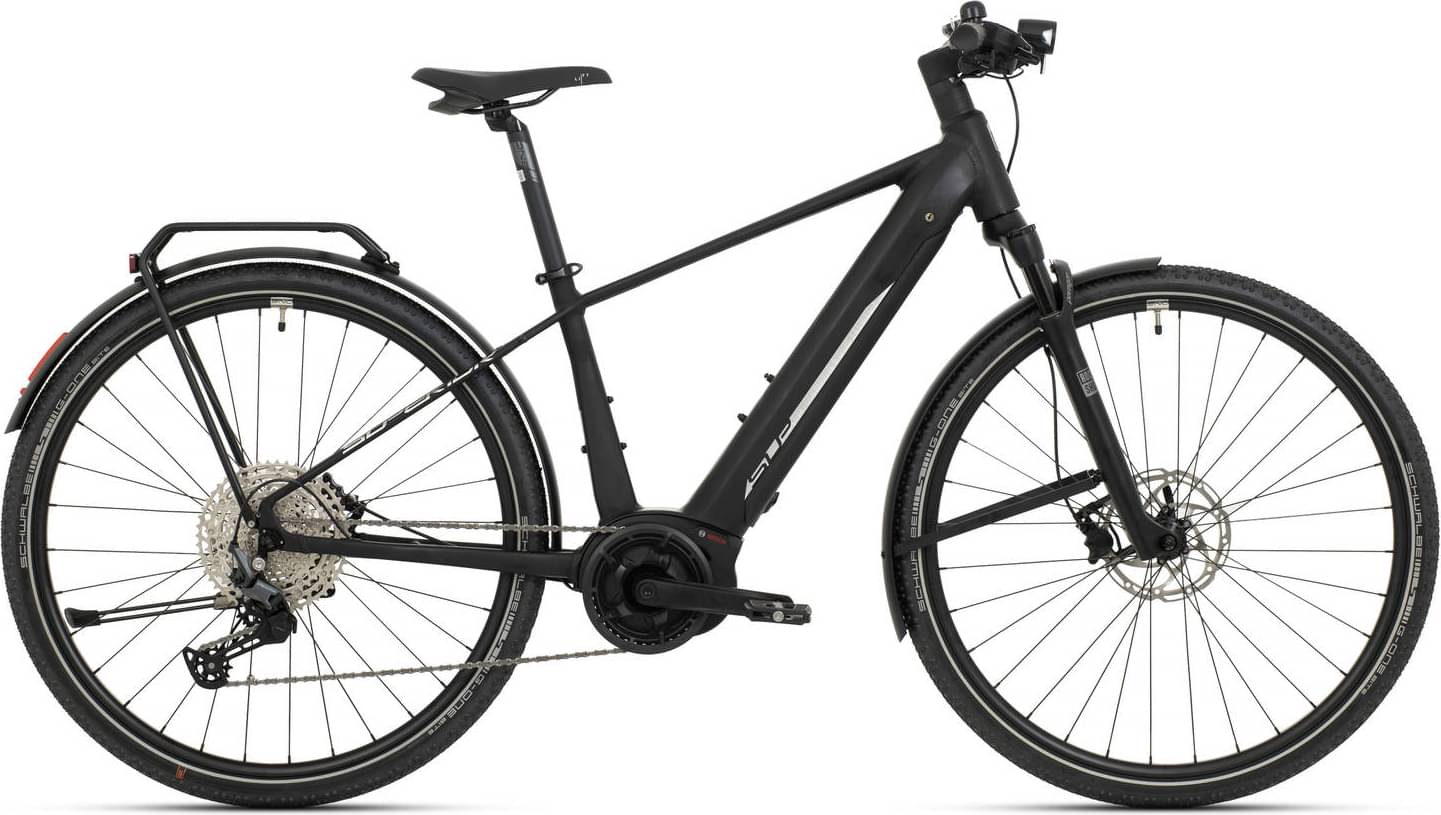

eXR 6090 B Touring is part of the Superior E Exr model. There are 28 e-bikes that carry this model name. You can easily view all of the Superior E Exr e-bikes models from 2022, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Touring e-bikes average price
According to our calculations, the average cost of a Touring e-bike that is reliable is 2429$. However, you could also get a good Touring e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the RockShox Paragon Gold RL model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the eXR 6090 B Touring model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Superior eXR 6090 B Touring has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Superior eXR 6090 B Touring e-bike has 3 sizes, in the range of 160 cm – 200 cm (5.25 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
