Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery DARFON, 36V, 504 Wh, integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
LG
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite, Touring Geometry, Smooth Welding, SHIMANO STEPS ready, NEW integrated battery, Inner Cable Routing
Suspension Fork
RockShox Paragon Gold RL, Tapered, SoloAir, 65mm travel
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100 Shadow Plus
Shift Levers
SHIMANO DEORE SL-M6100-R RapidFire Plus, 12-speed
Cassette
SHIMANO CS-M6100-12, 10-51T
Crank
SHIMANO FC-E6100, 34T
Bottom Bracket
STEPS, press-fit
Chain
CHAIN SHIMANO CN-M6100
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-M4050, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-MT410, 32H, CENTER LOCK, 12x148mm THRU Type AXLE
Rims
Stars J26S, 32H
Spokes
Sapim Leader, Stainless Black
Tires
Schwalbe G-One Bite, 28x2.00", reflective tape
Brakes
Brakes
TEKTRO HD-EU815, hydraulic disc brake
Cockpit
Stem
ONE1 TDS-661 Alloy, 31.8mm, 0°
Handlebar
ONE1 Alloy, MTB AL-725, 3° upsweep, 7° backsweep, 20mm rise, 720mm, 31.8mm
Grips
Velo VLG-1777D2
Seat
Saddle
Selle Royal LIFT
Seatpost
ONE1 Sport Alloy, SP C207, 30.9mm
Motor & Battery
Motor
SHIMANO STEPS E7000, 36V, 250W, 60Nm
Battery
DARFON, 36V, 504 Wh, integrated
Remote
SHIMANO SC-E5000, Clamp band
Charger
DARFON 2A Smart Plus charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.45 mm |
| Bottom Bracket Height | 276 mm | 276 mm |
| Front Center | 674 mm | 688 mm |
| Rake | 47 mm | 46 mm |
| Trail | 85 mm | 86 mm |
| Stack | 607 mm | 607 mm |
| Reach | 404 mm | 419 mm |
| Top Tube Length | 583 mm | 598 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 457 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 120 mm |
| Chainstay Length | 453 mm | 453 mm |
| Wheelbase | 1120 mm | 1134 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |
About this model

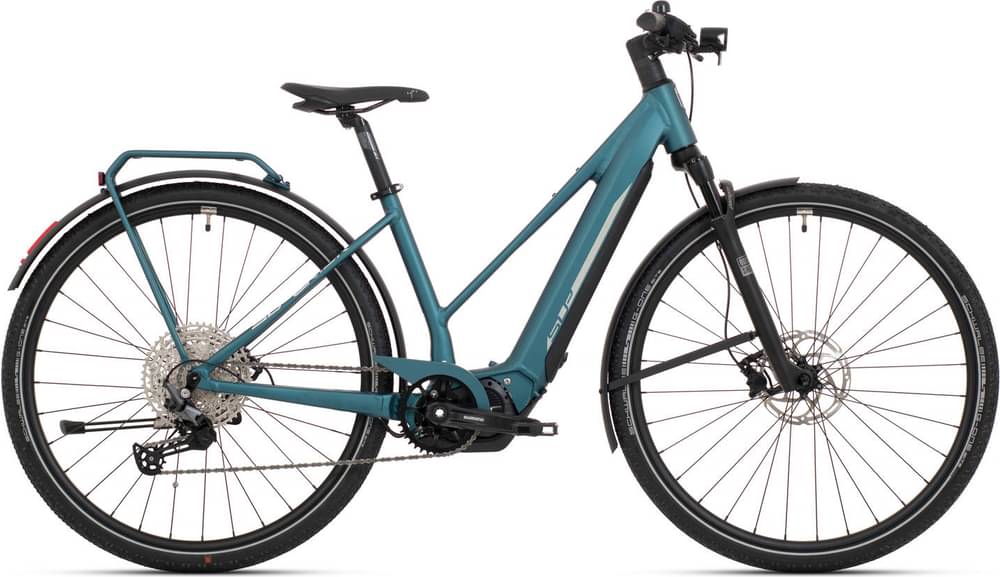

eXR 6090 L Touring completes the Superior E Exr model. 28 e-bikes variations carry this model name so far. Take a sneak peek at all Superior E Exr e-bikes models from 2021, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Touring e-bikes
If you want an acceptable Touring e-bike you should know that the average price is 2429$. However, even though the average price of a Touring e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The eXR 6090 L Touring comes factory-installed with the RockShox Paragon Gold RL fork. This has a travel range of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The eXR 6090 L Touring 2021 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eXR 6090 L Touring comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Superior eXR 6090 L Touring e-bike has 2 sizes, in the range of 160 cm – 180 cm (5.25 ft – 5.91 ft). In short, you can easily find one that suits you.
