Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset SLX, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery DARFON, 36V, 504 Wh, integrated -
Drivetrain 1 × 11 -
Brakes Rim
Sizing
Recommended size guide.
MD
160cm - 170cm
LG
180cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite, Sport eMTB Geometry, Smooth Welding, SHIMANO STEPS ready, NEW integrated battery, SR dropout, Boost 12x148 mm, Inner Cable Routing, dropper seatpost ready
Suspension Fork
RockShox Paragon Gold RL, 1-1/8", Air, 65mm travel, RockShox Paragon Gold RL, Tapered, SoloAir, 65mm travel
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7000 Shadow Plus
Shift Levers
SHIMANO SLX SL-M7000-R RapidFire Plus, 11-speed
Cassette
SunRace CS-MS8-11, 11-46T
Crank
SHIMANO FC-E6100, 38T
Bottom Bracket
STEPS, press-fit
Chain
KMC e11T
Pedals
Marwi SP-610
Wheels
Front Hub
SHIMANO HB-M4050, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-MT400-B, 32H, CENTER LOCK, 12x148mm THRU Type AXLE
Rims
Stars J20S, 32H
Spokes
Sapim Leader, Stainless Black
Tires
Schwalbe G-One Bite, 28x2.00", reflective tape
Cockpit
Stem
ONE1 TDS-661 Alloy, 31.8mm, 0°
Handlebar
ONE1 Alloy, MTB AL-325BT, 6° upsweep, 9° backsweep, 25mm rise, 660mm, 31.8mm
Grips
Velo VLG-1777D2
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
ONE1 Sport Alloy, SP C207, 30.9mm
Motor & Battery
Motor
SHIMANO STEPS E7000, 36V, 250W, 60Nm
Battery
DARFON, 36V, 504 Wh, integrated
Charger
DARFON 2A Smart charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.34 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 683 mm | 703 mm | 723 mm |
| Rake | 46 mm | -263 mm | 46 mm |
| Trail | 86 mm | 857 mm | 86 mm |
| Stack | 601 mm | 601 mm | 601 mm |
| Reach | 408 mm | 428 mm | 448 mm |
| Top Tube Length | 587 mm | 607 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | ° | 68 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1123 mm | 1143 mm | 1163 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 180 cm | 189 cm |
| Rider Max Height | 170 cm | 191 cm | 200 cm |
Model Overview

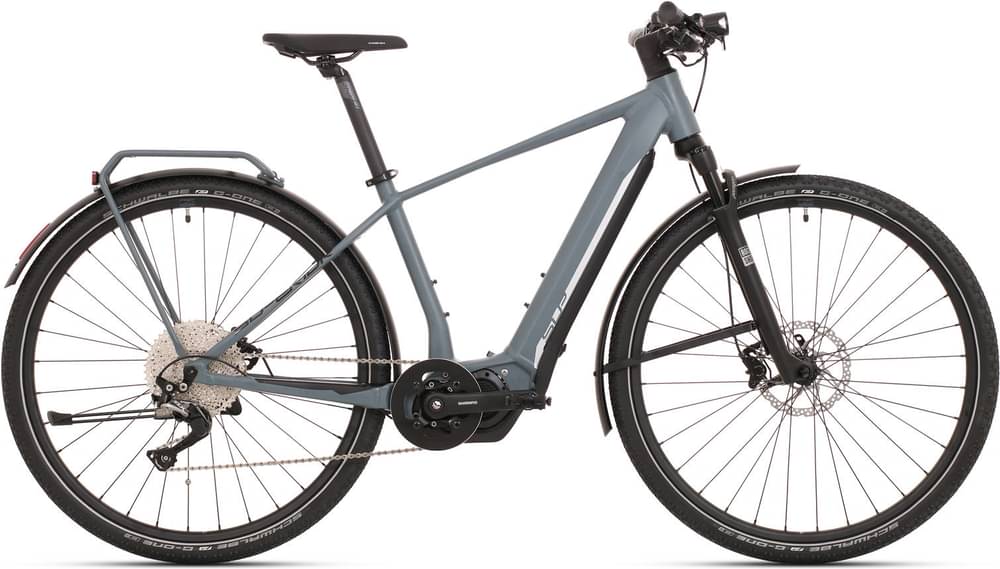

eXR 6090 TOURING is part of the Superior E Exr model. Superior released 28 e-bikes variations of this model so far. Take a sneak peek at all Superior E Exr e-bikes models from 2020, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Touring e-bikes average price
If you want to purchase a solid Touring e-bike, it is important to know that the average cost is 2429$. However, this doesn’t mean that if you spend less money on a Touring e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Touring e-bikes average weight
If we make a quick analysis of the average weight of a Touring e-bike, we get 25.55 kg (56.33 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 22.7 kg (50.04 lbs), the eXR 6090 TOURING model is considerably lighter than average. To sum up, it’s 12.56% lighter than the average weight of Touring e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Superior eXR 6090 TOURING 2020 e-bike is equipped with the RockShox Paragon Gold RL fork, and has mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The eXR 6090 TOURING 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The eXR 6090 TOURING has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 160 cm – 200 cm (5.25 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
