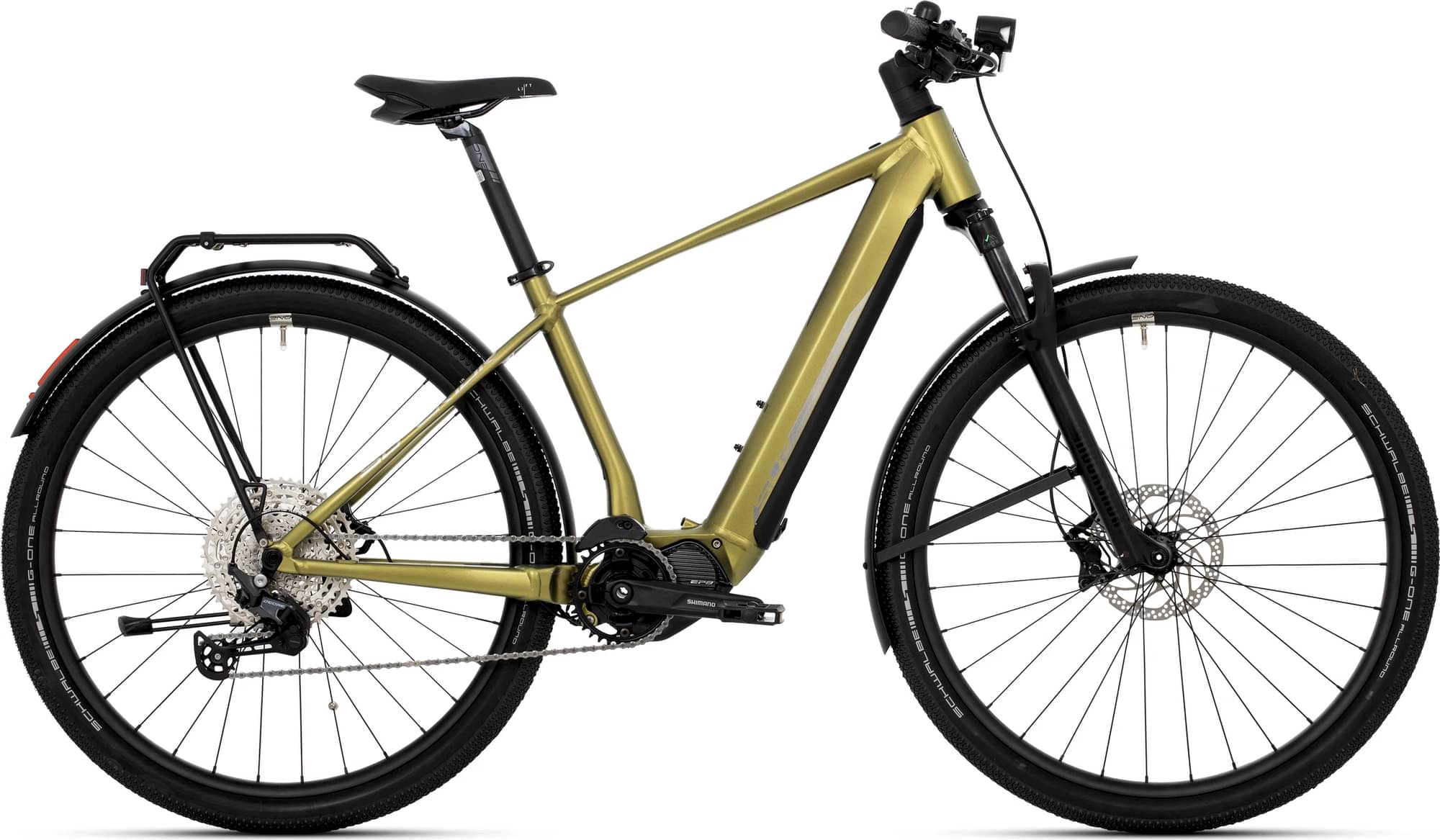

Superior eXR 6090 Touring 2023
2023 E-bike
Estimate price |
4,357$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RockShox Judy Silver TK -
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON, 504Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite, Advanced eMTB Geometry, SHIMANO STEPS ready, Integrated battery, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox Judy Silver TK, Tapered, SoloAir, 15x110mm axle, 100mm travel
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100, Shadow Plus Design
Shift Levers
SHIMANO DEORE SL-M6100-IR, RAPIDFIRE Plus, 12speed
Cassette
SHIMANO DEORE CS-M6100, 12-speed, 10-51T
Crank
SHMANO FC-EM600
Bottom Bracket
STEPS, press-fit
Chain
SHIMANO DEORE CN-M6100
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-MT410-B, 32H, CL, 15x110mm, THRU Type AXLE
Rear Hub
SHIMANO FH-MT410-B, 32H, CL, 12x148mm, THRU Type AXLE
Rims
STARS J30D, Disc, 32H
Spokes
SAPIM Leader, Stainless Black
Tires
Schwalbe G-One Allround Performance, 29x2.25
Brakes
Brakes
SHIMANO MT420, 4 piston, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 31.8mm, 0°
Handlebar
ONE Alloy, 20mm rise, 720mm, 31.8mm
Headset
ACROS AZX-1051, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°
Seat
Saddle
Selle Royal Vivo
Seatpost
ONE Sport, Alloy, 30,9mm
Motor & Battery
Motor
SHIMANO STEPS EP6, 85Nm
Battery
DARFON, 504Wh
Charger
DARFON 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.34 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 683 mm | 703 mm | 723 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 86 mm | 86 mm | 86 mm |
| Stack | 601 mm | 601 mm | 601 mm |
| Reach | 408 mm | 428 mm | 448 mm |
| Top Tube Length | 587 mm | 607 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1123 mm | 1143 mm | 1163 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 179 cm | 189 cm |
| Rider Max Height | 181 cm | 191 cm | 200 cm |
Model Overview
eXR 6090 Touring belongs to the Superior E Exr model. 38 e-bikes variations carry this model name so far. Take a sneak peek at all Superior E Exr e-bikes models from 2023, by clicking here.
Model range prices
Superior eXR 6030 L Touring 2023 is the cheapest e-bike model and costs 2805$. Superior eXR 6090 L Touring 2023 is the most expensive one and costs 4023$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Touring e-bikes average price
Our math shows that the average cost of a dependable Touring e-bike is 2429$. However, even if your budget is less than the average, you might still be able to get a top-quality Touring e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Superior eXR 6090 Touring price was 4023$. Comparing this to the average Touring e-bike price, we see that the price is 65.62% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The RockShox Judy Silver TK is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on eXR 6090 Touring are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The eXR 6090 Touring has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Superior eXR 6090 Touring e-bike has 3 sizes, in the range of 165 cm – 200 cm (5.41 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
