Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery DARFON, 36V, 504 Wh, integrated -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
160cm - 170cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite MTB Trail SUE03, Advanced e-MTB Geometry, Travel 130mm, SHIMANO STEPS ready, NEW integrated battery, 3D alloy one pice link, Alloy swingarm, SR dropout, Boost 12x148mm, Inner cable routing, Dropped seat post ready, Alu X6 Ultralite MTB Trail SUE03, Advanced e-MTB Geometry, Travel 130 mm, SHIMANO STEPS ready, NEW integrated battery, 3D alloy one piece link, Alloy swingarm, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox Recon RL, Tapered, SoloAir, 15x110mm axle, 140mm travel, RockShox Recon RL, Taperedm SoloAir, 15x110mm axle, 140mm travel
Rear Shock
RockShox Deluxe Select Plus, remote Lockout, external rebound, 2 position compression (Open/Lock), size 210x50mm
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7000 Shadow Plus
Shift Levers
SHIMANO SLX SL-M7000-IR RapidFire Plus, 11-speed
Cassette
SunRace CS-MS8-11, 11-46T
Crank
SHIMANO FC-E8000, 34T
Bottom Bracket
STEPS, press-fit
Chain
KMC e11T
Wheels
Front Hub
SHIMANO ALIVIO HB-MT400, 32H, CENTER LOCK, 15x110mm THRU Type AXLE
Rear Hub
SHIMANO FH-MT400-B, 32H, CENTER LOCK, 12x148mm THRU Type AXLE
Rims
Stars J26S, 32H
Spokes
Sapim Leader, Stainless Black
Tires
WTB Trail Boss TCS Light/Fast Rolling, 29x2.40"
Brakes
Brakes
TEKTRO HD-M745, hydraulic disc brake
Cockpit
Stem
ONE1 TDS-661 Alloy, 31.8mm, 0°
Handlebar
ONE1 Alloy, MTB AL-325BT, 6° upsweep, 9° backsweep, 25mm rise, 720mm, 31.8mm
Grips
ESI Chunky silicone grips
Seat
Saddle
Fizik Vesta
Seatpost
ONE1 Alloy, MT171, dropper post, 30.9mm
Motor & Battery
Motor
SHIMANO STEPS E8000, 36V, 250W, 70Nm
Battery
DARFON, 36V, 504 Wh, integrated
Charger
DARFON 2A Smart charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 354 mm | 354 mm |
| Front Center | 736 mm | 764 mm |
| Rake | 43 mm | 43 mm |
| Trail | 120 mm | 120 mm |
| Stack | 583 mm | 592 mm |
| Reach | 428 mm | 452 mm |
| Top Tube Length | 592 mm | 618 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 431 mm |
| Head Tube Angle | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm |
| Chainstay Length | 426 mm | 426 mm |
| Wheelbase | 1161 mm | 1189 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm |
| Rider Max Height | 170 cm | 170 cm |
About this model

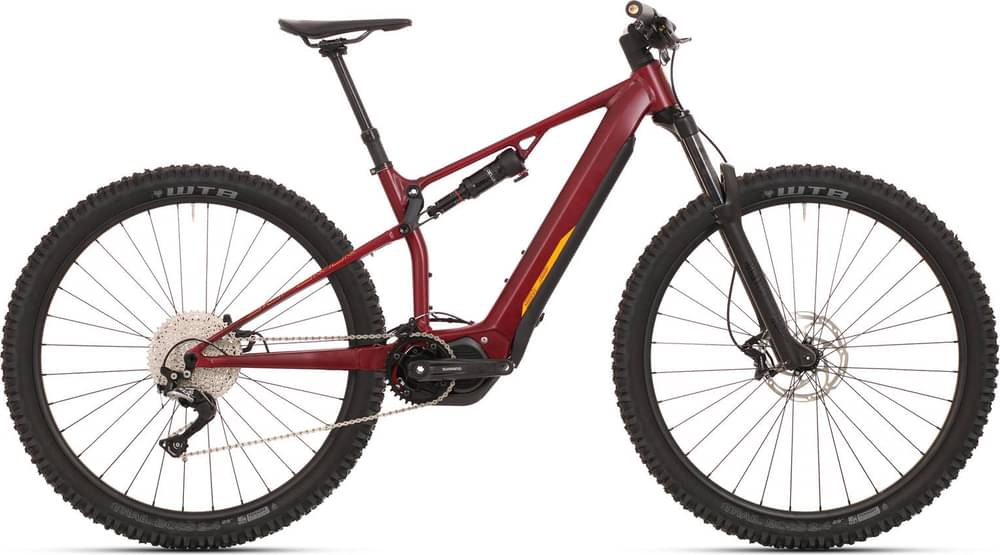

MODO eXF 9019 belongs to the Superior E Modo model. 3 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
MODO eXF 9019 weighs 22.9 kg (50.49 lbs) and is slightly lighter than the average. In other words, this model is 3.49% lighter than the average Trail e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
MODO eXF 9019 components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Deluxe Select Plus model, with a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Superior MODO eXF 9019 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The MODO eXF 9019 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
MODO eXF 9019 comes in 2 sizes, that range from 160 cm – 170 cm (5.25 ft – 5.58 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
