Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
160cm - 171cm
17.5"
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon MTB Race Pro SU-01, Advanced Race Geometry, Travel 100 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Carbon swingarm, SR dropout, Boost Thru Axle 148x12 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
DT Swiss OPM O.D.L. 100 Race, Tapered, 15x100mm axle, remote Lockout, 100mm travel
Rear Shock
DT Swiss R 535 ONE, remote Lockout, size 190x45mm
Drivetrain
Rear Derailleur
SHIMANO XTR RD-M9100 Shadow Plus
Shift Levers
SHIMANO XTR SL-M9100 Rapidfire Plus, 12-speed
Cassette
SHIMANO CS-M8100-12, 10-51T
Crank
Race Face NEXT SL, 34T
Bottom Bracket
Race Face BB92, PressFit, shell 41x92mm
Chain
SHIMANO CN-M8100
Wheels
Rims
DT Swiss XR 1501 Spline DB25; 12x148mm, Shimano MICRO SPLINE 12 speed, CENTER LOCK, Tubeless, DT Swiss XR 1501 Spline DB25; 15x100mm, CENTER LOCK, Tubeless
Tires
Schwalbe Racing Ralph SnakeSkin TL Easy, 29x2.25", ADDIX Speed/ Schwalbe Racing Ray SnakeSkin TL Easy, 29x2.25", ADDIX Speedgrip
Brakes
Brakes
SHIMANO XTR BL-M9100/BR-M9100, hydraulic disc brake
Cockpit
Stem
ONE1 Race RAS-D63028 Alloy, 31.8mm, -10°
Handlebar
ONE1 Carbon, Horizon Bow, 9° backsweep, 7mm rise, 760mm, 31.8mm
Grips
ESI Racers Edge silicone grips
Seat
Saddle
fizik Luna R7
Seatpost
ONE1 Race Carbon Ultimate
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" |
|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm |
| Stack | 572 mm | 582 mm |
| Reach | 420 mm | 442 mm |
| Top Tube Length | 577 mm | 603 mm |
| Seat Tube Angle | 74.9 ° | 74.7 ° |
| Seat Tube Length | 393 mm | 431 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm |
| Chainstay Length | 423 mm | 423 mm |
| Wheelbase | 1117 mm | 1142 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |
Model Overview

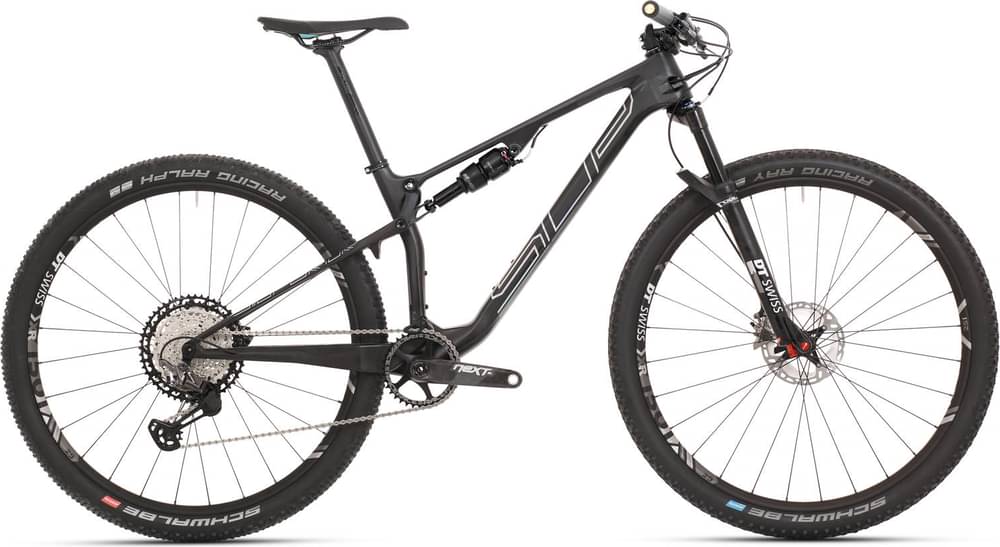

MODO TEAM XF 29 ISSUE is a Superior Modo model. Superior launched 23 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, MODO TEAM XF 29 ISSUE has a weight of 10.2 kg (22.49 lbs). In short, the average Crosscountry bike weight is 21.57% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
As for the rear shock, this bike has the DT Swiss R 535 ONE model, with a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the MODO TEAM XF 29 ISSUE model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MODO TEAM XF 29 ISSUE comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Superior MODO TEAM XF 29 ISSUE bike has 2 sizes, in the range of 160 cm – 180 cm (5.25 ft – 5.91 ft). In short, you can easily find one that suits you.
