Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR 32
-
Groupset Deore, Acera -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
160cm - 171cm
18"
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 T6 Double Butted, Smooth Welding, Sport Geometry, Tapered Head Tube, BB BSA 73 mm, IDK dropout, Inner Cable Routing
Suspension Fork
SR Suntour XCR32 LO, 1-1/8", Coil, QR Type, 100mm travel
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M592 Shadow
Front Derailleur
SHIMANO ACERA FD-T3000-2-TS3, TOP SWING, DUAL-PULL
Shift Levers
SHIMANO ALTUS SL-M2010-2L RapidFire Plus, 2-speed, SHIMANO ALTUS SL-M2010-9R RapidFire Plus, 9-speed
Cassette
SHIMANO CS-HG201-9, 11-36T
Crank
SHIMANO FC-MT210, 46-30T
Bottom Bracket
SHIMANO SM-BB52, BSA, shell 73mm
Chain
KMC X9
Pedals
Marwi SP-610
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
Rims
Stars J20S, 32H
Spokes
Sapim Galvanized Black
Tires
Impac SmartPac, 28x1.75"
Brakes
Brakes
SHIMANO BL-MT200/BR-MT200, hydraulic disc brake
Cockpit
Stem
ONE1 Sport MAS-D61248 Alloy, 31.8mm, -8°
Handlebar
ONE1 Alloy, MTB AL-312BT, 9° backsweep, 12mm rise, 720mm, 31.8mm
Grips
ONE1 VLG-1661D2N, Lock-On
Seat
Saddle
Selle Royal Vivo DRN
Seatpost
ONE1 Sport Alloy, SP C207
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" |
|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.64 mm |
| Stack | 626 mm | 645 mm |
| Reach | 378 mm | 393 mm |
| Top Tube Length | 576 mm | 596 mm |
| Seat Tube Angle | 72.4 ° | 72 ° |
| Seat Tube Length | 406 mm | 457 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 120 mm |
| Chainstay Length | 451 mm | 451 mm |
| Wheelbase | 1072 mm | 1093 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |

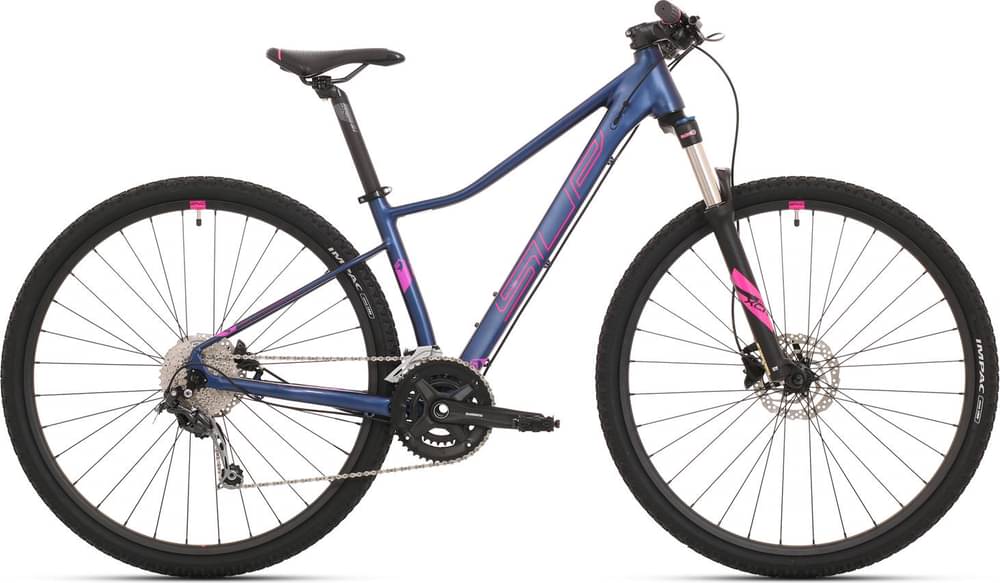

About this model
MODO XC 869 is a Superior Modo model. Superior released 23 bikes variations of this model so far. You can easily view all of the Superior Modo bikes models from 2020, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.3 kg (31.53 lbs), the MODO XC 869 model is much heavier than average. In short, the average Crosscountry bike weight is 15.32% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The SunTour XCR 32 is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the MODO XC 869 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MODO XC 869 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 2 sizes. They vary from 160 cm – 180 cm (5.25 ft – 5.91 ft). In short, it won’t be difficult to find the right one for you.
