Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
160cm - 171cm
17.5"
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite, Race Geometry, Tapered Head Tube, BB92, SR dropout, Boost Thru axle 148x12mm, Inner Cable Routing
Suspension Fork
RockShox 30 Silver TK, Tapered, SoloAir, QR Type, remote Lockout, 100mm travel
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7100 Shadow Plus
Shift Levers
SHIMANO SLX SL-M7100-R RapidFire Plus, 12-speed
Cassette
SunRace CS-MZ800-12, 11-51T / SunRace CS-MZ90-12, 11-50T
Crank
ONE1 TAM38D-B34NC, 34T
Bottom Bracket
BB-MT500PA PressFit, shell 41x92mm
Chain
KMC X12
Wheels
Front Hub
SHIMANO HB-M4050, 32H, CENTER LOCK, QR Type
Rear Hub
SHIMANO FH-MT400-B, 32H, CENTER LOCK, 12x148mm THRU Type AXLE
Rims
Stars J25D, 32H
Spokes
Sapim Leader, Stainless Black
Tires
Schwalbe Rapid Rob KevlarGuard, 29x2.10"
Cockpit
Stem
ONE1 Race RAS-D63028 Alloy, 31.8mm, -10°
Handlebar
ONE1 Race, Horizon Bow, 9° backsweep, 5mm rise, 720mm, 31.8mm
Grips
ONE1 VLG-1661D2N, Lock-On
Seat
Saddle
fizik Vesta MG
Seatpost
ONE1 Race Alloy, SP 218, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm |
| Stack | 584 mm | 593 mm |
| Reach | 408 mm | 430 mm |
| Top Tube Length | 578 mm | 603 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 431 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 100 mm |
| Chainstay Length | 433 mm | 433 mm |
| Wheelbase | 1098 mm | 1123 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |
Model Overview

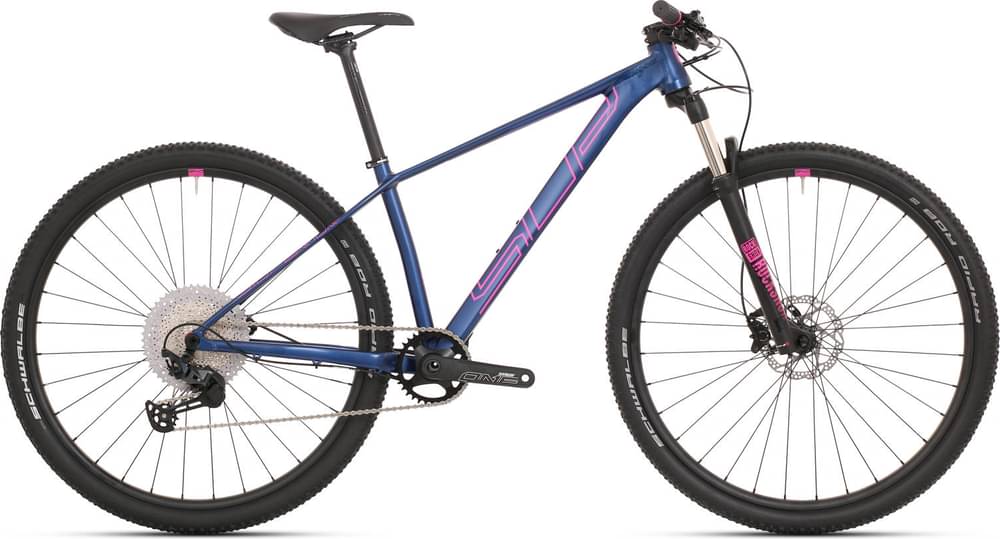

MODO XP 909 belongs to the Superior Modo model. 23 bikes variations carry this model name so far. You can easily view all of the Superior Modo bikes models from 2020, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
MODO XP 909 components
Fork
This bike has the RockShox 30 Silver TK fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Superior MODO XP 909 2020, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MODO XP 909 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 160 cm – 180 cm (5.25 ft – 5.91 ft). In conclusion, finding one for you shouldn’t be a problem.
