Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork Zoom
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
170cm - 181cm
XL
179cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6 Double Butted, Advanced Touring Geometry, Integrated Cable Routing, BB BSA
Suspension Fork
ZOOM 187D AMS, 1-1/8", Coil, QR Type, 60mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100, Shadow Design
Front Derailleur
SHIMANO ACERA FD-T3000, Top Swing, DUAL Pull
Shift Levers
SHIMANO ALIVIO SL-M3100, RAPIDFIRE Plus, 3-speed
Cassette
SHIMANO CS-HG200, 9-speed, 11-34T
Crank
SHIMANO FC-M371, 48-36-26T
Bottom Bracket
SHIMANO BB-UN101, 122.5mm, BSA, shell 73mm
Chain
KMC X9
Pedals
Marwi SP-823
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CL, M9X100mm, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CL, M10x135mm, QR Type
Rims
STARS J19SZ, 32H
Spokes
SAPIM Leader, Stainless Black
Tires
WTB Riddler Comp, 29x1.75", Reflective tape
Brakes
Brakes
SHIMANO MT200, hydraulic disc brake
Cockpit
Stem
ONE Race, Alloy, 31,8mm, ±15°
Handlebar
ONE Alloy, 12mm rise, 660mm, 31.8mm
Headset
FSA NO.10P, Semi-Cartrige, 1-1/8
Seat
Saddle
Selle Royal Rio Plus
Seatpost
ONE, Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.44 mm | 1.43 mm |
| Front Center | 665 mm | 678 mm | 682 mm |
| Rake | 54 mm | 54 mm | 65 mm |
| Trail | 70 mm | 70 mm | 51 mm |
| Stack | 606 mm | 612 mm | 615 mm |
| Reach | 416 mm | 426 mm | 429 mm |
| Top Tube Length | 596 mm | 606 mm | 616 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 440 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° |
| Head Tube Length | 160 mm | 160 mm | 160 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1108 mm | 1121 mm | 1125 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 179 cm |
| Rider Max Height | 176 cm | 181 cm | 190 cm |
About this model

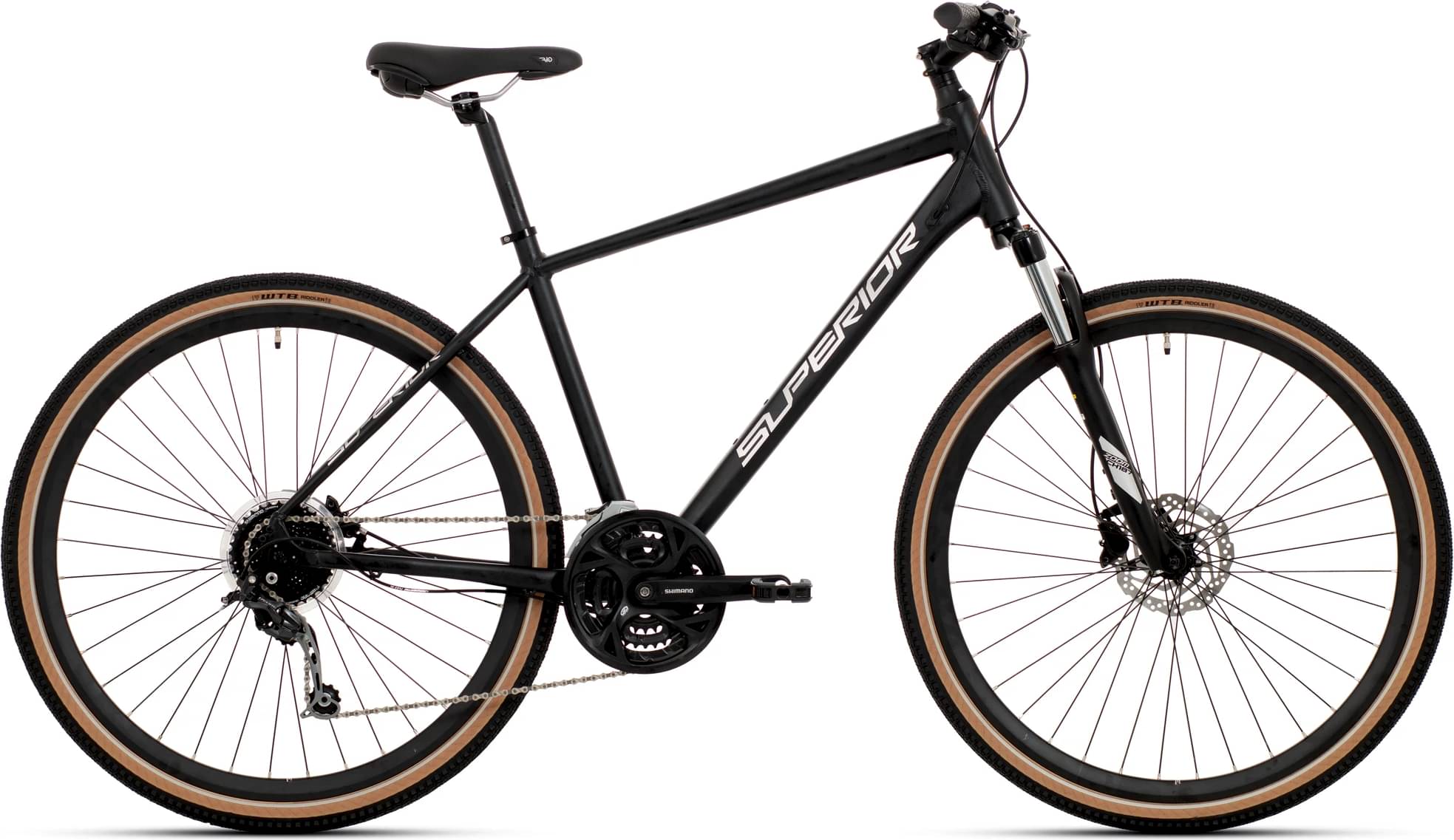

RX 570 completes the Superior Rx model. Superior launched 5 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This bike has the Zoom fork installed. The fork’s travel is 60mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Superior RX 570 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Superior RX 570 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
RX 570 comes in 3 sizes, that range from 165 cm – 190 cm (5.41 ft – 6.23 ft). In conclusion, finding one for you shouldn’t be a problem.
