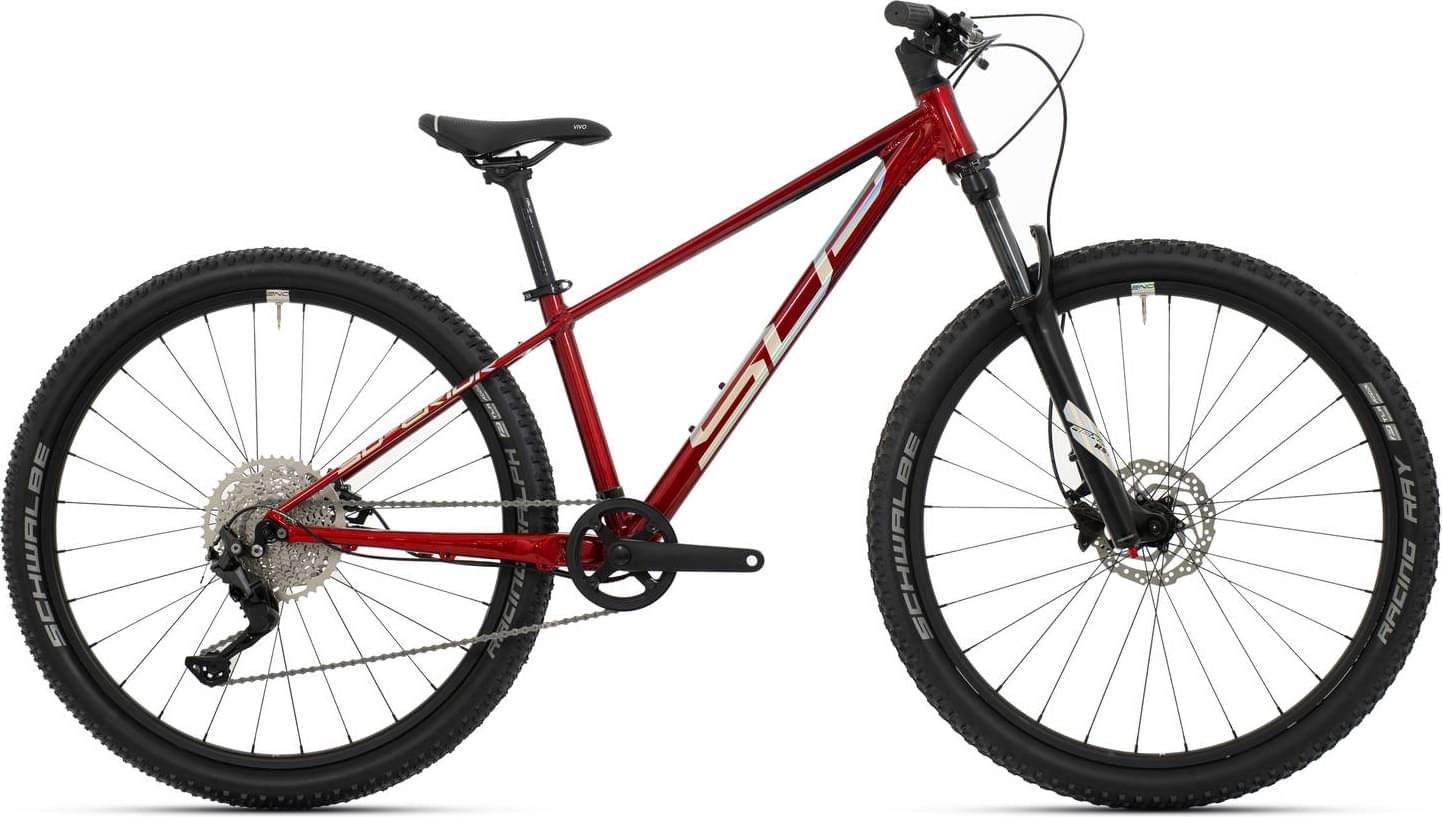

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork RST
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 T6 Double Butted, Advanced Race Junior Geometry, 1xOptimized, BB BSA, Inner cable routing, Disc Brake Flat mount
Suspension Fork
RST Aerial, 1-1/8", 100mm travel
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M5120 Shadow Plus
Shift Levers
SHIMANO DEORE SL-M4100-R RapidFire Plus, 10-speed
Cassette
SHIMANO CS-M4100-10, 11-46T
Crank
Wheel Top SXB4BL-WM, 32T
Bottom Bracket
Thun Ibex 120mm, BSA, shell 68mm
Chain
KMC X10
Wheels
Front Hub
ONE1 KTTC7F, 28H, M9x100mm, QR Type
Rear Hub
ONE1 KTTC7R, 28H, M10x135, CASSETE, QR Type
Rims
Stars J20S, 28H
Spokes
Sapim Race/ Sapim Laser, Stainless Black/ Sapim Laser
Tires
Schwalbe Racing Ralph Performance TwinSkin TL-Ready, 27.5x2.25", ADDIX/ Schwalbe Racing Ray Performance TwinSkin TL-Ready, 27.5x2.25", ADDIX
Brakes
Brakes
SHIMANO BL-MT200/BR-MT200, hydraulic disc brake
Cockpit
Handlebar
ONE1 Alloy, TM40, 3° upsweep, 8° backsweep, 18mm rise, 660mm
Grips
ONE1 VLG-1661D2N, Lock-On
Seat
Saddle
Selle Royal Junior
Seatpost
ONE1 Race Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.35 mm |
| Front Center | 631 mm | 672 mm |
| Rake | 43 mm | 43 mm |
| Stack | 567 mm | 567 mm |
| Reach | 379 mm | 420 mm |
| Top Tube Length | 543 mm | 584 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 330 mm | 393 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm |
| Chainstay Length | 418 mm | 418 mm |
| Wheelbase | 1046 mm | 1087 mm |
| Bottom Bracket Drop | 40 mm | 40 mm |
| Wheels | 27" | 27" |
Model Overview
Team 27 Elite belongs to the Superior Team 27 model. Superior released 4 bikes variations of this model so far. Take a sneak peek at all Superior Team 27 bikes models from 2022, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Youth bikes average price
If you want to purchase a solid Youth bike, it is important to know that the average cost is 278$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Youth bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Team 27 Elite components
Fork
The RST is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Team 27 Elite model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Team 27 Elite comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
