Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID SL Select
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon MTB Race Pro SU-01, Advanced Race Geometry, Travel 100 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Carbon swingarm, SR dropout, Boost Thru Axle 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox SID SL Select RL R, Tapered, DebonAir, 15x110mm axle, 100mm travel
Rear Shock
DT Swiss R 232 ONE, remote Lockout, size 190x45mm
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100 Shadow Plus
Shift Levers
SHIMANO DEORE XT SL-M8100 RapidFire Plus, 12-speed
Cassette
SHIMANO CS-M8100-12, 10-51T
Crank
SHIMANO XT FC-M8120 Hollowtech II, 36T
Bottom Bracket
BB-MT500PA PressFit, shell 41x92mm
Chain
CHAIN SHIMANO CN-M6100
Wheels
Rims
DT Swiss XM 1700 Spline DB30; 12x148mm, CENTER LOCK, Tubeless, DT Swiss XM 1700 Spline DB30; 15x110mm, CENTER LOCK, Tubeless
Tires
Schwalbe Racing Ray Performance TL-Ready, 29x2.25", ADDIX/ Schwalbe Racing Ralph Performance TL-Ready, 29x2.25", ADDIX Speedgrip
Brakes
Brakes
SHIMANO XT BL-M8100/BR-M8100, hydraulic disc brake, SHIMANO XT BL-M8100/BR-M8110, hydraulic disc brake
Cockpit
Stem
ONE1 Race Alloy, 31.8mm, -7°
Handlebar
ONE1 Race, Horizon Bow, 9° backsweep, 5mm rise, 760mm, 31.8mm
Grips
ONE1 VLG-1907D2, ONE1 VLG-1962-11D2, Lock-On
Seat
Saddle
fizik Antares R7
Seatpost
ONE1 Alloy, MT171, dropper post, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 697 mm | 722 mm | 742 mm | 762 mm |
| Rake | 47 mm | 46 mm | 47 mm | 46 mm |
| Trail | 101 mm | 102 mm | 101 mm | 102 mm |
| Stack | 572 mm | 582 mm | 590 mm | 600 mm |
| Reach | 420 mm | 442 mm | 458 mm | 475 mm |
| Top Tube Length | 577 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 74.9 ° | 74.7 ° | 74.6 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1117 mm | 1142 mm | 1162 mm | 1182 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
Model Overview

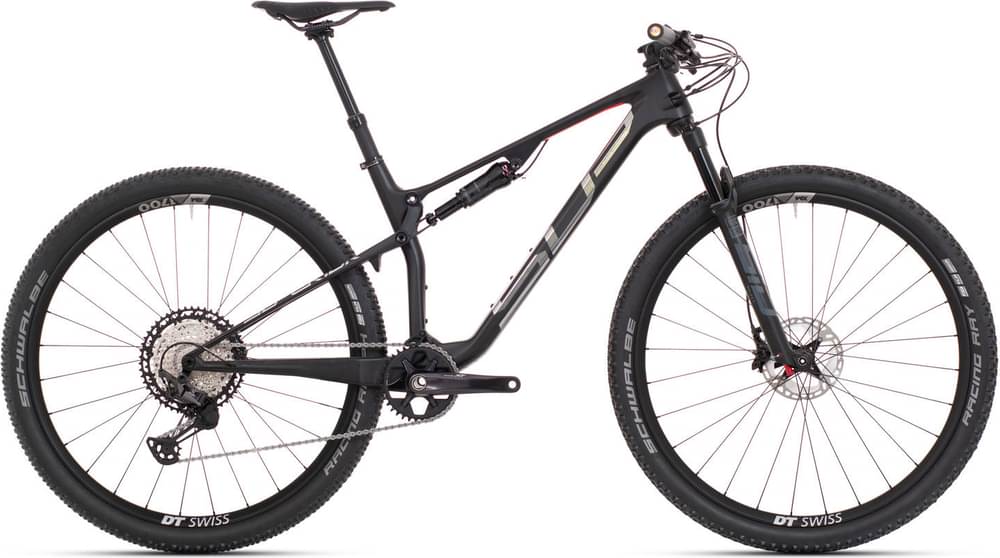

Team XF 29 Elite belongs to the Superior Team Xf model. 11 bikes variations carry this model name so far. Take a sneak peek at all Superior Team Xf bikes models from 2021, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 11.2 kg (24.69 lbs), the Team XF 29 Elite model is considerably lighter than average. In short, the average Crosscountry bike weight is 10.71% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Team XF 29 Elite comes factory-installed with the RockShox SID SL Select fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Team XF 29 Elite has a rear shock with a travel of 100mm. The model DT Swiss R 232 ONE is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Team XF 29 Elite 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Team XF 29 Elite has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Team XF 29 Elite comes in 4 sizes, that range from 160 cm – 200 cm (5.25 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
