Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 100mm -
Fork RockShox SID Select
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon MTB Race Pro SU-01, Advanced Race Geometry, Travel 100 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Carbon swingarm, SR dropout, Boost Thru Axle 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox SID Select RL R, Tapered, DebonAir, 15x110mm axle, 110mm travel
Rear Shock
DT Swiss R 232 ONE, remote Lockout, size 190x45mm, Bushing body for DT Swiss
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100 Shadow Plus
Shift Levers
SHIMANO DEORE XT SL-M8100 RapidFire Plus, 12-speed
Cassette
SHIMANO CS-M8100-12, 10-51T
Crank
SHIMANO XT FC-M8120 Hollowtech II, 36T
Bottom Bracket
SHIMANO BB-MT500PA PressFit, shell 41x92mm
Chain
SHIMANO DEORE CN-M6100
Wheels
Rims
DT Swiss XM 1700 Spline DB30; 12x148mm, CENTER LOCK, Tubeless, DT Swiss XM 1700 Spline DB30; 15x110mm, CENTER LOCK, Tubeless
Tires
Schwalbe Racing Ray Performance TL-Ready, 29x2.25", ADDIX/ Schwalbe Racing Ralph Performance TL-Ready, 29x2.25", ADDIX Speedgrip
Brakes
Brakes
SHIMANO XT BL-M8100/BR-M8100, hydraulic disc brake, SHIMANO XT BL-M8100/BR-M8110, hydraulic disc brake
Cockpit
Stem
ONE1 Race Alloy, 31.8mm, -7°
Handlebar
ONE1 Race, Horizon Bow, 9° backsweep, 5mm rise, 760mm, 31.8mm
Grips
ONE1 VLG-1907D2, ONE1 VLG-1962-11D2, Lock-On
Seat
Saddle
Saddle
Seatpost
ONE1 Alloy, MT171, dropper post, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 697 mm | 722 mm | 742 mm | 762 mm |
| Rake | 47 mm | 46 mm | 47 mm | 46 mm |
| Trail | 101 mm | 102 mm | 101 mm | 102 mm |
| Stack | 572 mm | 582 mm | 590 mm | 600 mm |
| Reach | 420 mm | 442 mm | 458 mm | 475 mm |
| Top Tube Length | 577 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 74.9 ° | 74.7 ° | 74.6 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1117 mm | 1142 mm | 1162 mm | 1182 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

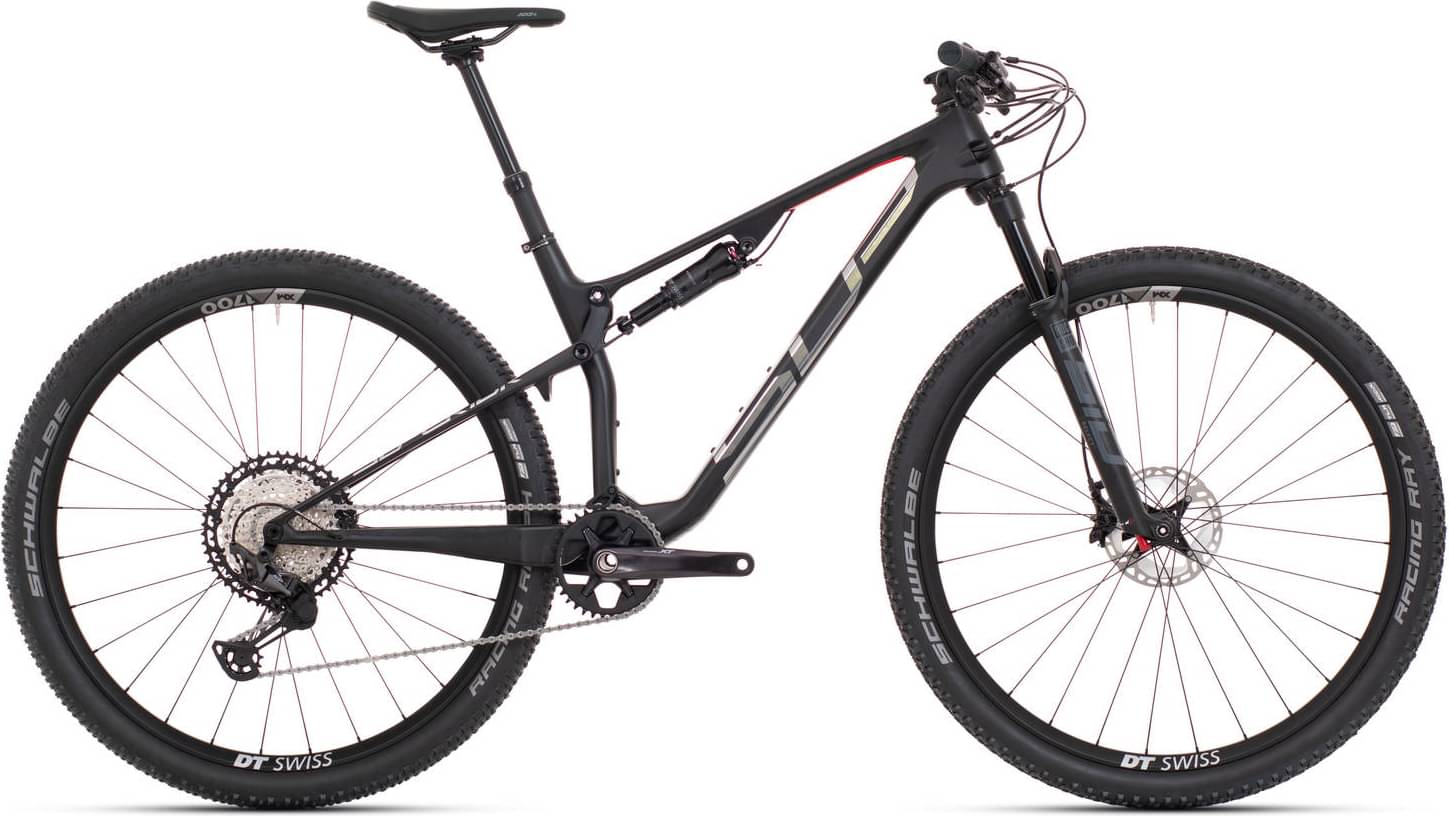

Team XF 29 Elite completes the Superior Team Xf model. Superior released 11 bikes variations of this model so far. You can easily view all of the Superior Team Xf bikes models from 2022, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Team XF 29 Elite components
Fork
The RockShox SID Select is included from the factory. It has a travel distance of 110mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the DT Swiss R 232 ONE model, with a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Team XF 29 Elite bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Superior Team XF 29 Elite has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Team XF 29 Elite. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
