Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite X-Road Race, Road Advanced Geometry, Smooth Welding, Disc Brake Flat mount, BB BSA 68mm, SH dropout, Inner cable routig, mudguadrs ready
Suspension Fork
X-Road Comp 28", Carbon/alloy rigid, Ahead 1-1/8x1.5", 12x100mm axle
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 GS
Front Derailleur
Shimano Tiagra 4700
Cassette
SHIMANO CS-HG500-10, 11-34T
Crank
SHIMANO FC-RS400, 34T
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X10
Wheels
Front Hub
SHIMANO HB-RS470, 28H, CENTER LOCK, 12x100mm THRU Type AXLE
Rear Hub
SHIMANO FH-RS470, 28H, CENTER LOCK, 12x142mm THRU Type AXLE
Rims
Stars J20SR, 28H
Spokes
Sapim Race, Stainless Black
Tires
Schwalbe Lugano II KevlarGuard, 700x32C
Brakes
Brakes
SHIMANO ST-4720/BR-4770, hydraulic disc brake
Cockpit
Stem
ONE1 Race RAS-D62938 Alloy, 31.8mm, -8°
Handlebar
ONE1 X-Race Aero, 16° flared, 70mm reach, 31.8mm
Grips
Velo VLF-8111
Seat
Saddle
Fizik Aliante R5
Seatpost
ONE1 Race Alloy, SP C255, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.53 mm | 1.57 mm | 1.53 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 582 mm | 579 mm | 599 mm | 619 mm |
| Rake | 45 mm | 40 mm | 45 mm | 45 mm |
| Trail | 69 mm | 71 mm | 60 mm | 60 mm |
| Stack | 563 mm | 574 mm | 611 mm | 621 mm |
| Reach | 372 mm | 376 mm | 389 mm | 406 mm |
| Top Tube Length | 535 mm | 545 mm | 575 mm | 595 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 135 mm | 145 mm | 180 mm | 190 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 997 mm | 994 mm | 1014 mm | 1034 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

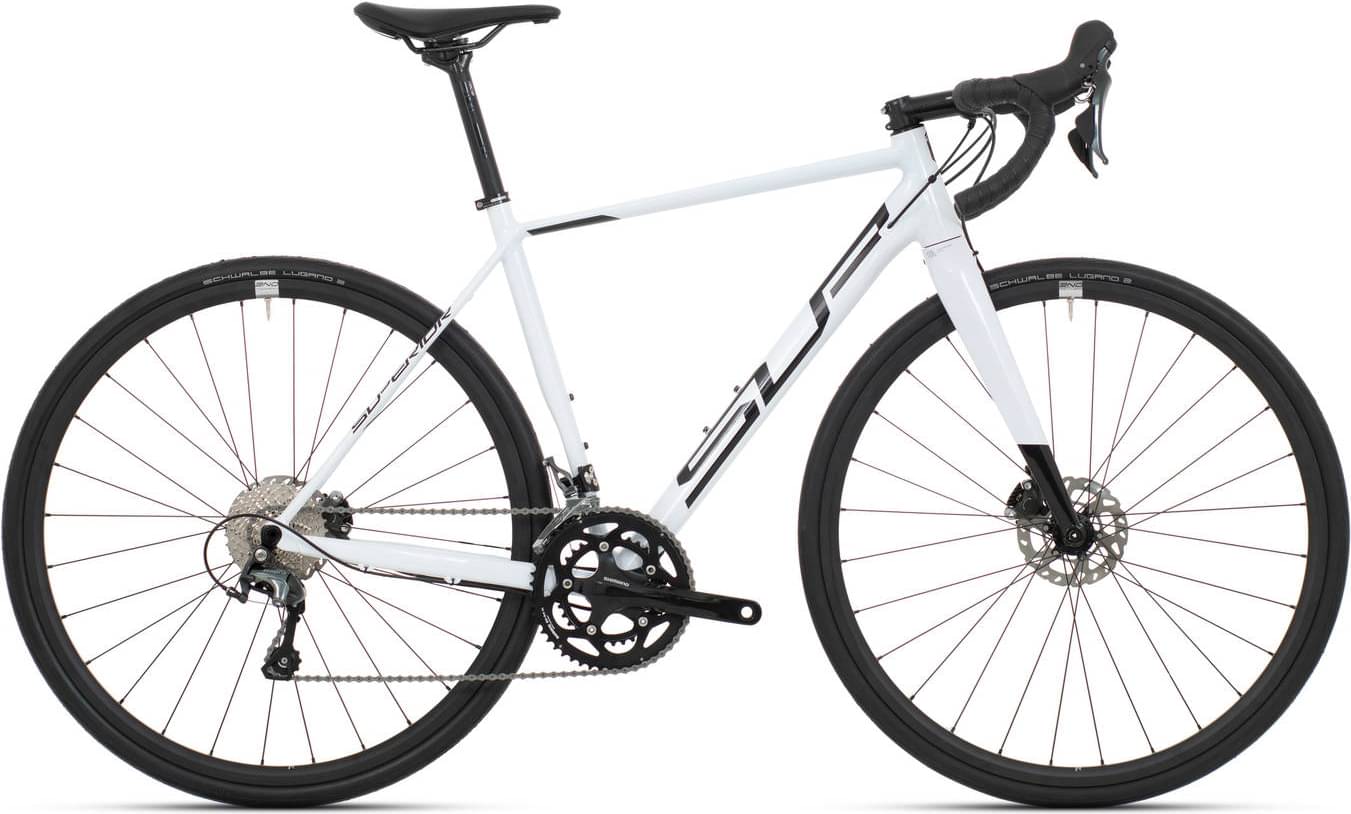

X-ROAD Comp completes the Superior X Road model. There are 26 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Superior X-ROAD Comp 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Superior X-ROAD Comp has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
