Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite X-Road Race, Road Advanced Geometry, Smooth Welding, Disc Brake Flat mount, BB BSA 68mm, SH dropout, Inner cable routig, mudguadrs ready
Suspension Fork
X-Road Comp GR 28", Carbon/alloy rigid, Ahead 1-1/8x1.5", 12x100mm axle
Drivetrain
Rear Derailleur
SHIMANO GRX RD-RX400 Shadow Plus
Cassette
SHIMANO CS-M4100-10, 11-42T
Crank
SHIMANO GRX FC-RX600, 40T
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X10
Wheels
Front Hub
SHIMANO HB-RS470, 28H, CENTER LOCK, 12x100mm THRU Type AXLE
Rear Hub
SHIMANO FH-RS470, 28H, CENTER LOCK, 12x142mm THRU Type AXLE
Rims
Stars J20SR, 28H
Spokes
Sapim Race, Stainless Black
Tires
Schwalbe G-One Allround RaceGuard, 28x1.50"
Brakes
Brakes
SHIMANO ST-RX400/BR-RX400, hydraulic disc brake
Cockpit
Stem
ONE1 Race RAS-D62938 Alloy, 31.8mm, -8°
Handlebar
ONE1 X-Race Aero, 16° flared, 70mm reach, 31.8mm
Grips
Velo VLF-8111
Seat
Saddle
Fizik Aliante R5
Seatpost
ONE1 Race Alloy, SP C255, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.53 mm | 1.57 mm | 1.53 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 582 mm | 579 mm | 599 mm | 619 mm |
| Rake | 45 mm | 40 mm | 45 mm | 45 mm |
| Trail | 69 mm | 71 mm | 60 mm | 60 mm |
| Stack | 563 mm | 574 mm | 611 mm | 621 mm |
| Reach | 372 mm | 376 mm | 389 mm | 406 mm |
| Top Tube Length | 535 mm | 545 mm | 575 mm | 595 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 135 mm | 145 mm | 180 mm | 190 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 997 mm | 994 mm | 1014 mm | 1034 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

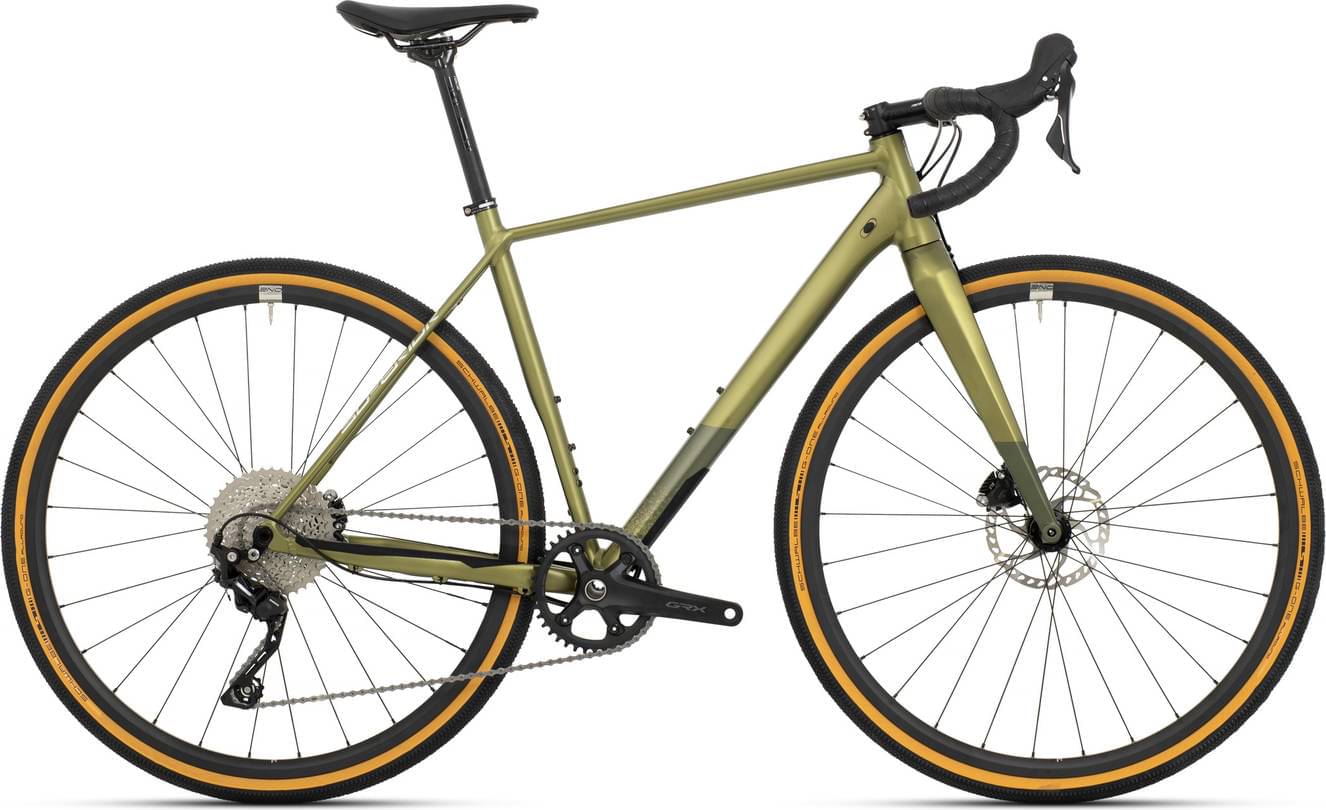

Model Overview
X-ROAD Comp GR belongs to the Superior X Road model. There are 26 bikes that carry this model name. You can easily view all of the Superior X Road bikes models from 2022, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
X-ROAD Comp GR components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on X-ROAD Comp GR are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The X-ROAD Comp GR comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
