Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
170cm - 180cm
LG
175cm - 185cm
XL
180cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite X-Road Race, Road Advanced Geometry, Smooth Welding, Disc Brake Flat mount, BB BSA 68mm, SH dropout, Inner cable routig, mudguadrs ready
Suspension Fork
X-Road Elite 28", Carbon/alloy rigid, Ahead 1-1/8x1.5", 12x100mm axle
Drivetrain
Rear Derailleur
SHIMANO GRX RD-RX812 Shadow Plus
Shift Levers
SHIMANO GRX BL-RX600, 11-speed
Cassette
SunRace CS-MS7-11, 11-42T
Crank
SHIMANO GRX FC-RX600, 40T
Bottom Bracket
SHIMANO BB-R60, BSA, shell 68mm
Chain
KMC X11-93
Wheels
Front Hub
BITEX MTF15-20, 28H, 12X100mm THRU Type AXLE
Rear Hub
ONE1 MTR10, 28H, M10x135, CASSETE, QR Type
Rims
Stars J18SF, 28H
Spokes
Sapim Race, Stainless Black
Tires
Schwalbe G-One Allround RaceGuard, 28x1.50"
Brakes
Brakes
SHIMANO GRX ST-RX600/BR-RX400, hydraulic disc brake, SHIMANO GRX BL-RX600/BR-RX400, hydraulic disc brake
Cockpit
Stem
ONE1 Race RAS-D62938 Alloy, 31.8mm, -8°
Handlebar
ONE1 Alloy, X-Race Aero, 16° flared, 70mm reach, 31.8mm
Seat
Saddle
Selle Royal Seta Performa
Seatpost
ONE1 Race Alloy, SP C255, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.53 mm | 1.57 mm | 1.53 mm |
| Stack | 563 mm | 574 mm | 611 mm | 621 mm |
| Reach | 372 mm | 376 mm | 389 mm | 406 mm |
| Top Tube Length | 535 mm | 545 mm | 575 mm | 595 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 135 mm | 145 mm | 180 mm | 190 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 997 mm | 994 mm | 1014 mm | 1034 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 175 cm | 180 cm |
| Rider Max Height | 175 cm | 180 cm | 185 cm | 200 cm |
About this model

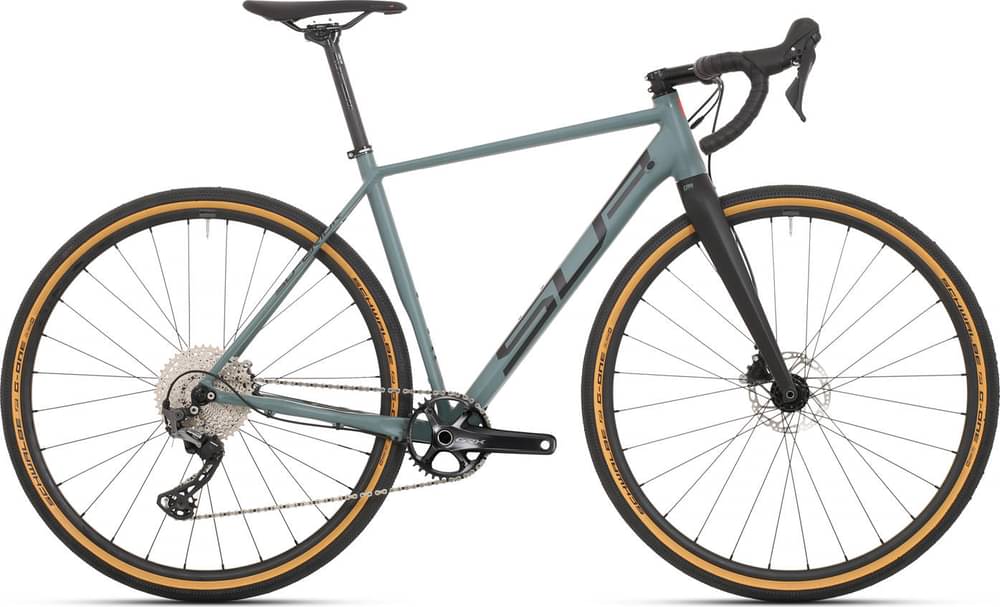

X-ROAD ELITE is a Superior X Road model. There are 26 bikes that carry this model name. You can easily view all of the Superior X Road bikes models from 2020, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Gravel bikes
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Superior X-ROAD ELITE it’s weighing 9.7 kg (21.38 lbs). At this weight, is much heavier than average. In short, the average Gravel bike weight is 19.31% lower than this one.
X-ROAD ELITE components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the X-ROAD ELITE model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The X-ROAD ELITE comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Superior X-ROAD ELITE bike has 4 sizes, in the range of 165 cm – 200 cm (5.41 ft – 6.56 ft). In short, you can easily find one that suits you.
