Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
170cm - 180cm
LG
175cm - 185cm
XL
180cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite X-Road Race, Road Advanced Geometry, Smooth Welding, Disc Brake Flat mount, BB BSA 68mm, SH dropout, Inner cable routig, mudguadrs ready
Suspension Fork
X-Road Elite 28", Carbon/alloy rigid, Ahead 1-1/8x1.5", 12x100mm axle
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7000 Shadow
Front Derailleur
SHIMANO 105 FD-R7000-L, DOWN SWING, BRAZED-ON Type
Cassette
SHIMANO CS-HG700-11, 11-34T
Crank
SHIMANO 105 FC-R7000 Hollowtech II 50-34T
Bottom Bracket
SHIMANO BB-R60, BSA, shell 68mm
Chain
KMC X11
Wheels
Front Hub
SHIMANO HB-RS470, 28H, CENTER LOCK, 12x100mm THRU Type AXLE
Rear Hub
SHIMANO FH-RS470, 28H, CENTER LOCK, 12x142mm THRU Type AXLE
Rims
Stars J20SR, 28H
Spokes
Sapim Race, Stainless Black
Tires
Schwalbe One Performance RaceGuard, 28x1.20", ADDIX
Brakes
Brakes
SHIMANO 105 ST-R7020/BR-R7070, hydraulic disc brake
Cockpit
Stem
ONE1 Race RAS-D62938 Alloy, 31.8mm, -8°
Handlebar
ONE1 X-Race Aero, 16° flared, 70mm reach, 31.8mm
Grips
Velo VLF-8111
Seat
Saddle
Selle Royal Seta Performa
Seatpost
ONE1 Race Alloy, SP C255, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.53 mm | 1.57 mm | 1.53 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 582 mm | 579 mm | 599 mm | 619 mm |
| Rake | 45 mm | 40 mm | 45 mm | 45 mm |
| Trail | 69 mm | 71 mm | 60 mm | 60 mm |
| Stack | 563 mm | 574 mm | 611 mm | 621 mm |
| Reach | 372 mm | 376 mm | 389 mm | 406 mm |
| Top Tube Length | 535 mm | 545 mm | 575 mm | 595 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 135 mm | 145 mm | 180 mm | 190 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 997 mm | 994 mm | 1014 mm | 1034 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 175 cm | 180 cm |
| Rider Max Height | 175 cm | 180 cm | 185 cm | 200 cm |
About this model

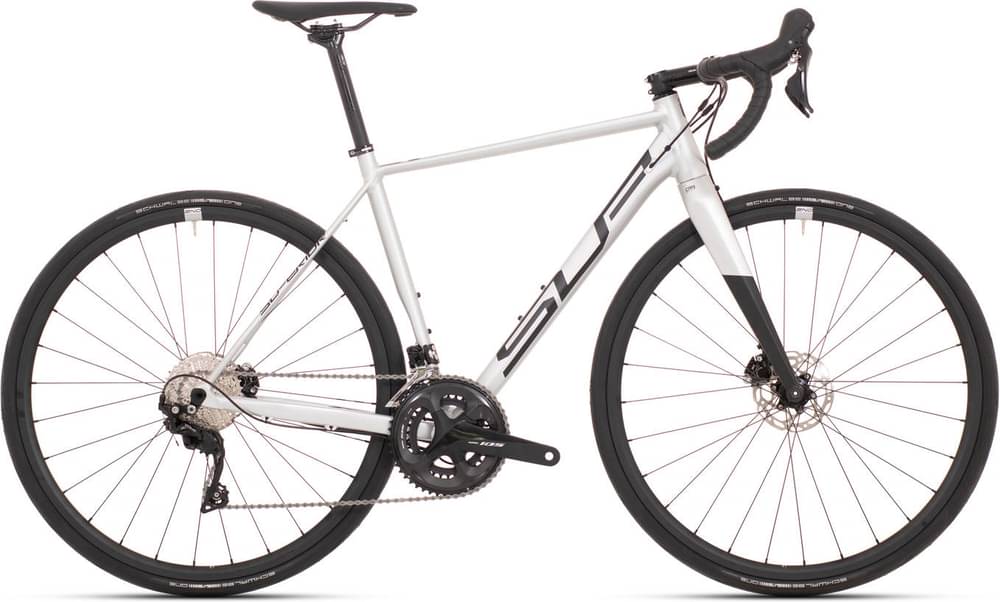

X-ROAD Issue is a Superior X Road model. 26 bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Gravel bikes average weight
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, X-ROAD Issue has a weight of 9.9 kg (21.83 lbs). To sum up, it’s 21.77% heavier than the average weight of Gravel bikes.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The X-ROAD Issue 2021 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The X-ROAD Issue comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 165 cm – 200 cm (5.41 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
