Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon X-Road Race Mid Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BB865, SH dropout, Thru Axle 12x142 mm, Inner cable routing, Di2 compatible, mudguards ready
Suspension Fork
X-ROAD carbon fork
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7000 Shadow
Front Derailleur
SHIMANO 105 FD-R7000-L, DOWN SWING, BRAZED-ON Type
Cassette
SHIMANO CS-HG700-11, 11-34T
Crank
SHIMANO 105 FC-R7000 Hollowtech II, 52-34T
Bottom Bracket
SHIMANO BB-RS500 PressFit, shell 41x86.5mm, BB accessories
Chain
KMC X11
Wheels
Rims
DT Swiss C 1800 Spline DB23; 12x142mm, CENTER LOCK, Tubeless, DT Swiss C 1800 Spline DB23; 12x100mm, CENTER LOCK, Tubeless
Tires
Schwalbe Pro One Evo, 28x1.20", ADDIX
Brakes
Brakes
SHIMANO ST-R7025/BR-R7070, hydraulic disc brake
Cockpit
Stem
ONE1 TDS-660 Alloy, 31.8mm, 7°, 80MM
Handlebar
ONE1 Alloy, X-Race Aero, 16° flared, 70mm reach, 31.8mm
Grips
Velo VLF-8111
Seat
Saddle
Fizik Aliante R5
Seatpost
ONE1 Carbon, SP0225380AERO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.48 mm | 1.48 mm | 1.47 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 588 mm | 594 mm | 608 mm | 630 mm |
| Rake | 45 mm | 46 mm | 45 mm | 44 mm |
| Trail | 73 mm | 68 mm | 66 mm | 67 mm |
| Stack | 530 mm | 551 mm | 572 mm | 591 mm |
| Reach | 370 mm | 373 mm | 386 mm | 402 mm |
| Top Tube Length | 525 mm | 538 mm | 562 mm | 584 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 462 mm | 482 mm | 502 mm | 522 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 984 mm | 990 mm | 1004 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

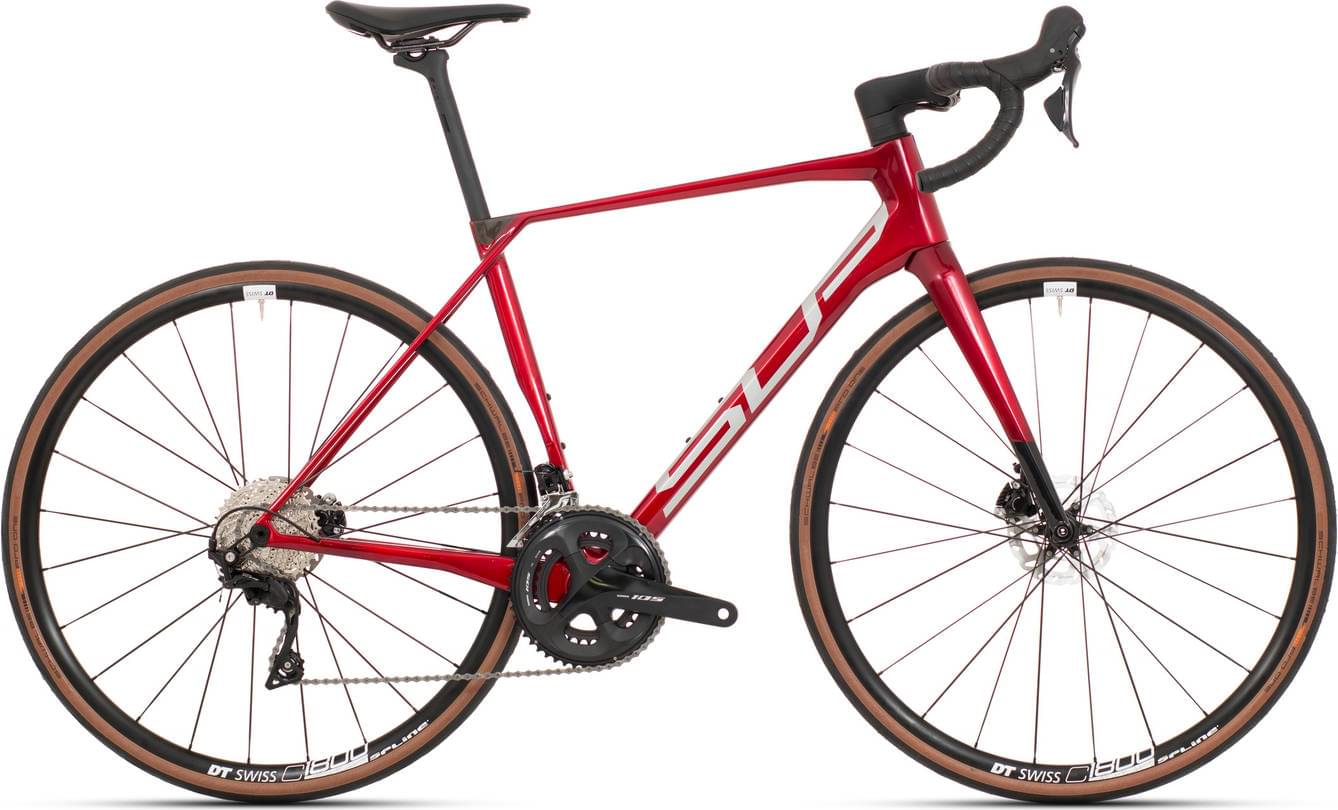

X-ROAD Team Elite completes the Superior X Road model. Superior launched 26 bikes of this model so far. Take a sneak peek at all Superior X Road bikes models from 2022, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
X-ROAD Team Elite components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on X-ROAD Team Elite are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Superior X-ROAD Team Elite has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
