Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
170cm - 180cm
LG
175cm - 185cm
XL
180cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon X-Road Race Mid Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BB865, SH dropout, Thru Axle 12x142 mm, Inner cable routing, Di2 compatible, mudguards ready
Suspension Fork
X-Road Team Issue 28", Carbon rigid, Ahead 1-1/8x1.5", 12x100mm axle
Drivetrain
Rear Derailleur
SHIMANO ULTEGRA RD-RX800 Shadow Plus
Front Derailleur
SHIMANO ULTEGRA FD-R8000, DOWN SWING, BRAZED-ON Type
Cassette
SHIMANO CS-HG700-11, 11-34T
Crank
SHIMANO ULTEGRA FC-R8000 Hollowtech II, 50-34T
Bottom Bracket
SHIMANO BB-RS500 PressFit, shell 41x86.5mm, BB accessories
Chain
KMC X11L
Wheels
Rims
DT Swiss ER 1600 Spline DB32; 12x142mm, CENTER LOCK, Tubeless, DT Swiss ER 1600 Spline DB32; 12x100mm, CENTER LOCK, Tubeless
Tires
Schwalbe Pro One Evo, 28x1.20", ADDIX
Brakes
Brakes
SHIMANO ST-R8025/BR-R8070, hydraulic disc brake
Cockpit
Stem
ONE1 TDS-660 Alloy, 31.8mm, 7°, 80MM
Handlebar
ONE1 Alloy, X-Race Aero, 16° flared, 70mm reach, 31.8mm
Grips
Velo VLF-8111
Seat
Saddle
fizik Antares Versus EVO R5
Seatpost
ONE1 Carbon, SP0225380AERO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.48 mm | 1.48 mm | 1.47 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 588 mm | 594 mm | 608 mm | 630 mm |
| Rake | 45 mm | 46 mm | 45 mm | 44 mm |
| Trail | 73 mm | 68 mm | 66 mm | 67 mm |
| Stack | 530 mm | 551 mm | 572 mm | 591 mm |
| Reach | 370 mm | 373 mm | 386 mm | 402 mm |
| Top Tube Length | 525 mm | 538 mm | 562 mm | 584 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 462 mm | 482 mm | 502 mm | 522 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 984 mm | 990 mm | 1004 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 175 cm | 180 cm |
| Rider Max Height | 175 cm | 180 cm | 185 cm | 200 cm |
Model Overview

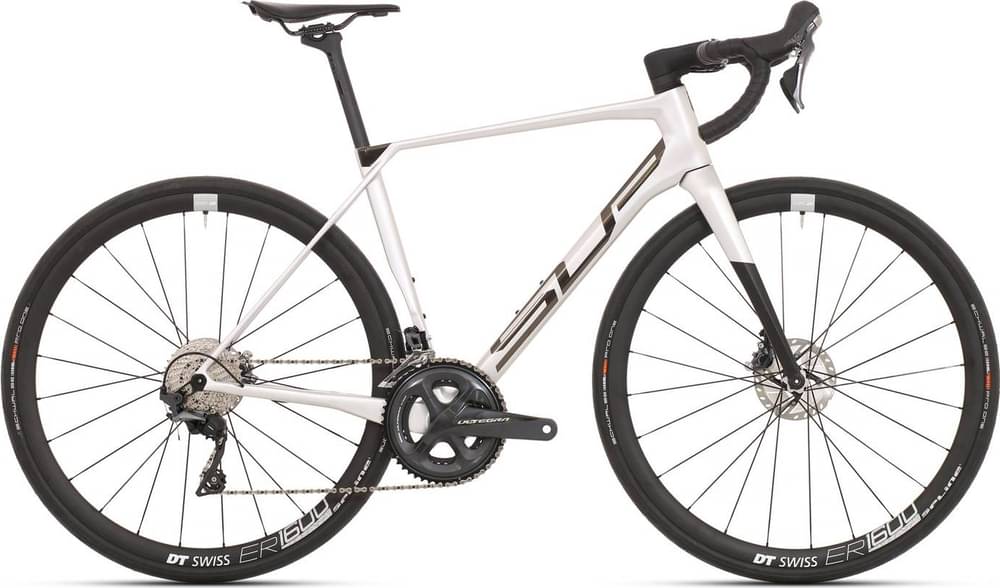

X-ROAD Team Issue is part of the Superior X Road model. Superior launched 26 bikes of this model so far. Take a sneak peek at all Superior X Road bikes models from 2021, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Gravel bikes average weight
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8.1 kg (17.86 lbs), the X-ROAD Team Issue model is slightly lighter than average. In other words, this model is 0.37% lighter than the average Gravel bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
X-ROAD Team Issue components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the X-ROAD Team Issue bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The X-ROAD Team Issue comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 165 cm – 200 cm (5.41 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
