Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon X-Road Race Mid Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BB865, SH dropout, Thru Axle 135x12 mm, Inner Cable Routing, Di2 compatible, mudguards ready
Suspension Fork
X-ROAD carbon fork
Drivetrain
Rear Derailleur
SHIMANO GRX RD-RX810 Shadow Plus
Front Derailleur
SHIMANO ULTEGRA FD-R8000, DOWN SWING, BRAZED-ON Type
Cassette
SHIMANO CS-HG700-11, 11-34T
Crank
SHIMANO ULTEGRA FC-R8000 Hollowtech II, 50-34T
Bottom Bracket
SHIMANO BB-RS500 PressFit, shell 41x86.5mm, BB accessories
Chain
KMC X11L
Wheels
Rims
DT Swiss ER 1600 Spline DB32; 12x142mm, CENTER LOCK, Tubeless, DT Swiss ER 1600 Spline DB32; 12x100mm, CENTER LOCK, Tubeless
Tires
Schwalbe Pro One Evo, 28x1.20", ADDIX
Brakes
Brakes
SHIMANO ST-R8020/BR-R8070, hydraulic disc brake
Cockpit
Handlebar
Handle bar
Grips
Velo VLF-8111
Seat
Saddle
Fizik Vento Argo R5
Seatpost
ONE1 Carbon, SP0225380AERO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.48 mm | 1.48 mm | 1.47 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 588 mm | 594 mm | 608 mm | 630 mm |
| Rake | 45 mm | 46 mm | 45 mm | 44 mm |
| Trail | 73 mm | 68 mm | 66 mm | 67 mm |
| Stack | 530 mm | 551 mm | 572 mm | 591 mm |
| Reach | 370 mm | 373 mm | 386 mm | 402 mm |
| Top Tube Length | 525 mm | 538 mm | 562 mm | 584 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 462 mm | 482 mm | 502 mm | 522 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 984 mm | 990 mm | 1004 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

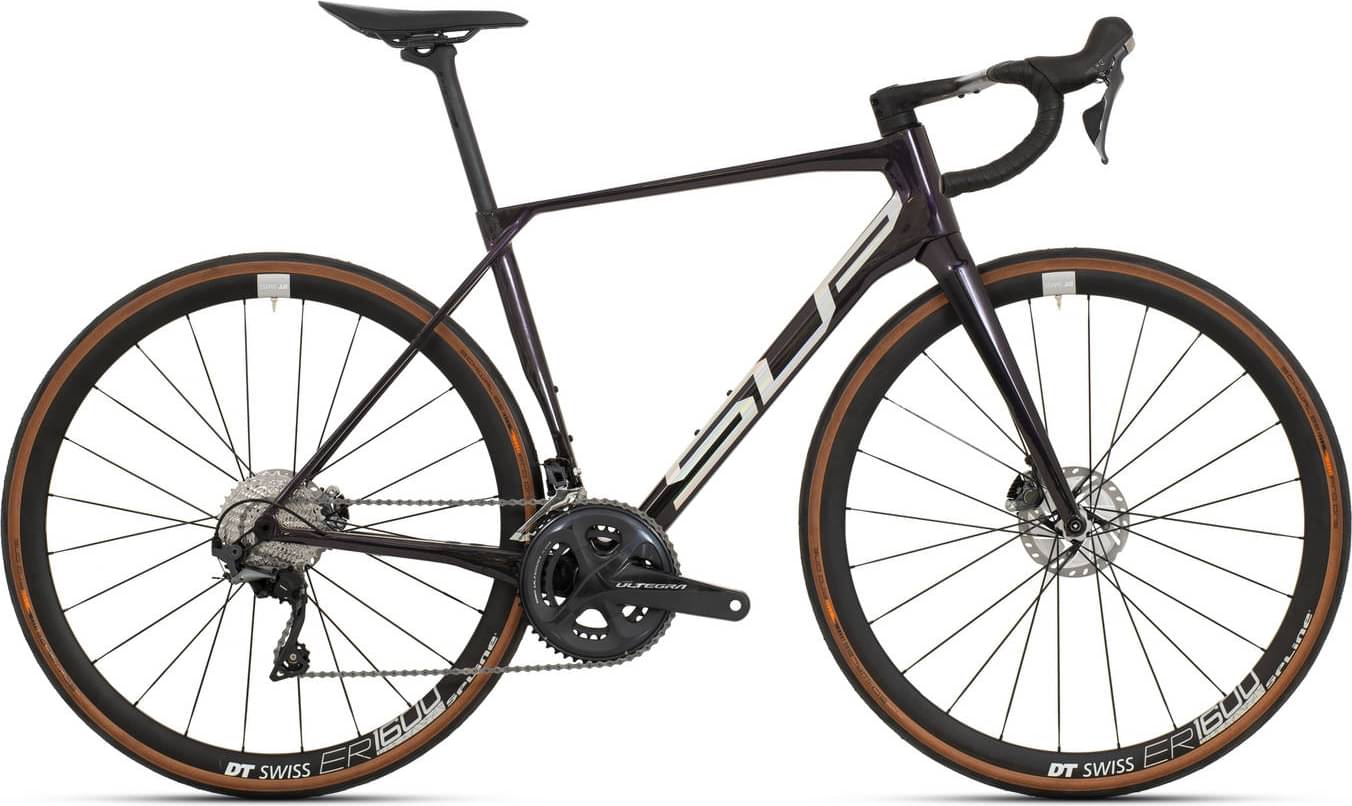

X-ROAD Team Issue is part of the Superior X Road model. Superior launched 26 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on X-ROAD Team Issue are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The X-ROAD Team Issue has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Superior X-ROAD Team Issue bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
