Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
170cm - 180cm
LG
175cm - 185cm
XL
180cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon X-Road Race Mid Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BB865, SH dropout, Thru Axle 12x142 mm, Inner cable routing, Di2 compatible, mudguards ready
Suspension Fork
X-Road Team Issue 28", Carbon rigid, Ahead 1-1/8x1.5", 12x100mm axle
Drivetrain
Rear Derailleur
SHIMANO ULTEGRA RD-RX805 Shadow Plus
Front Derailleur
SHIMANO ULTEGRA Di2 FD-R8050, BRAZED-ON Type
Cassette
SHIMANO CS-HG700-11, 11-34T
Crank
SHIMANO ULTEGRA FC-R8000 Hollowtech II, 50-34T
Bottom Bracket
SHIMANO BB-71-41B PressFit, shell 41x86.5mm, BB accessories
Chain
KMC X11L
Wheels
Rims
DT Swiss ER 1600 Spline DB32; 12x142mm, CENTER LOCK, Tubeless, DT Swiss ER 1600 Spline DB32; 12x100mm, CENTER LOCK, Tubeless
Tires
Schwalbe Pro One Evo, 28x1.20", ADDIX
Brakes
Brakes
SHIMANO ST-R8070/BR-R8070, hydraulic disc brake
Cockpit
Stem
ONE1 TDS-660 Alloy, 31.8mm, 7°, 110mm
Handlebar
ONE1 X-Race Aero, 16° flared, 70mm reach, 31.8mm
Grips
Velo VLF-8111
Seat
Saddle
fizik Antares Versus EVO R5
Seatpost
ONE1 Carbon, SP0225380AERO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.48 mm | 1.48 mm | 1.47 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 588 mm | 594 mm | 608 mm | 630 mm |
| Rake | 45 mm | 46 mm | 45 mm | 44 mm |
| Trail | 73 mm | 68 mm | 66 mm | 67 mm |
| Stack | 530 mm | 551 mm | 572 mm | 591 mm |
| Reach | 370 mm | 373 mm | 386 mm | 402 mm |
| Top Tube Length | 525 mm | 538 mm | 562 mm | 584 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 462 mm | 482 mm | 502 mm | 522 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 984 mm | 990 mm | 1004 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 175 cm | 180 cm |
| Rider Max Height | 175 cm | 180 cm | 185 cm | 200 cm |
About this model

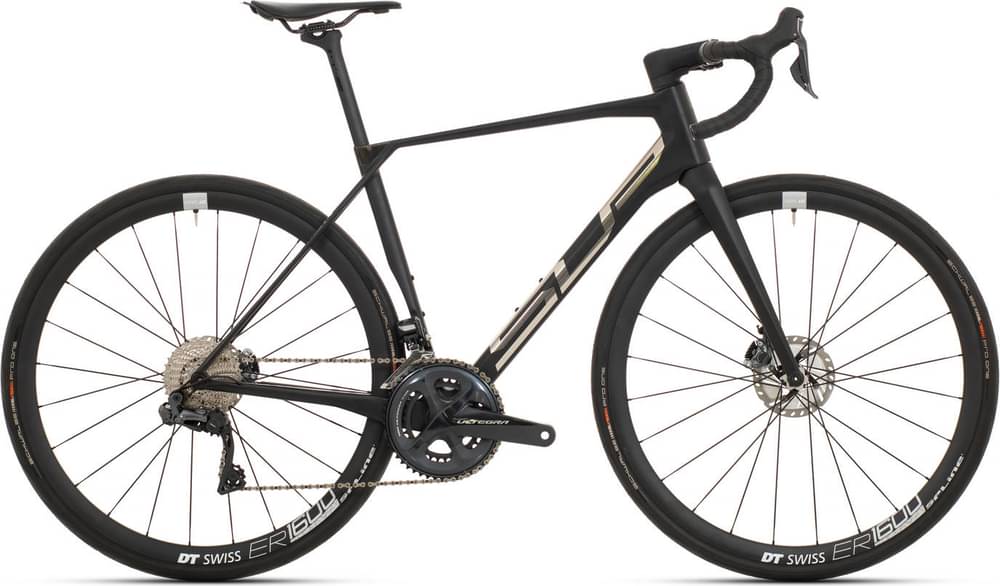

X-ROAD Team Issue Di2 completes the Superior X Road model. 26 bikes variations carry this model name so far. You can easily view all of the Superior X Road bikes models from 2021, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Gravel bikes average weight
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit lighter than average, X-ROAD Team Issue Di2 has a weight of 7.6 kg (16.76 lbs). In short, the average Gravel bike weight is 6.97% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
X-ROAD Team Issue Di2 components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Superior X-ROAD Team Issue Di2 2021, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Superior X-ROAD Team Issue Di2 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Superior X-ROAD Team Issue Di2 bike has 4 sizes, in the range of 165 cm – 200 cm (5.41 ft – 6.56 ft). In short, you can easily find one that suits you.
