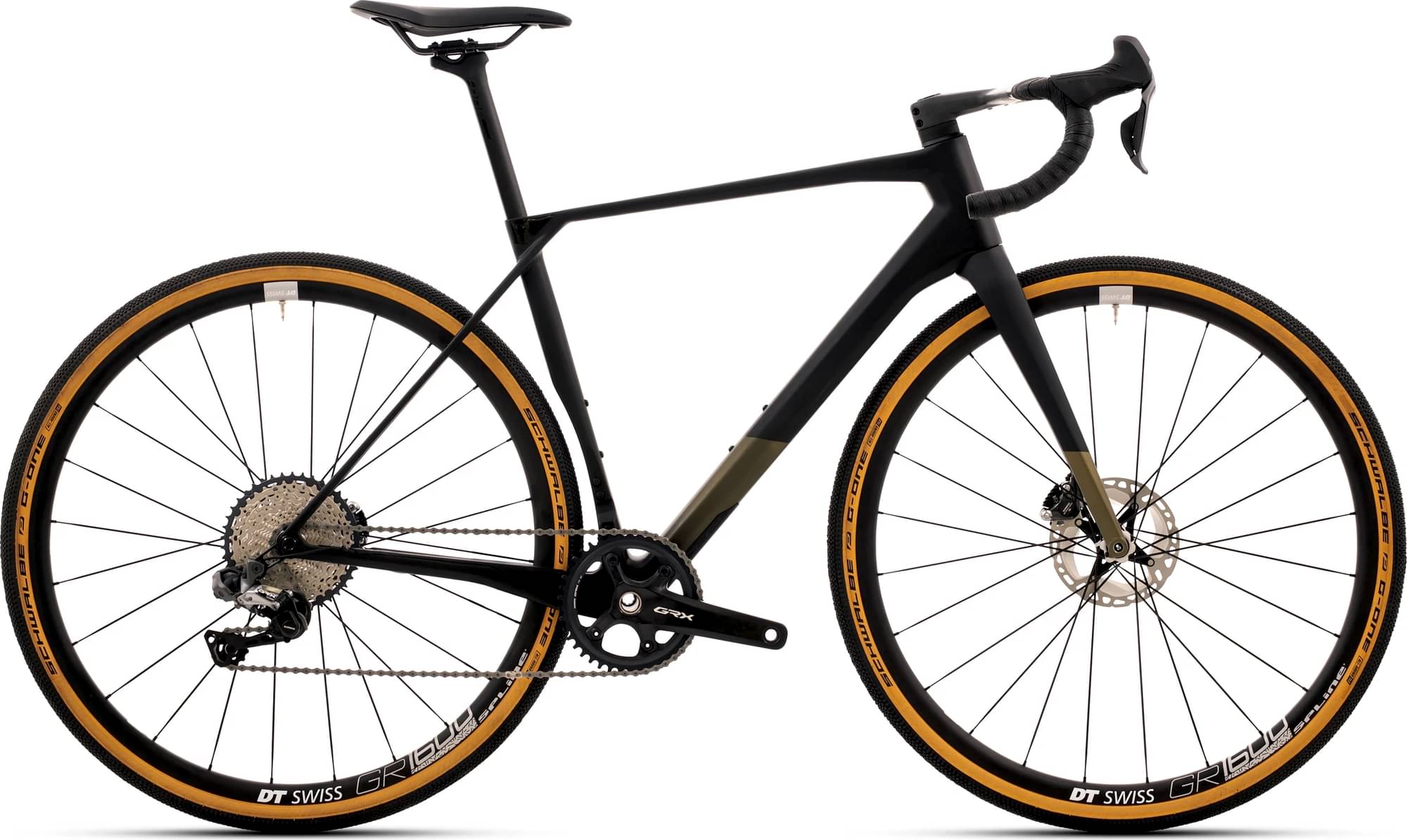

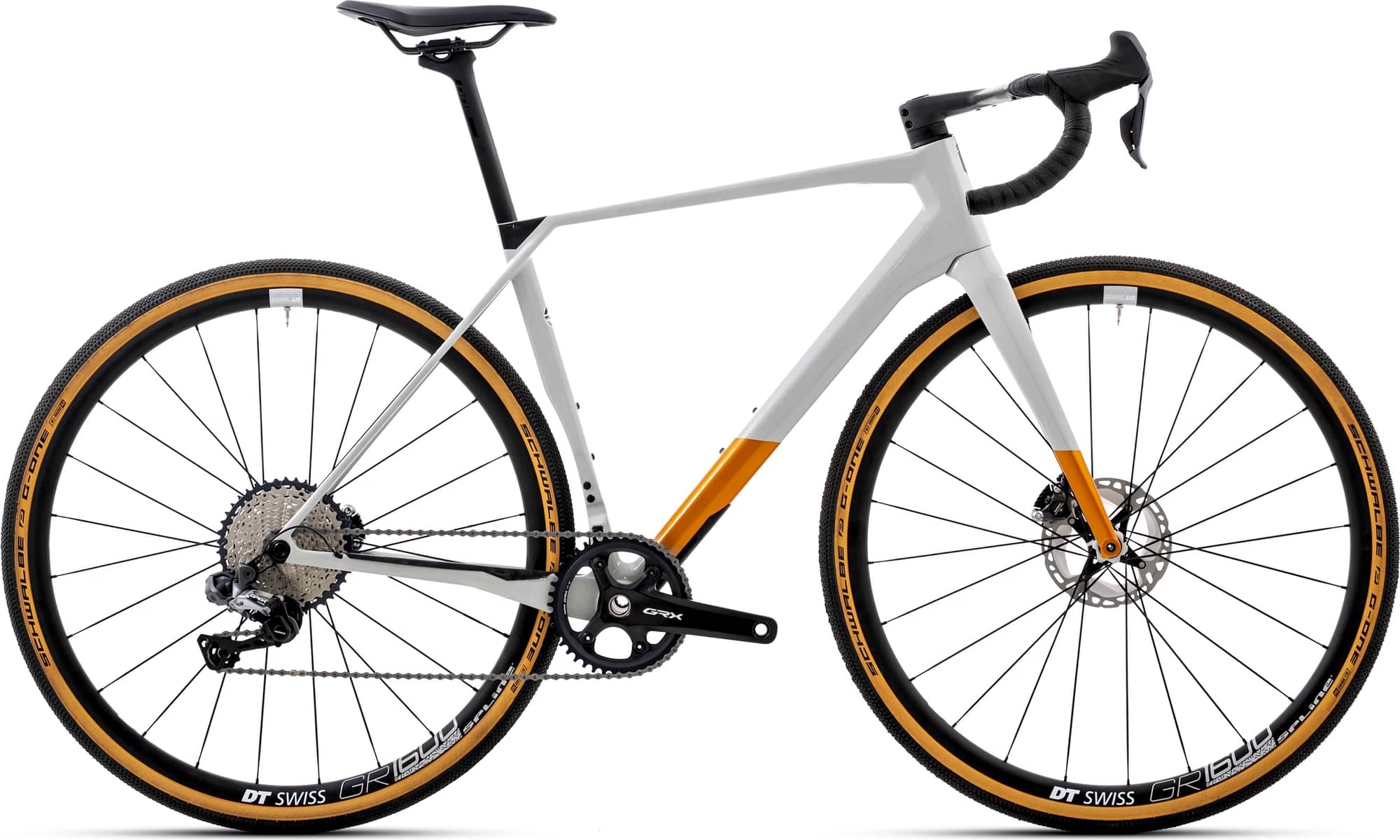

Superior X-ROAD Team Issue Di2 GR 2023
2023 Road
Estimate price |
4,357$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX Di2, GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 180cm
MD
175cm - 185cm
LG
180cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon X-Road Race Mid Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BB86.5, SH dropout, Thru Axle 142x12 mm, Inner cable routing, Di2 compatible, mudguards ready.
Suspension Fork
X-ROAD Carbon Fork
Drivetrain
Rear Derailleur
SHIMANO GRX RD-RX817, Shadow Plus Design
Shift Levers
SHIMANO GRX RX815, Di2, 11-speed
Cassette
SHIMANO SLX CS-M7000, 11-speed, 11-42T
Crank
SHIMANO GRX FC-RX810, Hollowtech II, 42T
Bottom Bracket
SHIMANO BB-RS500PB, PressFit, shell 41x86.5mm
Chain
KMC X11
Wheels
Rims
DT Swiss GR 1600 SPLINE®, CL, 12x100mm, Tubeless Ready
Tires
Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX
Brakes
Brakes
SHIMANO GRX RX815, hydraulic disc brake
Cockpit
Handlebar
ONE Carbon Integrated Cockpit ICR
Headset
ACROS AIX-525S, ICR, OD56, IS52/28.6 - 40IPS, Stainless Bearings
Seat
Saddle
Fizi:k Terra Argo X5, Alloy
Seatpost
ONE Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.48 mm | 1.47 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 594 mm | 600 mm | 614 mm | 637 mm |
| Rake | 50 mm | 50 mm | 50 mm | 51 mm |
| Trail | 67 mm | 64 mm | 61 mm | 60 mm |
| Stack | 531 mm | 551 mm | 572 mm | 591.2 mm |
| Reach | 370 mm | 374 mm | 386 mm | 402 mm |
| Top Tube Length | 526 mm | 539 mm | 563 mm | 584.6 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 462 mm | 482 mm | 502 mm | 522 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 984 mm | 990 mm | 1004 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 175 cm | 180 cm | 185 cm |
| Rider Max Height | 180 cm | 185 cm | 190 cm | 200 cm |
Model Overview
X-ROAD Team Issue Di2 GR belongs to the Superior X Road model. 40 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Superior X-ROAD Comp 2023 is the most affordable bike of this model and has a price of 1587$. On the other hand, Superior X-ROAD Team Issue R 2023, is the most expensive and costs 6988$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Superior X-ROAD Team Issue Di2 GR price was 4023$. Comparing the average cost of a Gravel bike to this one, you will see that X-ROAD Team Issue Di2 GR price is 63.4% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
X-ROAD Team Issue Di2 GR components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Superior X-ROAD Team Issue Di2 GR 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Superior X-ROAD Team Issue Di2 GR has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 170 cm – 200 cm (5.58 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
