Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST BLAZE
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6 Double Butted, Smooth Welding, Sport Geometry, Geometry, Integrated Cable Routing, BB BSA 73 mm, IDK dropout,
Suspension Fork
RST Blaze, 1-1/8", 100mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100, Shadow Design
Front Derailleur
SHIMANO ALIVIO FD-M3120-M, Side Swing, Front Pull
Shift Levers
SHIMANO ALIVIO SL-M3100, RAPIDFIRE Plus, 2-speed
Cassette
SHIMANO CS-HG200, 9-speed, 11-36T
Crank
SHIMANO FC-MT101, 36-22T
Bottom Bracket
SHIMANO BB-UN101, 122.5mm, BSA, shell 73mm
Chain
KMC X9
Pedals
Marwi SP-610
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CL, M9X100mm, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CL, M10x135mm, QR Type
Rims
STARS J25D, Disc, 32H
Spokes
SAPIM Galvanized Black
Tires
Schwalbe Smart Sam Performance, 29x1.75"
Brakes
Brakes
SHIMANO MT200, hydraulic disc brake
Cockpit
Stem
ONE Sport, Alloy, 31.8mm, -8°°
Handlebar
ONE Alloy, 12mm rise, 720mm, 31.8mm
Headset
ONE CHH1505, 1-1/8“, ZS44/28.6 - ZS56/30
Seat
Saddle
Selle Royal Vivo
Seatpost
ONE Sport, Alloy, 30,9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.55 mm |
| Bottom Bracket Height | 314 mm | 314 mm |
| Front Center | 661 mm | 684 mm |
| Rake | 49 mm | 49 mm |
| Trail | 91 mm | 91 mm |
| Stack | 621 mm | 640 mm |
| Reach | 399 mm | 414 mm |
| Top Tube Length | 576 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 457 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 120 mm |
| Chainstay Length | 448 mm | 448 mm |
| Wheelbase | 1102 mm | 1125 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |
About this model

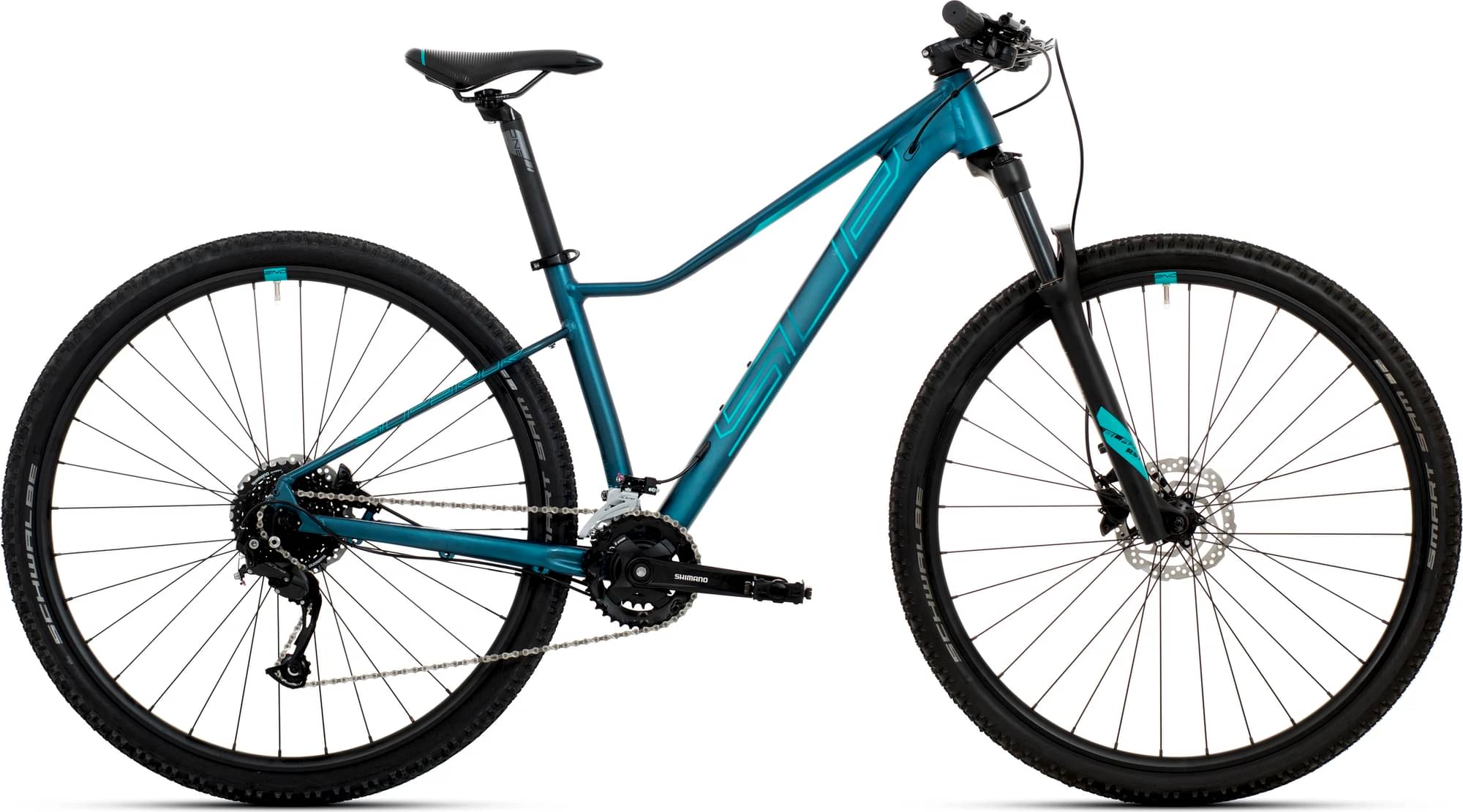

XC 859 W is a Superior Xc model. Superior released 37 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Superior XC 819 W 2023 has a starting price of 719$. Superior XC 899 2023 on the other hand is the most expensive at 1058$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Superior released this model in 2023, its price was 846$. In conclusion, this bike price is 125.18% smaller than the price of the average Crosscountry bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The RST BLAZE is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the XC 859 W bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Superior XC 859 W is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Superior XC 859 W bike has 2 sizes, in the range of 160 cm – 180 cm (5.25 ft – 5.91 ft). In conclusion, you won’t have a problem finding one that suits you.
