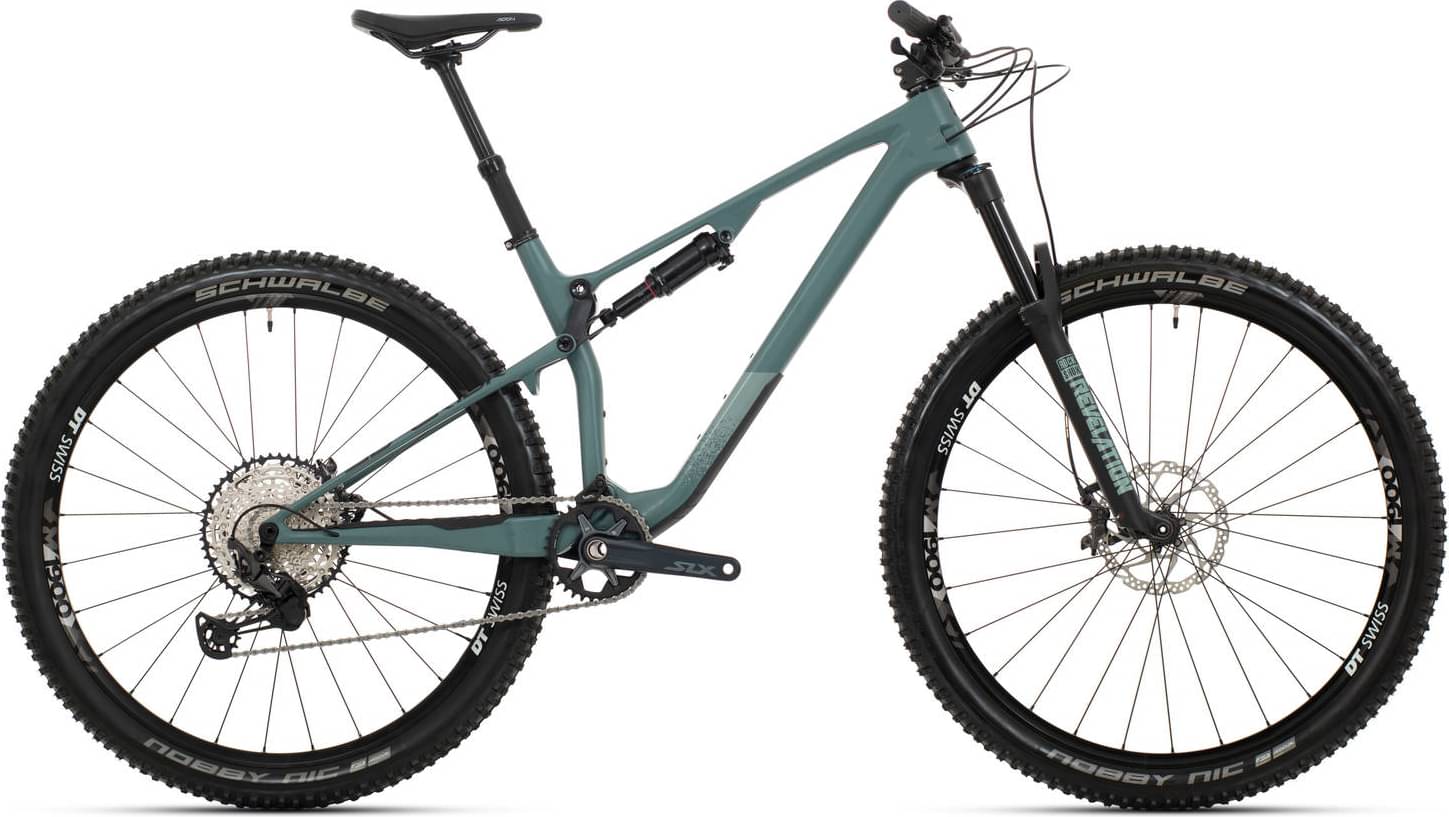

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon MTB Race Pro SU-01, Advanced Race Geometry, Travel 130 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Carbon swingarm, SR dropout, Boost Thru Axle 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox Revelation RC, Tapered, DebonAir, 15x110mm axle, 140mm travel
Rear Shock
RockShox Monarch RT, size 190x51mm, Bushing body for RockShox
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100 Shadow Plus
Shift Levers
SHIMANO SLX SL-M7100-IR RapidFire Plus, 12-speed
Cassette
SHIMANO CS-M7100-12, 10-51T
Crank
SHIMANO SLX FC-M7120 Hollowtech II, 34T
Bottom Bracket
SHIMANO BB-MT500PA PressFit, shell 41x92mm
Chain
SHIMANO DEORE CN-M6100
Wheels
Rims
DT Swiss M 1900 Spline DB30; 12x148mm, CENTER LOCK, Tubeless, DT Swiss M 1900 Spline DB30; 15x110mm, CENTER LOCK, Tubeless
Tires
Schwalbe Nobby Nic Performance, 29x2.40", ADDIX
Brakes
Brakes
SHIMANO BL-M6100/BR-M6120, hydraulic disc brake
Cockpit
Stem
ONE1 TDS-D622 Alloy, 35mm
Handlebar
ONE1 Alloy, MTB AL-3712BT, 9° backsweep, 12mm rise, 760mm, 35mm
Grips
ONE1 VLG-1907D2, ONE1 VLG-1962-11D2, Lock-On
Seat
Saddle
Saddle
Seatpost
ONE1 Alloy, MT171, dropper post, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 726 mm | 752 mm | 772 mm | 792 mm |
| Rake | 63 mm | 62 mm | 59 mm | 59 mm |
| Trail | 98 mm | 99 mm | 102 mm | 102 mm |
| Stack | 582 mm | 593 mm | 601 mm | 610 mm |
| Reach | 400 mm | 422 mm | 442 mm | 458 mm |
| Top Tube Length | 577 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1147 mm | 1173 mm | 1193 mm | 1213 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
XF 979 TR completes the Superior Xf model. 21 bikes variations carry this model name so far. Take a sneak peek at all Superior Xf bikes models from 2022, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
XF 979 TR components
Fork
Superior XF 979 TR 2022 bike is equipped with the RockShox Revelation RC fork, and has 140mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Superior XF 979 TR bike has the RockShox Monarch RT model installed, and has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the XF 979 TR model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Superior XF 979 TR bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Superior model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
