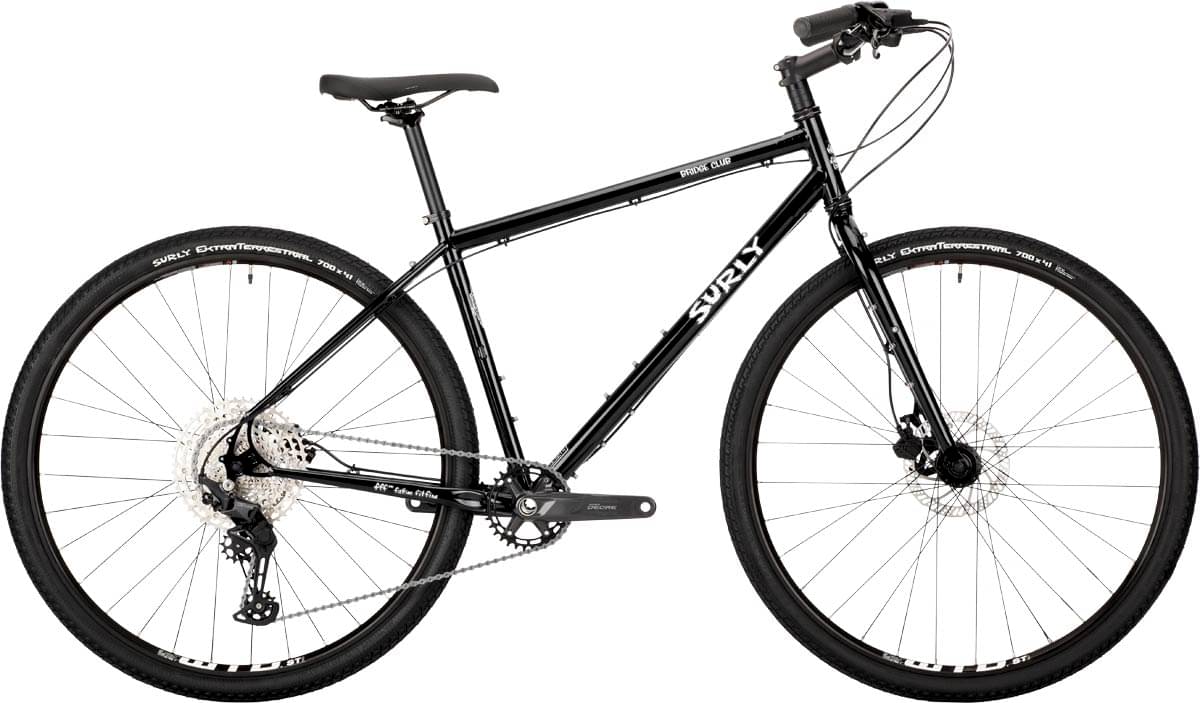

Surly Bridge Club Black, 700c 2023
2023 Road
Estimate price |
1,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Surly Bridge Club
Suspension Fork
Surly Bridge Club
Drivetrain
Rear Derailleur
Shimano Deore M5100 Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano Deore M5100 Rapid Fire
Cassette
Shimano Deore CSM5100 11-51t
Crank
Shimano Deore M5100 32t
Bottom Bracket
Shimano BSA
Chain
KMC X11 EPT
Wheels
Front Hub
Novatec 9x100 QR
Rear Hub
Novatec 9x141 QR 11-spd
Rims
WTB ST i21 TCS
Tires
Surly Extraterrestrial 700x41, 60tpi Tubeless Ready
Brakes
Brakes
Tektro HD-M275
Brake Levers
Tektro HD-M275
Cockpit
Stem
Promax, 31.8mm
Handlebar
Surly Terminal Bar, XS,S - 718mm, M,L,XL - 735m
Headset
Cane Creek 40
Seat
Saddle
WTB Volt 142
Seatpost
Promax, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.37 mm | 1.35 mm | 1.37 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 604 mm | 620 mm | 645 mm | 665 mm | 681 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 81 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Stack | 556.6 mm | 570.6 mm | 579.6 mm | 593.6 mm | 612.6 mm |
| Reach | 379.6 mm | 400.6 mm | 422.6 mm | 438.1 mm | 447.6 mm |
| Top Tube Length | 548.6 mm | 573.6 mm | 598.6 mm | 618.6 mm | 633.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 335.6 mm | 406.4 mm | 457.2 mm | 508 mm | 558.8 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 145 mm | 165 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1035 mm | 1051 mm | 1076 mm | 1096 mm | 1112 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 712 mm | 754 mm | 783 mm | 815 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Bridge Club Black, 700c is a Surly Bridge model. Surly released 9 bikes variations of this model so far. Take a sneak peek at all Surly Bridge bikes models from 2023, by clicking here.
Model range prices
Surly Bridge Club 2023 is the most affordable bike of this model and has a price of 1499$. On the other hand, Surly Bridge Club Majestic Moss and Black – 27.5 2023, is the most expensive and costs 1499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1499$. In conclusion, this bike price is 64.24% lower than the price of the average Gravel bike.
Overview of components
Wheels size
When it comes to wheels, the Bridge Club Black, 700c bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Surly Bridge Club Black, 700c bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
