Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Groupset microSHIFT Advent X -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Suspension Fork
100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Drivetrain
Rear Derailleur
Microshift M6205
Front Derailleur
N/A
Shift Levers
Microshift SB-M100A, AdventX Dual Control Levers
Crank
Samox 2PCS Boost 32t
Bottom Bracket
Samox BSA 24
Chain
KMC X10 Econo Black or NP/BLK
Wheels
Front Hub
Novatec 15x110mm, 32h
Rear Hub
Novatec 12x148mm, 32h
Tires
Teravail Ehline, 27.5 x 2.5", 60tpi
Brakes
Brakes
Tektro Mira MD-C400
Brake Levers
AdventX Dual Control Levers
Cockpit
Stem
Promax DA-296, 31.8 or Kalloy AS-007
Handlebar
Salsa Cowchipper 31.8
Headset
Cane Creek 40
Seat
Saddle
WTB Volt 142
Seatpost
TransX YSP15, 30.9, 100mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.48 mm | 1.44 mm | 1.44 mm |
| Front Center | 637 mm | 668 mm | 689 mm | 720 mm | 742 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 65 mm | 66 mm | 65 mm | 65 mm |
| Stack | 586 mm | 605 mm | 624 mm | 642 mm | 661 mm |
| Reach | 382 mm | 406 mm | 421 mm | 445 mm | 459 mm |
| Top Tube Length | 561 mm | 591 mm | 611 mm | 641 mm | 661 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 316 mm | 386 mm | 437.2 mm | 488 mm | 539 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm | 240 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1058 mm | 1089 mm | 1110 mm | 1141 mm | 1163 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 720 mm | 763 mm | 797 mm | 831 mm | 864 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 142 cm | 152 cm | 165 cm | 175 cm | 185 cm |
Model Overview

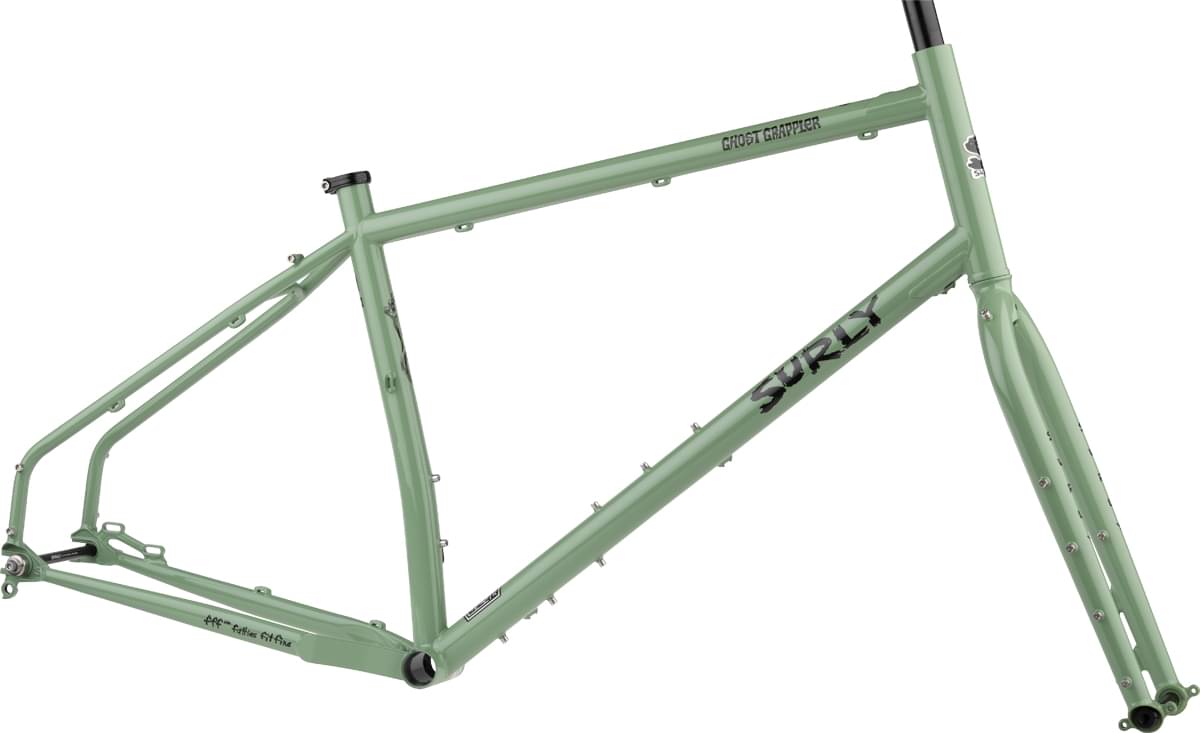

Ghost Grappler Frameset belongs to the Surly Ghost model. 2 frames variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Touring frames average price
According to our calculations, the average cost of a Touring frame that is reliable is 535$. However, you could also get a good Touring frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2022 and its price was 799$. If we compare this with the average Touring frame cost we notice that the price is 49.35% higher.
Ghost Grappler Frameset components
Fork material
Ghost Grappler Frameset has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Surly Ghost Grappler Frameset is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Dropper post
Surly Ghost Grappler Frameset comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
