Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" -
Groupset SLX, Deore -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Surly Ice Cream Truck, 100% Surly 4130 CroMoly steel. ED coated. Triple-butted main triangle. TIG-welded
Suspension Fork
Surly Ice Cream Truck, 1-1/8" straight steerer with tapered straight blade, 4130 CroMoly. 483mm axle to crown, 47mm offset. 51mm IS front standard disc mount. 150mm x 15mm thru axle dropouts (axle included).
Drivetrain
Rear Derailleur
Shimano SLX RD-M675-D
Front Derailleur
Shimano Deore FD-M616D
Shift Levers
Shimano Deore SL-M610
Cassette
Microshift 11/36
Crank
Surly O.D. 22/36t
Bottom Bracket
Surly Pressfit Bottom Bracket PF41/132
Chain
KMC x10RB
Wheels
Front Hub
Salsa 150x15 32h
Rear Hub
Salsa 197x12 32h
Rims
Surly My Other Brother Darryl
Tires
Surly Bud & Lou, 4.8", 120tpi
Brakes
Brakes
SRAM Level T
Brake Levers
SRAM Level T
Cockpit
Stem
HL 4 bolt 31.8mm
Handlebar
Answer ProTaper
Headset
Cane Creek 40, ZS44/EC44
Seat
Saddle
WTB Volt
Seatpost
HL SP-218 2 bolt 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.47 mm | 1.41 mm | 1.36 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 657 mm | 672 mm | 697 mm | 712 mm | 727 mm | 743 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 88 mm | 88 mm | 88 mm | 88 mm | 89 mm | 88 mm |
| Stack | 592.6 mm | 592.6 mm | 601.8 mm | 601.8 mm | 611.1 mm | 611.1 mm |
| Reach | 389 mm | 404 mm | 426 mm | 441 mm | 453.1 mm | 468.1 mm |
| Top Tube Length | 575.6 mm | 590.6 mm | 615.6 mm | 630.6 mm | 645.6 mm | 660.6 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 298.6 mm | 376.4 mm | 427.2 mm | 478 mm | 528.8 mm | 528.8 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1100 mm | 1115 mm | 1141 mm | 1156 mm | 1171 mm | 1187 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 711 mm | 744 mm | 779 mm | 808 mm | 840 mm | 840 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |

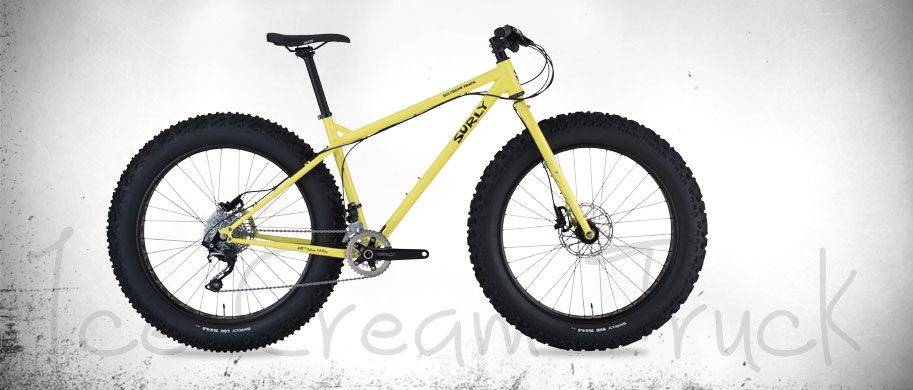

About this model
Ice Cream Truck is part of the Surly Ice model. 12 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fatbike bikes average price
If you want an acceptable Fatbike bike you should know that the average price is 1743$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fatbike bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
Ice Cream Truck has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
When leaving the production line, the Ice Cream Truck model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Surly Ice Cream Truck bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
