Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" / 29" -
Groupset NX -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
XS
156cm - 166cm
SM
163cm - 174cm
SM
163cm - 174cm
MD
171cm - 182cm
MD
171cm - 182cm
LG
179cm - 189cm
LG
179cm - 189cm
XL
185cm - 195cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Horizontal slotted with derailleur hanger; Surly “Gnot Boost” 135, 142, and/or 148mm hub spacing compatibility
Suspension Fork
483mm axle-to-crown x 47mm offset, 110mm hub spacing, tapered and butted straight blade, 4130 CroMoly. 51mmI.S. disc mount
Drivetrain
Rear Derailleur
None
Front Derailleur
None
Shift Levers
None
Cassette
Surly 17t cog w/Surly spacer kit
Crank
SRAM Nx 30t
Bottom Bracket
73mm
Chain
KMC X11
Wheels
Front Hub
Salsa 110mm, 15mm thru-axle, 32h
Rear Hub
Salsa 148mm, 12mm thru-axle, 32h
Rims
Alex Draw 2.1
Tires
Maxxis Ardent 29 x 2.4, 60 tpi
Brakes
Brakes
Hayes Mx Comp
Brake Levers
SRAM FR5 w/Jagwire compression-less housing
Cockpit
Stem
H.L. 4-bolt, 31.8mm
Handlebar
Answer Pro Taper
Headset
Cane Creek
Seat
Saddle
WTB Volt Sport
Seatpost
H.L. 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.59 mm | 1.49 mm | 1.49 mm | 1.4 mm | 1.4 mm | 1.35 mm | 1.35 mm | 1.3 mm | 1.3 mm |
| Bottom Bracket Height | 288 mm | 319 mm | 288 mm | 319 mm | 288 mm | 319 mm | 288 mm | 319 mm | 288 mm | 319 mm |
| Front Center | 636 mm | 636 mm | 661 mm | 661 mm | 686 mm | 686 mm | 712 mm | 712 mm | 738 mm | 738 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 83 mm | 96 mm | 83 mm | 96 mm | 83 mm | 96 mm | 83 mm | 96 mm | 83 mm | 96 mm |
| Stack | 595 mm | 595 mm | 595 mm | 595 mm | 595 mm | 595 mm | 604 mm | 604 mm | 613 mm | 613 mm |
| Reach | 375 mm | 375 mm | 400 mm | 400 mm | 425 mm | 425 mm | 448 mm | 448 mm | 470 mm | 470 mm |
| Top Tube Length | 558 mm | 558 mm | 583 mm | 583 mm | 608 mm | 608 mm | 633 mm | 633 mm | 658 mm | 658 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 330 mm | 368 mm | 368 mm | 419 mm | 419 mm | 470 mm | 470 mm | 521 mm | 521 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1051 mm | 1051 mm | 1076 mm | 1076 mm | 1101 mm | 1101 mm | 1127 mm | 1127 mm | 1153 mm | 1153 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 741 mm | 741 mm | 757 mm | 757 mm | 781 mm | 781 mm | 810 mm | 810 mm | 825 mm | 825 mm |
| Wheels | 26" | 29" | 26" | 29" | 26" | 29" | 26" | 29" | 26" | 29" |
| Rider Min Height | 156 cm | 156 cm | 163 cm | 163 cm | 171 cm | 171 cm | 179 cm | 179 cm | 185 cm | 185 cm |
| Rider Max Height | 166 cm | 166 cm | 174 cm | 174 cm | 182 cm | 182 cm | 189 cm | 189 cm | 195 cm | 195 cm |
About this model

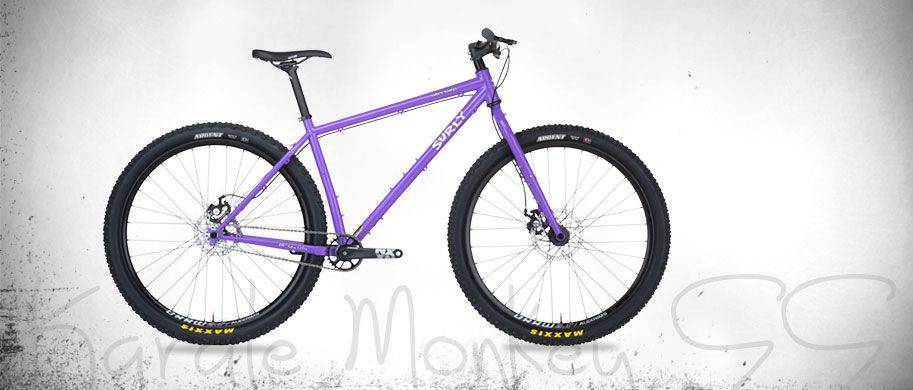

Karate Monkey SS completes the Surly Karate model. There are 18 bikes that carry this model name. You can easily view all of the Surly Karate bikes models from 2018, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
The wheels on Karate Monkey SS are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Karate Monkey SS comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 10 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
