Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
Suspension Fork
100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100
Front Derailleur
N/A
Shift Levers
Shimano Deore SL-M6100
Cassette
OE 12-spd, 11-51t
Crank
Shimano Deore MT510
Bottom Bracket
Shimano
Chain
KMC X12 Anti-Rust
Wheels
Front Hub
Novatec 15x110, 32h, 6-bolt
Rear Hub
Novatec 12x148, 32h, 6-bolt
Rims
WTB ST i40 TCS 2.0
Tires
Surly Dirt Wizard 29 x 3", 60tpi, Tubeless Ready
Brakes
Brakes
Avid BB5 mechanical, 180F/160R
Brake Levers
SRAM FR5
Cockpit
Stem
Kalloy 31.8
Handlebar
Salsa Rustler 31.8
Grips
Velo Black
Headset
Cane Creek
Seat
Saddle
Selle Italia
Seatpost
Kalloy, 30.9, 400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.45 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 668 mm | 693 mm | 719 mm | 745 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 93 mm | 94 mm | 94 mm |
| Stack | 599 mm | 609 mm | 618 mm | 628 mm |
| Reach | 399 mm | 421 mm | 444 mm | 466 mm |
| Top Tube Length | 589 mm | 614 mm | 639 mm | 664 mm |
| Seat Tube Angle | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° |
| Seat Tube Length | 368 mm | 419 mm | 470 mm | 521 mm |
| Head Tube Angle | 68.4 ° | 68.4 ° | 68.4 ° | 68.4 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1098 mm | 1123 mm | 1149 mm | 1175 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 778 mm | 805 mm | 834 mm | 863 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

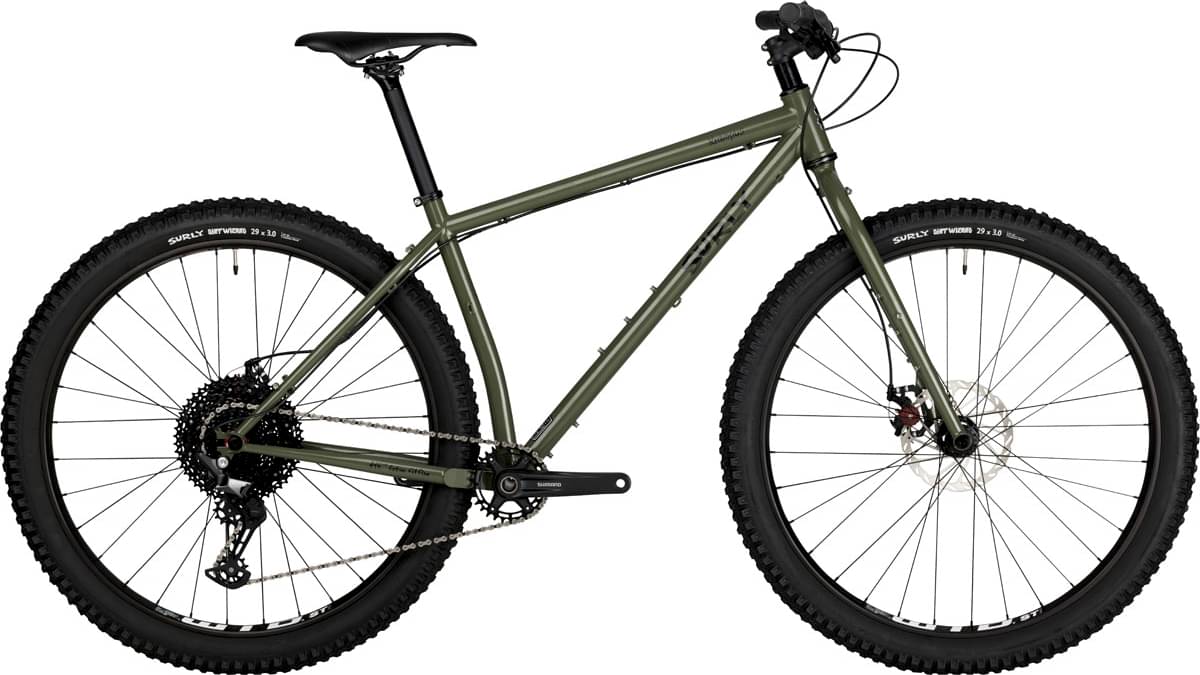

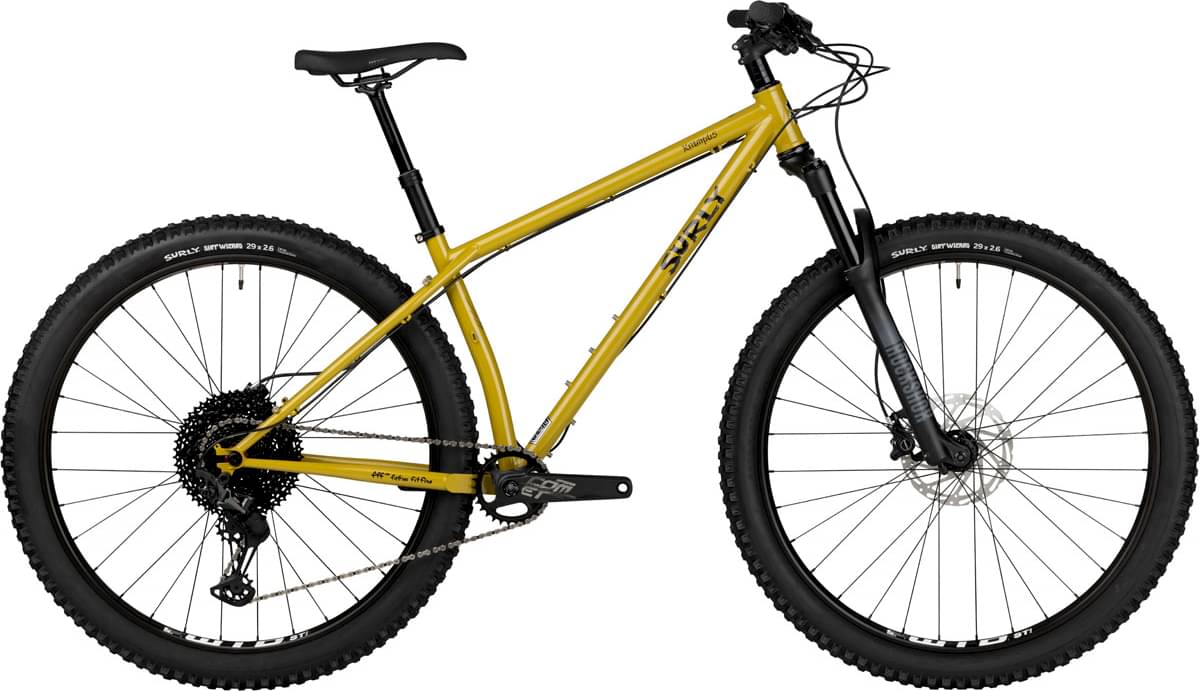

Krampus completes the Surly Krampus model. Surly released 12 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2599$. If we compare this with the average Trail bike cost we notice that the price is 6.27% lower.
Krampus components
Fork material
Krampus has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
When it comes to wheels, the Krampus bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Krampus has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
