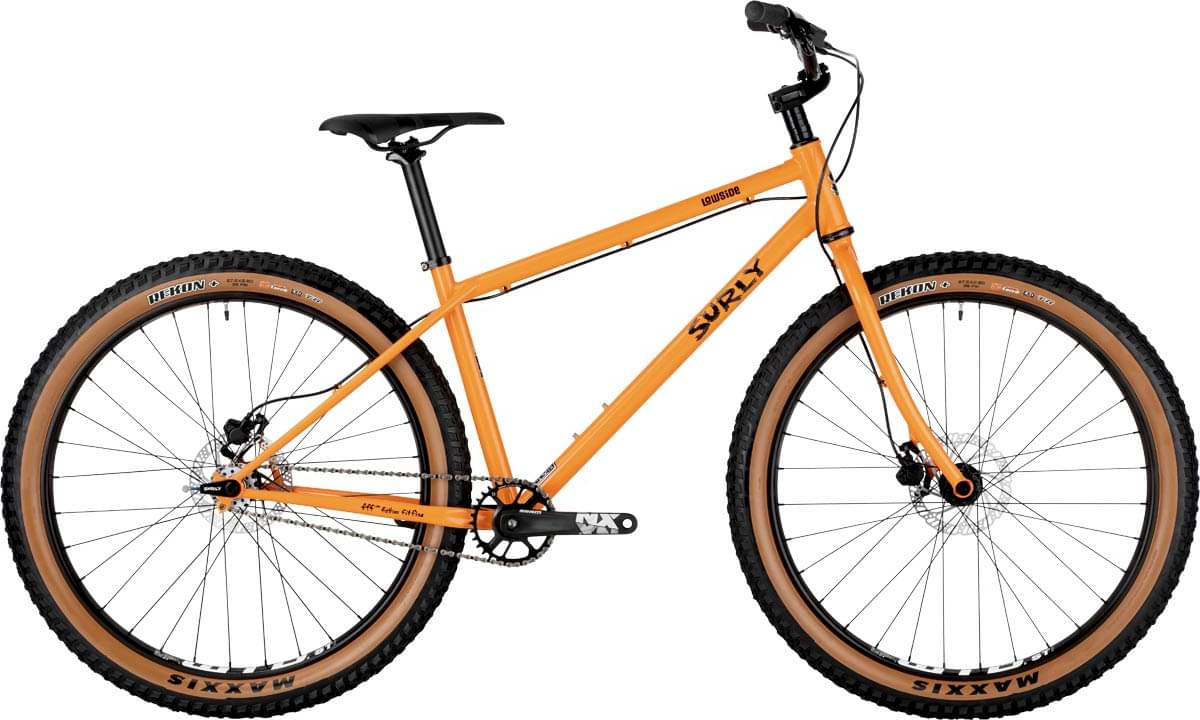

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Groupset NX -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Surly Lowside Frame, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Suspension Fork
Surly Lowside Fork, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Surly 17t w/ spacer kit
Crank
SRAM NX 32t
Bottom Bracket
SRAM PS
Chain
KMC X10
Wheels
Front Hub
Novatec 15x110
Rear Hub
Novatec 12x148
Rims
WTB ST i35 TCS
Tires
Maxxis Rekon+ 27.5x2.8 60tpi
Brakes
Brakes
Tektro Hydro M275/276
Brake Levers
Tektro
Cockpit
Stem
Sunday Freeze top load 22.2mm clamp
Handlebar
Surly Sunrise
Headset
Cane Creek
Seat
Saddle
Selle Italia Black
Seatpost
2 Bolt, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.3 mm | 1.29 mm | 1.28 mm | 1.26 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 649 mm | 670 mm | 691 mm | 712 mm | 733 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Stack | 543.2 mm | 561.3 mm | 575.4 mm | 589.5 mm | 603.5 mm |
| Reach | 415.5 mm | 430.3 mm | 446.3 mm | 462 mm | 478 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm | 631 mm | 651 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 316 mm | 366 mm | 416 mm | 466 mm | 516 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1069 mm | 1090 mm | 1111 mm | 1132 mm | 1153 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 701 mm | 730 mm | 763 mm | 793 mm | 824 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 152 cm | 165 cm | 175 cm | 185 cm |
About this model
Lowside belongs to the Surly Lowside model. 8 bikes variations carry this model name so far. Take a sneak peek at all Surly Lowside bikes models from 2023, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 1499$. Doing a quick comparison, we notice that Lowside price is 84.26% lower than the average cost of a Trail bike.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When it comes to wheels, the Lowside bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Surly Lowside has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
