Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Steel -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Surly 4130 CroMoly steel. Main triangle double-butted. TIG-welded
Suspension Fork
4130 CroMoly, lugged and brazed. Sloping crown, tapered and butted curved blades with dual dropout eyelets
Drivetrain
Bottom Bracket
68mm wide, threaded English 1.37? x 24t
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.36 mm | 1.34 mm | 1.34 mm | 1.38 mm | 1.41 mm | 1.42 mm | 1.46 mm | 1.48 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 582 mm | 584 mm | 586 mm | 588 mm | 589 mm | 594 mm | 604 mm | 609 mm | 619 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 60 mm | 57 mm | 54 mm | 59 mm | 56 mm | 53 mm | 53 mm | 50 mm |
| Stack | 501.9 mm | 517.8 mm | 519.5 mm | 526 mm | 542.4 mm | 560.4 mm | 579.3 mm | 595.6 mm | 614.7 mm |
| Reach | 380.4 mm | 381.4 mm | 388 mm | 392 mm | 392.5 mm | 397.6 mm | 406.6 mm | 406.8 mm | 416.1 mm |
| Top Tube Length | 511.5 mm | 517.3 mm | 529.4 mm | 543 mm | 558 mm | 568 mm | 582.4 mm | 593 mm | 608 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm | 620 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 84 mm | 99 mm | 99 mm | 104 mm | 119 mm | 136 mm | 154 mm | 171 mm | 189 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 983 mm | 985 mm | 988 mm | 990 mm | 995 mm | 1001 mm | 1011 mm | 1016 mm | 1026 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 726 mm | 747 mm | 767 mm | 778 mm | 796 mm | 814 mm | 833 mm | 851 mm | 870 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

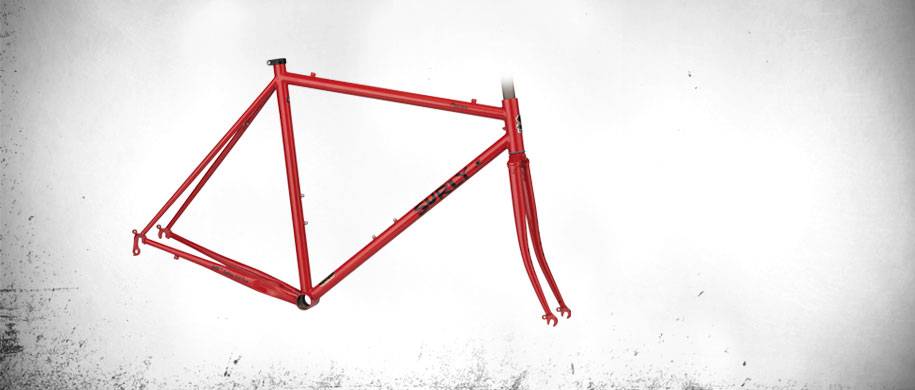

Pacer Frameset completes the Surly Pacer model. Surly released 4 frames variations of this model so far. You can easily view all of the Surly Pacer frames models from 2017, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
General Road frames average price
According to our math, the average price for a trustworthy General Road frame is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Road frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
General Road frames average weight
The average weight for General Road frames is 1.38 kg (3.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 1 kg (2.2 lbs), Surly frame is much lighter than average. In conclusion, the average General Road frame weighs 38% more than Pacer Frameset.
Overview of components
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the frame.
