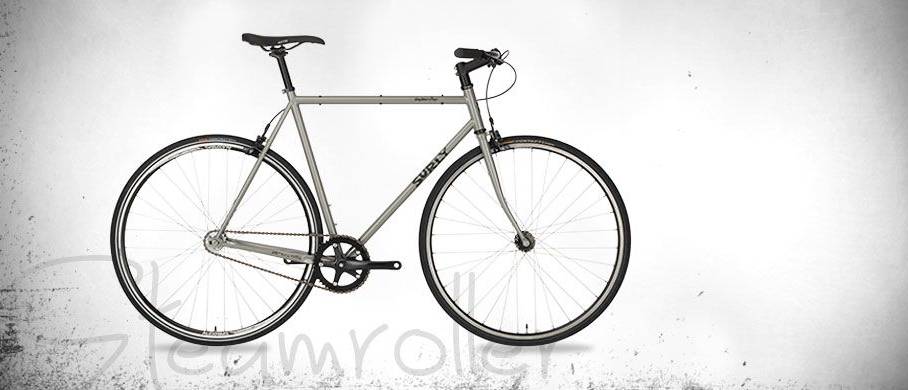

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Surly Steamroller 100% 4130 CroMoly steel. Double-butted main triangle . TIG-welded. ED Coated
Suspension Fork
4130 CroMoly, lugged and brazed flat crown that is drilled to accept a standard-reach (47–57mm) caliper brake. It has clearance for 700c x 38mm tires. There are no eyelets at the dropouts
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Lida, 18t 3/32"
Crank
Samox AF19-D45S, 45t
Bottom Bracket
68mm wide, threaded English 1.37? x 24t
Chain
KMC Z610H
Wheels
Front Hub
Surly Ultra New 32h, 100mm Black with bolts
Rear Hub
Surly Ultra New 32h, Fix/Free, 120mm, Black with bolts
Rims
Alex Adventurer 2
Tires
Continental Contact 700c x 32mm
Brakes
Brakes
Tektro R539 road caliper
Brake Levers
Tektro CL-520-RS, black
Cockpit
Stem
HL 25.4
Handlebar
Dimension Arc
Headset
Cane Creek custom 5 series
Seat
Saddle
WTB Volt Sport
Seatpost
ProMax SP-2010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 53cm | 56cm | 59cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.3 mm | 1.34 mm | 1.38 mm | 1.43 mm | 1.46 mm |
| Front Center | 578 mm | 579 mm | 591 mm | 600 mm | 621 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 62 mm | 67 mm | 64 mm | 61 mm | 61 mm |
| Stack | 509.9 mm | 536.3 mm | 563.8 mm | 591.4 mm | 623.1 mm |
| Reach | 393.1 mm | 399 mm | 407.3 mm | 413.2 mm | 425.6 mm |
| Top Tube Length | 534.5 mm | 552 mm | 573 mm | 592 mm | 613 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 530 mm | 560 mm | 590 mm | 620 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 83 mm | 109 mm | 136 mm | 163 mm | 196 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm |
| Wheelbase | 970 mm | 971 mm | 983 mm | 993 mm | 1014 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 753 mm | 785 mm | 812 mm | 840 mm | 870 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Steamroller completes the Surly Steamroller model. 8 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hipster bikes average price
According to our math, the average price for a trustworthy Hipster bike is 612$. However, this doesn’t mean that if you spend less money on a Hipster bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The Steamroller 2018 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Steamroller has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
