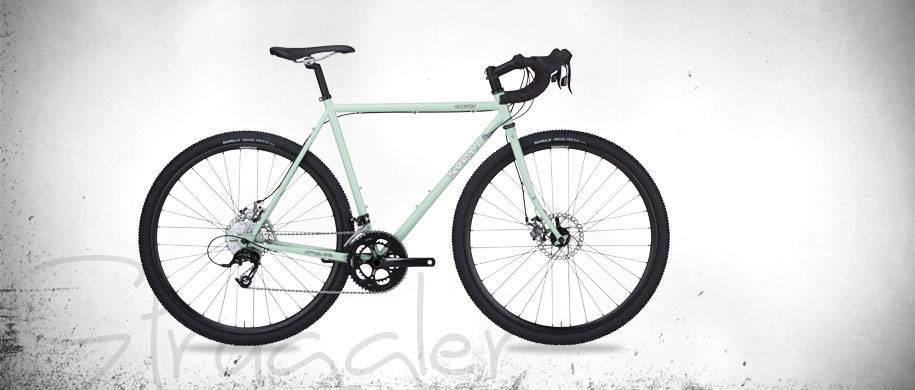

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Apex -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Surly Straggler, 100% Surly proprietary 4130 CroMoly tubing. ED Coated. TIG-welded. Double-butted main triangle
Suspension Fork
Surly Straggler, 4130 CroMoly, disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets
Drivetrain
Rear Derailleur
SRAM Apex WiFLi
Front Derailleur
SRAM Apex
Shift Levers
SRAM Apex, DoubleTap® shifter
Cassette
Microshift 11–32t, 10-speed
Crank
SRAM Apex, 50/34t
Bottom Bracket
68mm wide, standard English threaded 1.37 x 24t
Chain
KMC X10, chainy
Wheels
Front Hub
Formula RX25 Disc, 32h. 100mm, black w/QR
Rear Hub
Formula RX2611 Disc, 32h. 135mm, black w/QR
Rims
Alex XD-E Lite
Tires
Surly Knard 700c x 41, 27tpi
Brakes
Brakes
Hayes CX-expert, V-series 160mm rotors front & rear
Brake Levers
SRAM Apex
Cockpit
Stem
H.L. 31.8mm
Handlebar
Salsa Cowbell
Headset
Cane Creek 40
Seat
Saddle
Velo VL-1353
Seatpost
Kalloy SP-368 non-offset (42–50cm); Kalloy SP-248D offset (52–64cm), 27.2 x 300mm, black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.41 mm | 1.45 mm | 1.48 mm | 1.49 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 592 mm | 602 mm | 612 mm | 627 mm | 637 mm | 652 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 535 mm | 550.2 mm | 568.3 mm | 592.1 mm | 610.1 mm | 629.2 mm |
| Reach | 391.8 mm | 397.3 mm | 401.7 mm | 409.2 mm | 413.1 mm | 421.9 mm |
| Top Tube Length | 551 mm | 566 mm | 581 mm | 596 mm | 611 mm | 626 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm | 620 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 91 mm | 107 mm | 121 mm | 146 mm | 165 mm | 185 mm |
| Chainstay Length | 426 mm | 426 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1007 mm | 1017 mm | 1032 mm | 1048 mm | 1057 mm | 1072 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 778 mm | 792 mm | 810 mm | 829 mm | 847 mm | 866 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Straggler belongs to the Surly Straggler model. There are 16 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
Straggler has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
The wheels on Straggler are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Surly Straggler is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
