Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 26" -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Horizontal slotted with derailleur hanger; Surly “Gnot Boost” 135, 142, and/or 148mm hub spacing compatibility
Suspension Fork
420mm axle-to-crown x 43mm offset, tapered and butted straight blade, 4130 CroMoly. 420mm axle-to-crown x 43mm offset, tapered and butted straight blade, 4130 CroMoly. 51mm I.S. disc mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.42 mm | 1.37 mm | 1.35 mm | 1.35 mm |
| Front Center | 594 mm | 619 mm | 644 mm | 664 mm | 686 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 59 mm | 59 mm | 59 mm | 60 mm | 60 mm |
| Stack | 555 mm | 565 mm | 574 mm | 589 mm | 608 mm |
| Reach | 375 mm | 397 mm | 419 mm | 435 mm | 450 mm |
| Top Tube Length | 549 mm | 574 mm | 599 mm | 619 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 336 mm | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 145 mm | 160 mm | 180 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1020 mm | 1045 mm | 1070 mm | 1090 mm | 1112 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 724 mm | 753 mm | 782 mm | 813 mm | 847 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

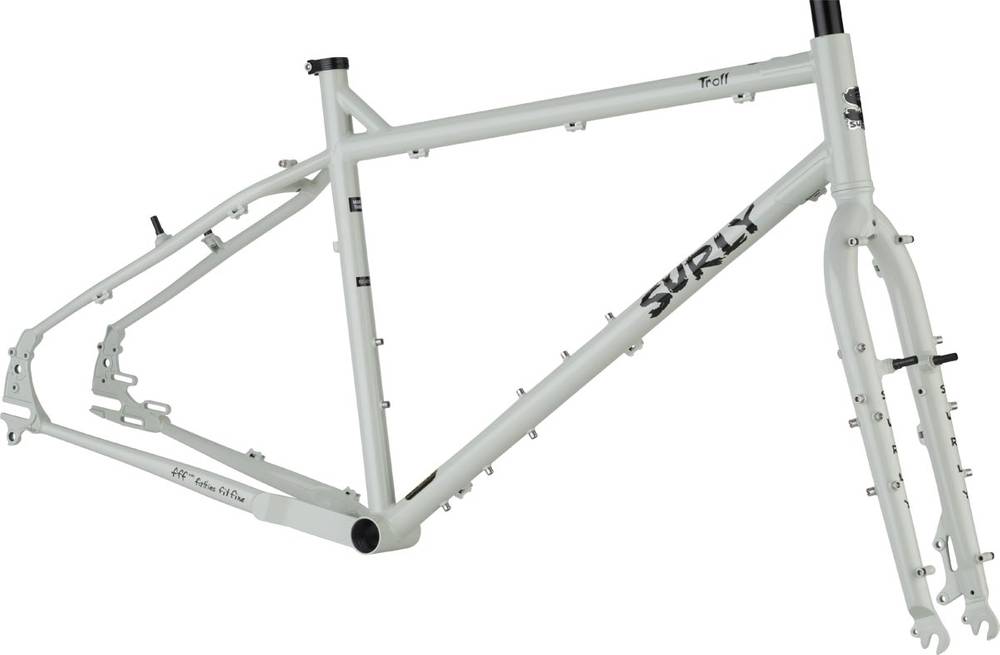

Troll Frameset completes the Surly Troll model. 7 frames variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Touring frames average price
If you want to purchase a solid Touring frame, it is important to know that the average cost is 535$. However, this doesn’t mean that if you spend less money on a Touring frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 675$. If we compare this with the average Touring frame cost we notice that the price is 26.17% more expensive.
Overview of components
Fork material
Troll Frameset has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the frame.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
