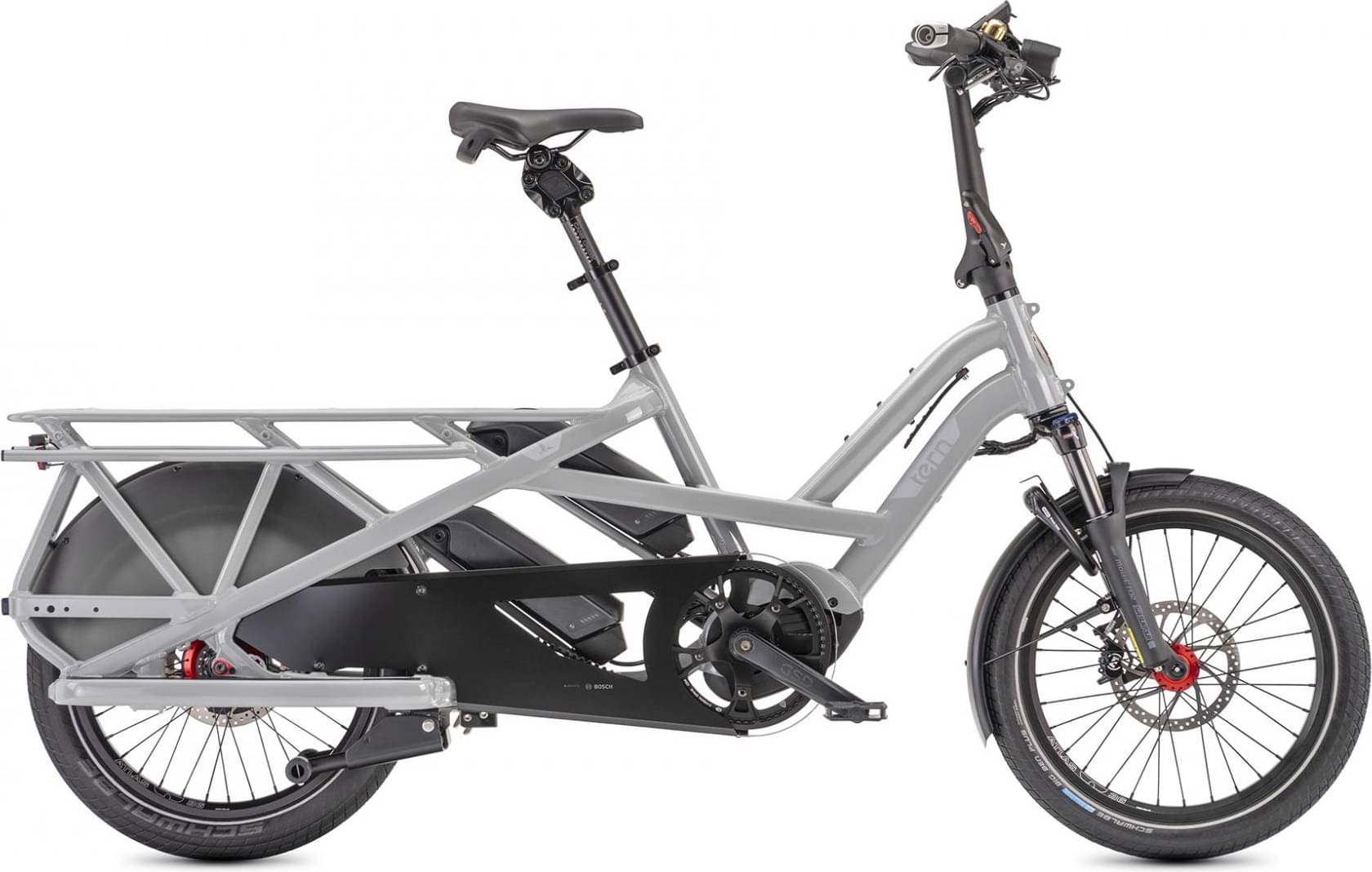

Tern GSD R14 2022
2022 E-bike
Estimate price |
10,585$
Weight | 37.26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 20" -
Travel Front 70mm -
Fork Suntour
-
Suspension Hardtail -
Motor Bosch 85Nm mid-drive -
Battery Bosch Dual Battery system, 500 Wh or 1000 Wh -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Drivetrain
Shift Levers
Rohloff E14, e-shift 14 spd
Cassette
Gates CDX, precision CNC machined cog
Crank
Tern GSD custom, Gates CDX CNC machined beltring
Bottom Bracket
Motor integrated
Chain
Gates Carbon Drive CDX belt
Chain Guide
Tern Custom, full chain cover
Pedals
Urban with non-slip surface, sealed bearings
Wheels
Front Hub
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Rear Hub
Rohloff E14, 526% range, Boost
Rims
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Brakes
Brakes
hydraulicDisc
Brake Levers
Magura MT5 e-stop, hydraulic, with brake sensor
Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Seat
Saddle
Tern GSD by Velo, with rear handle
Seatpost
Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Motor & Battery
Motor
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch Dual Battery system, 500 Wh or 1000 Wh
Model Overview
GSD R14 is part of the Tern E Gsd model. Tern launched 16 e-bikes of this model so far. You can easily view all of the Tern E Gsd e-bikes models from 2022, here.
Model range prices
Tern GSD S10 LX 2022 is the most economical model, with a starting price of 5799$. Tern GSD R14 2022 on the other hand costs 9661$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Long Tail Cargo e-bikes
If you want an acceptable Long Tail Cargo e-bike you should know that the average price is 3082$. However, this doesn’t mean that if you spend less money on a Long Tail Cargo e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 9661$. In conclusion, this e-bike price is 213.47% more expensive than the price of the average Long Tail Cargo e-bike.
Average weight for Long Tail Cargo e-bikes
Long Tail Cargo e-bikes have an average weight of 32.16 kg (70.9 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 37.26 kg (82.14 lbs), Tern e-bike is much heavier than average. In other words, this model is 15.86% heavier than the average Long Tail Cargo e-bike.
Overview of components
Fork
Tern GSD R14 2022 e-bike is equipped with the Suntour fork, and has 70mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
The GSD R14 2022 e-bike is equipped with 20″ aluminum wheels when leaving the factory. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
When you want to stop the bike in time, the brakes are vital. The GSD R14 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike has one size only, so it might not fit you. In conclusion, double-check its size to make sure it’s a good fit for you.
