Tern GSD R14 2023
Bike details
Key information split into simple groups.
Bike summary
-
Category
-
Frame Aluminum
-
Wheels 20"
-
Travel Front 70mm
-
Fork Suntour
-
Groupset Gates CDX
-
Suspension Hardtail
-
Motor Bosch 85Nm mid-drive
-
Battery Bosch Dual Battery system, 500 Wh or 1000 Wh
-
Drivetrain Belt Drive
-
Brakes Hydraulic Disc
Parts list
Main components, grouped by system.
Bike components
Frame
Frame
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Drivetrain
Shift Levers
Rohloff E14, e-shift 14 spd
Cassette
Gates CDX, precision CNC machined cog
Crank
Tern GSD custom, Gates CDX CNC machined beltring
Bottom Bracket
Motor integrated
Chain
Gates Carbon Drive CDX belt
Chain Guide
Tern Custom, full chain cover
Pedals
Urban with non-slip surface, sealed bearings
Wheels

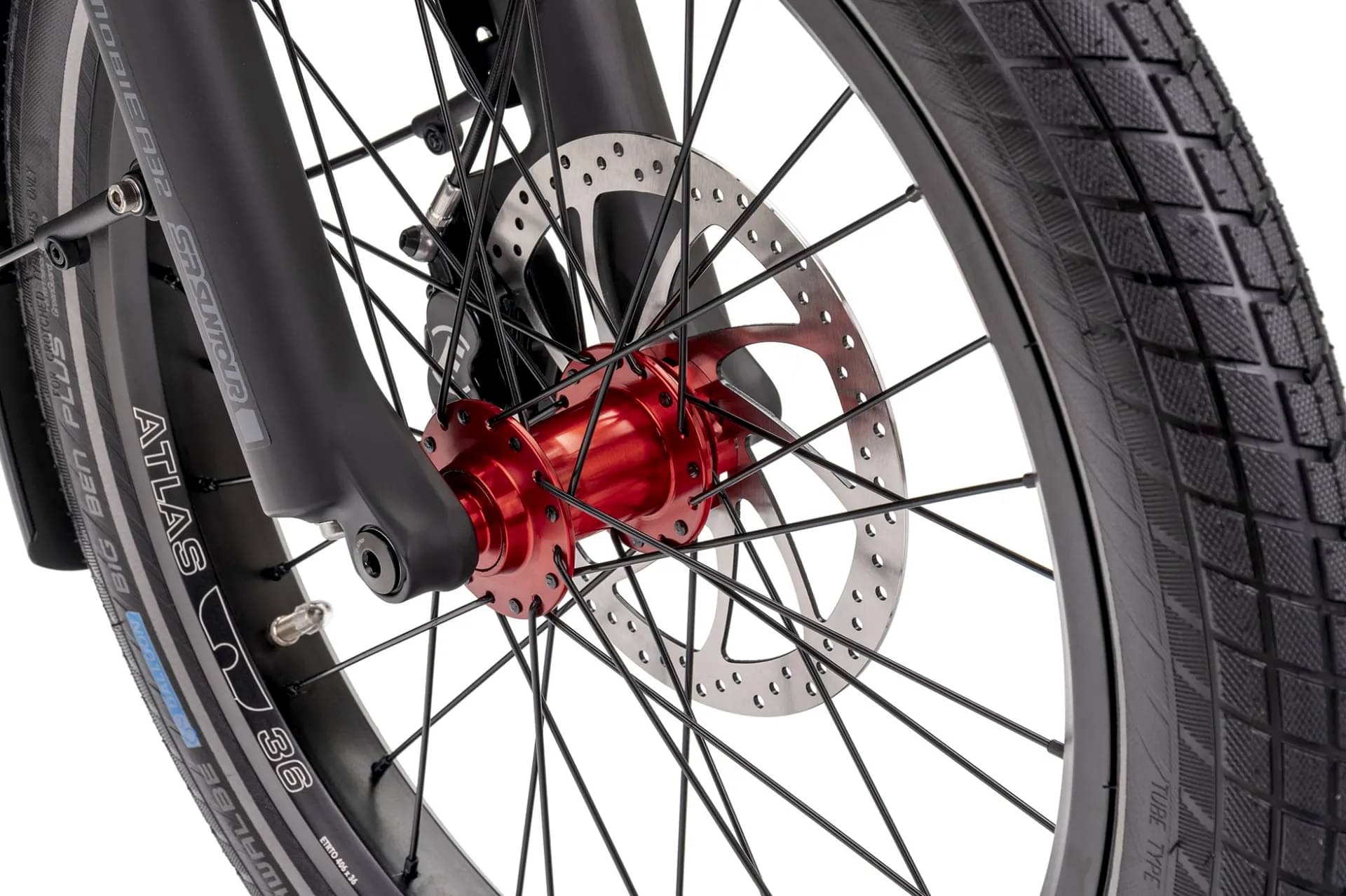

Front Hub
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing

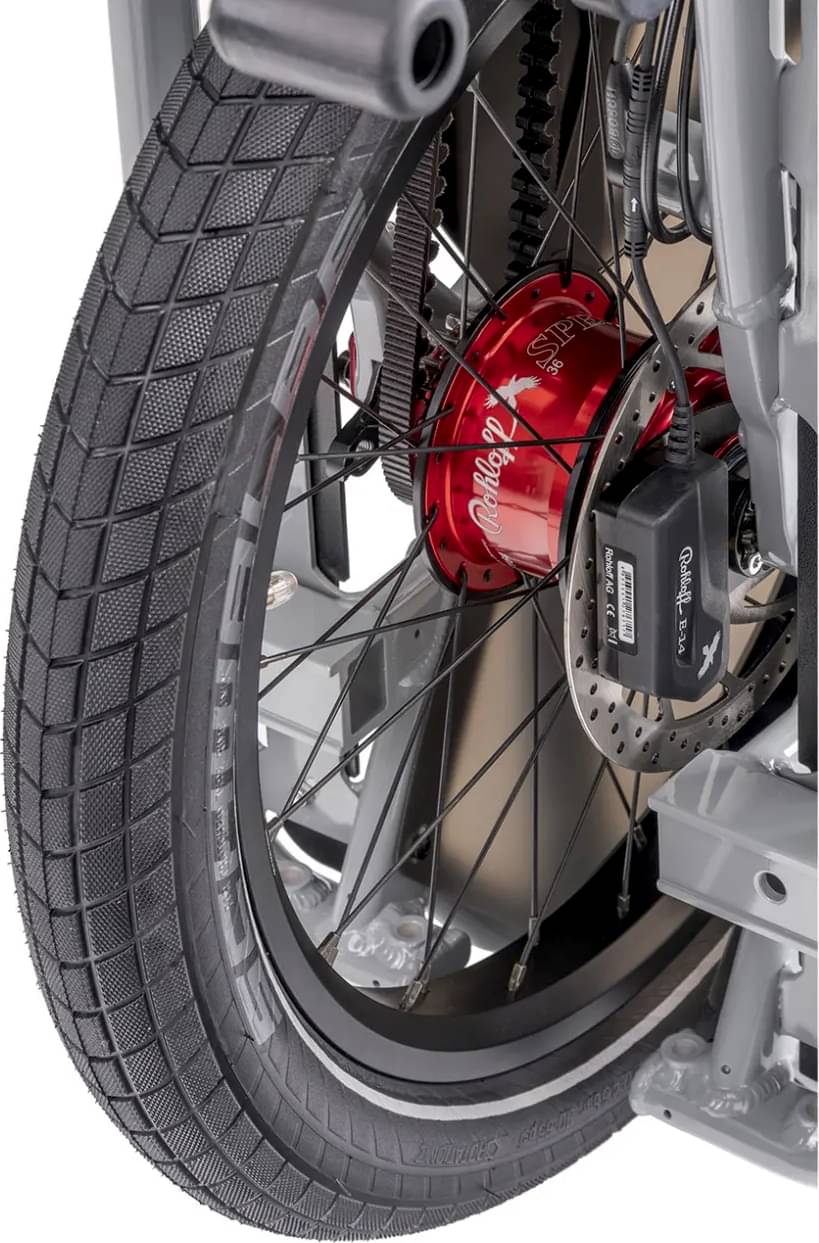

Rear Hub
Rohloff E14, 526% range, Boost
Rims
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Brakes
Brakes
Hydraulic Disc
Brake Levers
Magura MT5 e-stop, hydraulic, with brake sensor
Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Seat
Saddle
Tern GSD by Velo, with rear handle
Seatpost
Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Motor & Battery
Motor
Class 1, Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch Dual Battery system, 500 Wh or 1000 Wh
Model Overview
GSD R14 is part of the Tern E Gsd model. 16 e-bikes variations carry this model name so far. You can easily view all of the Tern E Gsd e-bikes models from 2023, here.
Model range prices
Tern GSD S10 2023 is the cheapest e-bike model and costs 4999$. Tern GSD R14 2023 is the most expensive one and costs 7999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Long Tail Cargo e-bikes average price
According to our calculations, the average cost of a Long Tail Cargo e-bike that is reliable is 3082$. However, this doesn’t mean that if you spend less money on a Long Tail Cargo e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7999$. If we compare this with the average Long Tail Cargo e-bike cost we notice that the price is 159.54% more expensive.
Average weight for Long Tail Cargo e-bikes
Long Tail Cargo e-bikes weigh an average of 32.16 kg (70.9 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
GSD R14 weighs 37.26 kg (82.14 lbs) and is much heavier than the average. In conclusion, the average Long Tail Cargo e-bike weighs 15.86% less than GSD R14.
GSD R14 components
Fork
The Suntour is included from the factory. It has a travel distance of 70mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this e-bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When it comes to wheels, the GSD R14 e-bike is equipped with the 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
For your safety, it is important to have quality breaks on your bike. Tern GSD R14 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike has one size only, so it might not fit you. In short, make sure you double-check if it fits you.
