Tern HSD P10 2023

2023 E-bike
Estimate price | 4,299$
Weight | 27.6 kg
E-bike
Open compare Use advisor
  • Tern HSD P10 2023 - tern-hsd-p10-2023.jpeg
  • Tern HSD P10 2023 - tern-hsd-p10-2023-1.jpeg
  • Tern HSD P10 2023 - tern-hsd-p10-2023-2.jpeg
  • Tern HSD P10 2023 - tern-hsd-p10-2023-3.jpeg
  • Tern HSD P10 2023 - tern-hsd-p10-2023-4.jpeg
  • Tern HSD P10 2023 - tern-hsd-p10-2023-5.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 20"
  • Travel Front 70mm
  • Fork Suntour
  • Groupset Deore
  • Suspension Hardtail
  • Motor Bosch 250W 75Nm mid-drive
  • Battery Bosch PowerPack 545
  • Drivetrain 1 × 10
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg

Suspension Fork

Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg

Drivetrain

Rear Derailleur

Shimano Deore Shadow+

Shift Levers

Shimano Deore, 1 x 10 spd, trigger

Cassette

Shimano 11-36T, 10 spd

Crank

Tern HSD custom

Bottom Bracket

Motor integrated

Chain

KMC 10 spd, for eBike, EPT corrosion resistant coating

Chain Guide

Tern Custom, full chain cover

Pedals

Urban with non-slip surface

Wheels

Front Hub

Novatec, Thru-axle, sealed bearings

Rear Hub

Novatec, sealed cartridge bearing, disc

Rims

Tern Atlas H, wide 35 mm

Tires

Schwalbe Big Apple, 55-406, puncture protection, Reflex

Brakes

Brakes

Hydraulic Disc

Brake Levers

Tektro, hydraulic disc

Cockpit

Stem

Tern Andros, adjustable, forged construction, patented technology

Handlebar

Tern Sweep, 6061-AL, Tern Andros adapted

Headset

Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated

Seat

Saddle

Tern Upright by Velo

Seatpost

Tern Telescope, 34.9/30.9 mm, 2014-AL

Motor & Battery

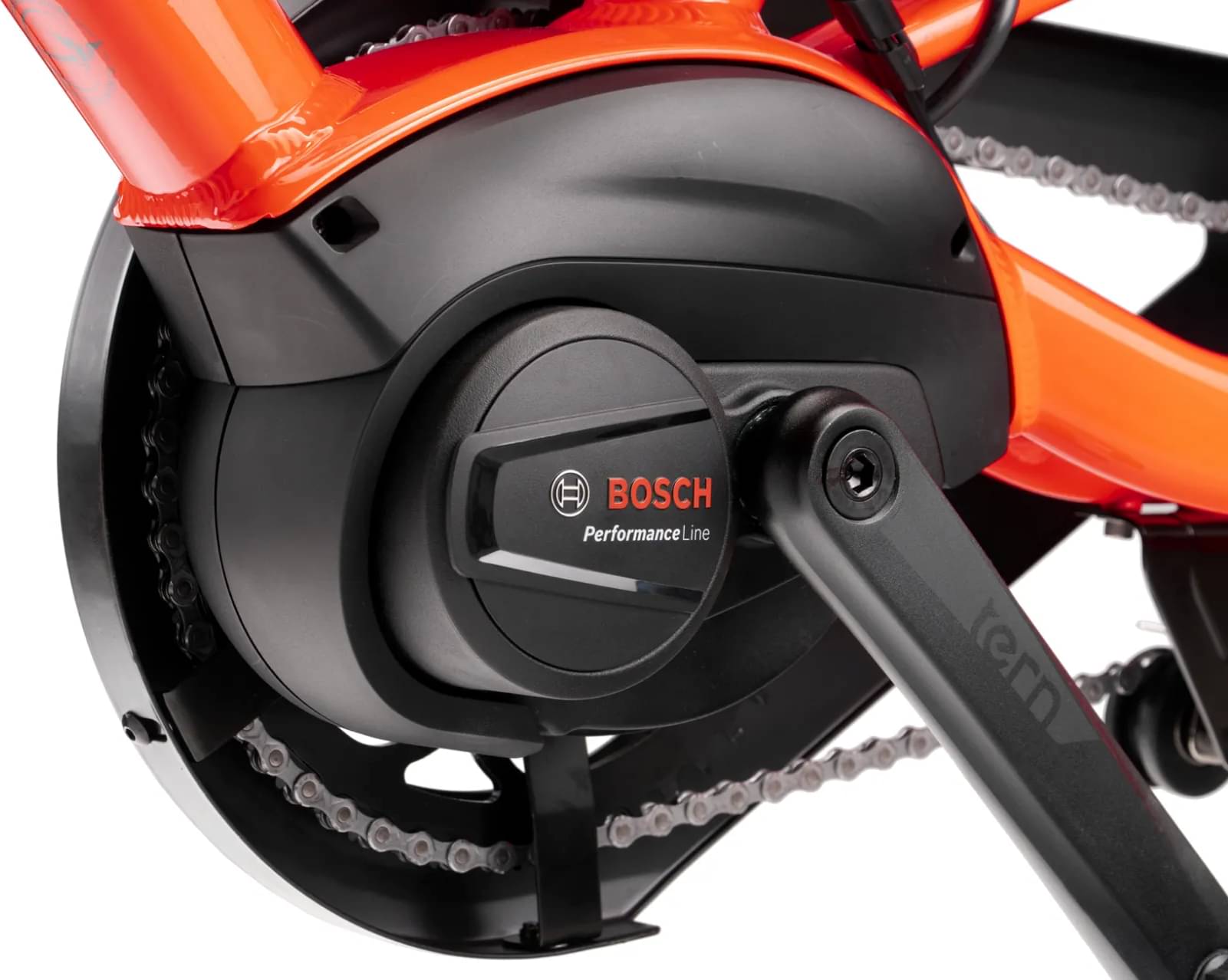

Motor

Bosch Performance, 340% Assist, 75 Nm Torque, Class 1 max speed 20 mph

Battery

Bosch PowerPack 545

Model Overview

HSD P10 belongs to the Tern E Hsd model. Tern launched 20 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.

Model range prices

Tern HSD P9 2023 is the most affordable e-bike of this model and has a price of 3699$. On the other hand, Tern HSD S+ 2023, is the most expensive and costs 5699$.

Safety

When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.

Utility e-bikes average price

If you want an acceptable Utility e-bike you should know that the average price is 3636$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Utility e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.

Furthermore, this bike was made available in 2023 for 4299$. Comparing this to the average Utility e-bike price, we see that the price is 18.23% higher.

Utility e-bikes average weight

If we make a quick analysis of the average weight of an Utility e-bike, we get 34.2 kg (75.4 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.

Tern HSD P10 it’s weighing 27.6 kg (60.85 lbs). At this weight, is much lighter than average. In short, the average Utility e-bike weight is 23.91% higher than this one.

HSD P10 components

Fork

The HSD P10 comes factory-installed with the Suntour fork. This has a travel range of 70mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.

Fork material

The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.

Wheels

The wheels on HSD P10 are the 20″ aluminum type. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.

Brakes

Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.

Sizes

This e-bike has one size only, so it might not fit you. In short, make sure you double-check if it fits you.
