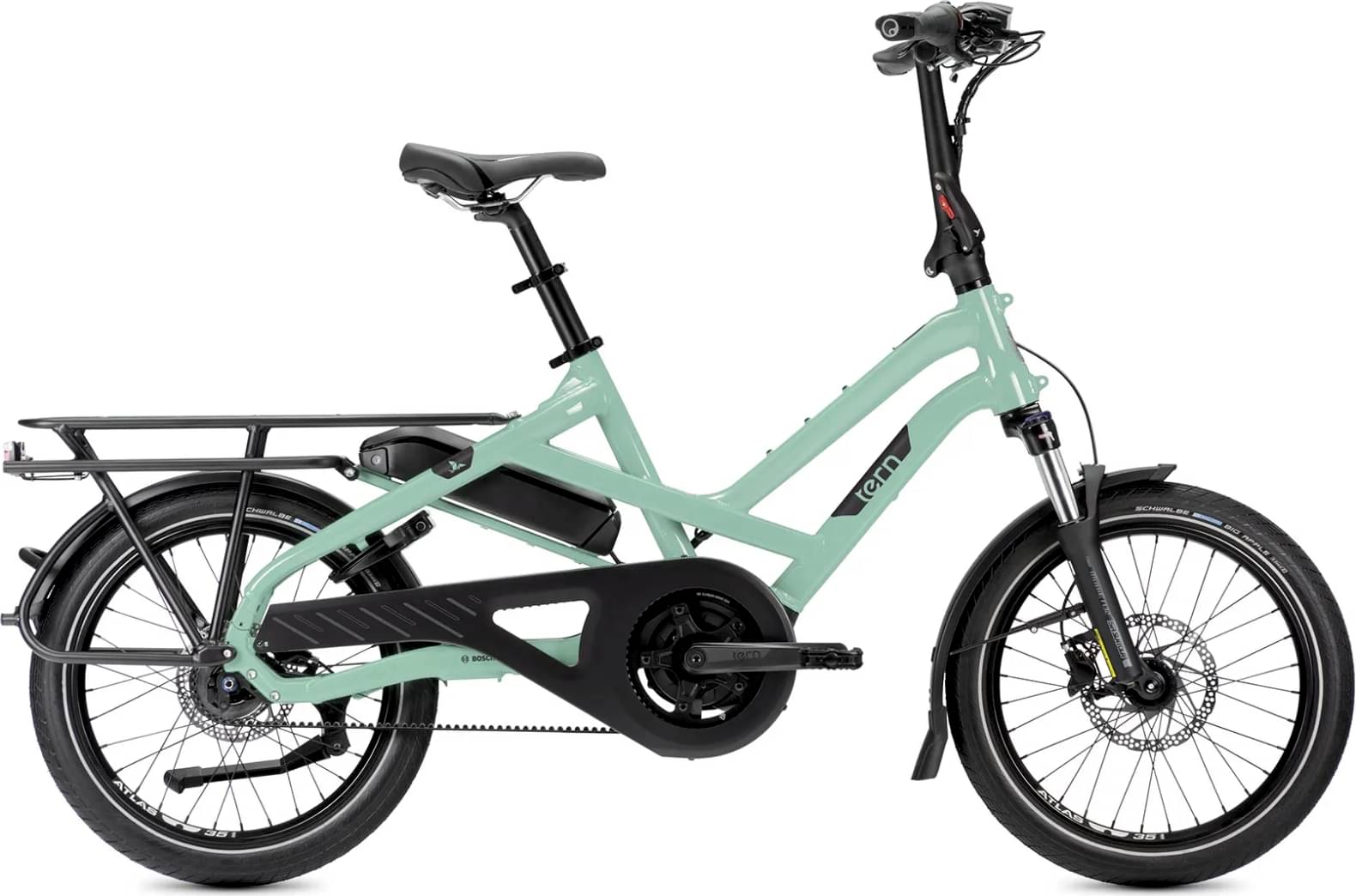

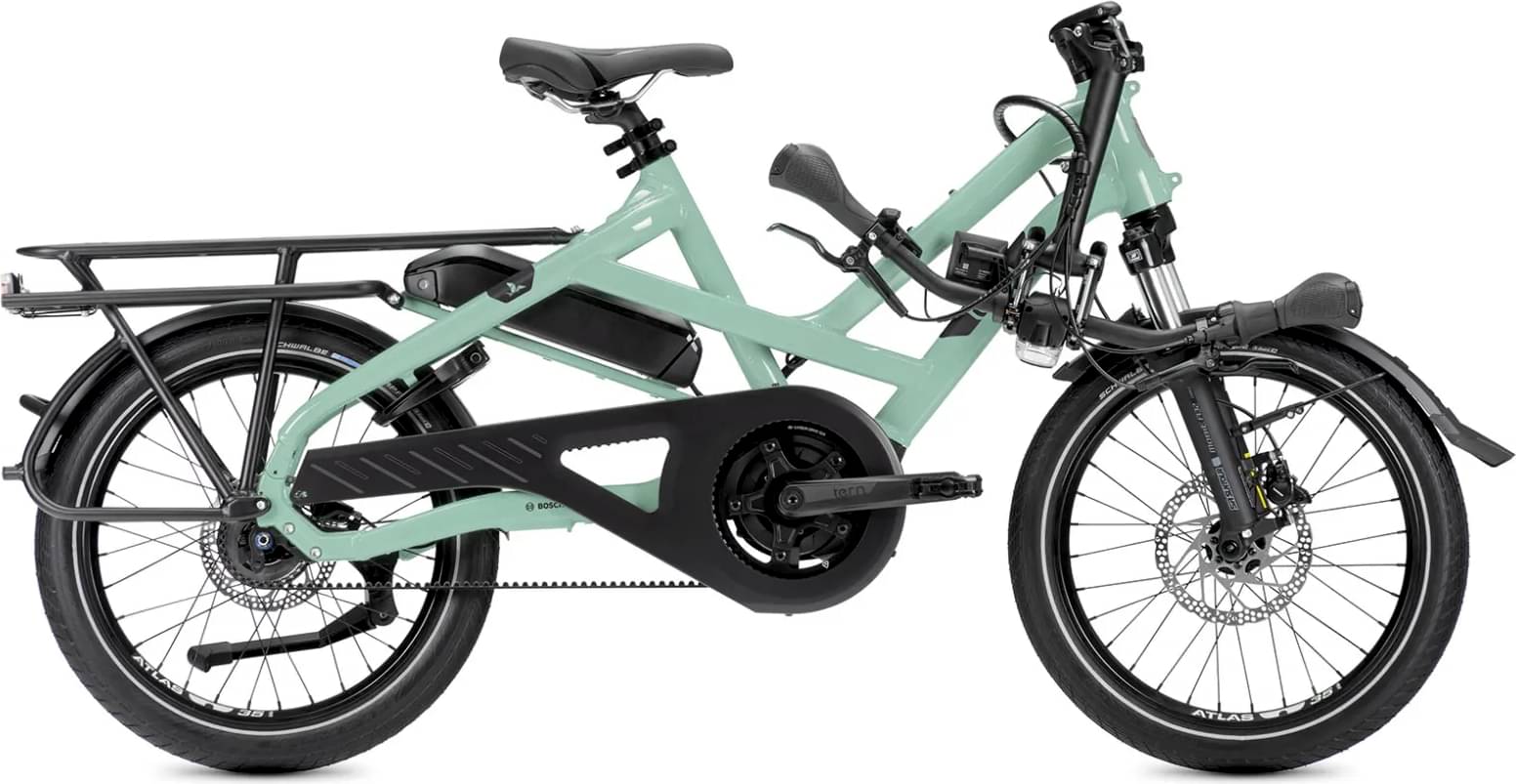

Tern HSD P5i 2023
2023 E-bike
Estimate price |
4,599$
Weight | 27.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 70mm -
Fork Suntour
-
Groupset Nexus, Gates CDX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 545 -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Drivetrain
Shift Levers
Shimano Nexus INTER-5E
Cassette
Gates CDX, precision CNC machined cog
Crank
Tern HSD custom, Gates CDX CNC machined beltring
Bottom Bracket
Motor integrated
Chain
Gates Carbon Drive CDX belt
Chain Guide
Tern Custom, full chain cover
Pedals
Urban with non-slip surface
Wheels
Front Hub
Novatec, Thru-axle, sealed bearings
Rear Hub
Shimano Nexus INTER-5E
Rims
Tern Atlas H, wide 35 mm
Tires
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, hydraulic disc

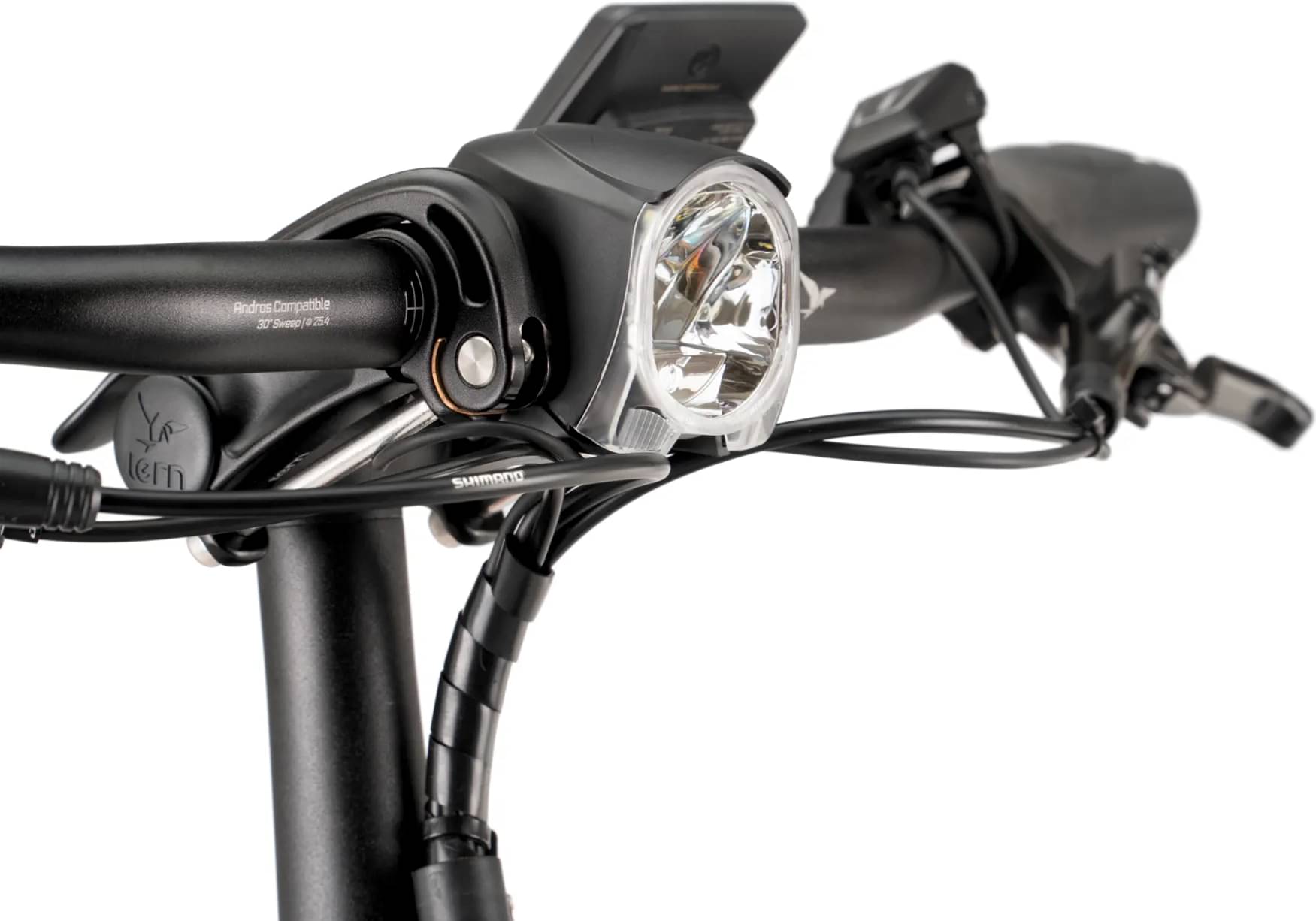

Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Seat
Saddle
Tern Upright by Velo
Seatpost
Tern Telescope, 34.9/30.9 mm, 2014-AL
Motor & Battery
Motor

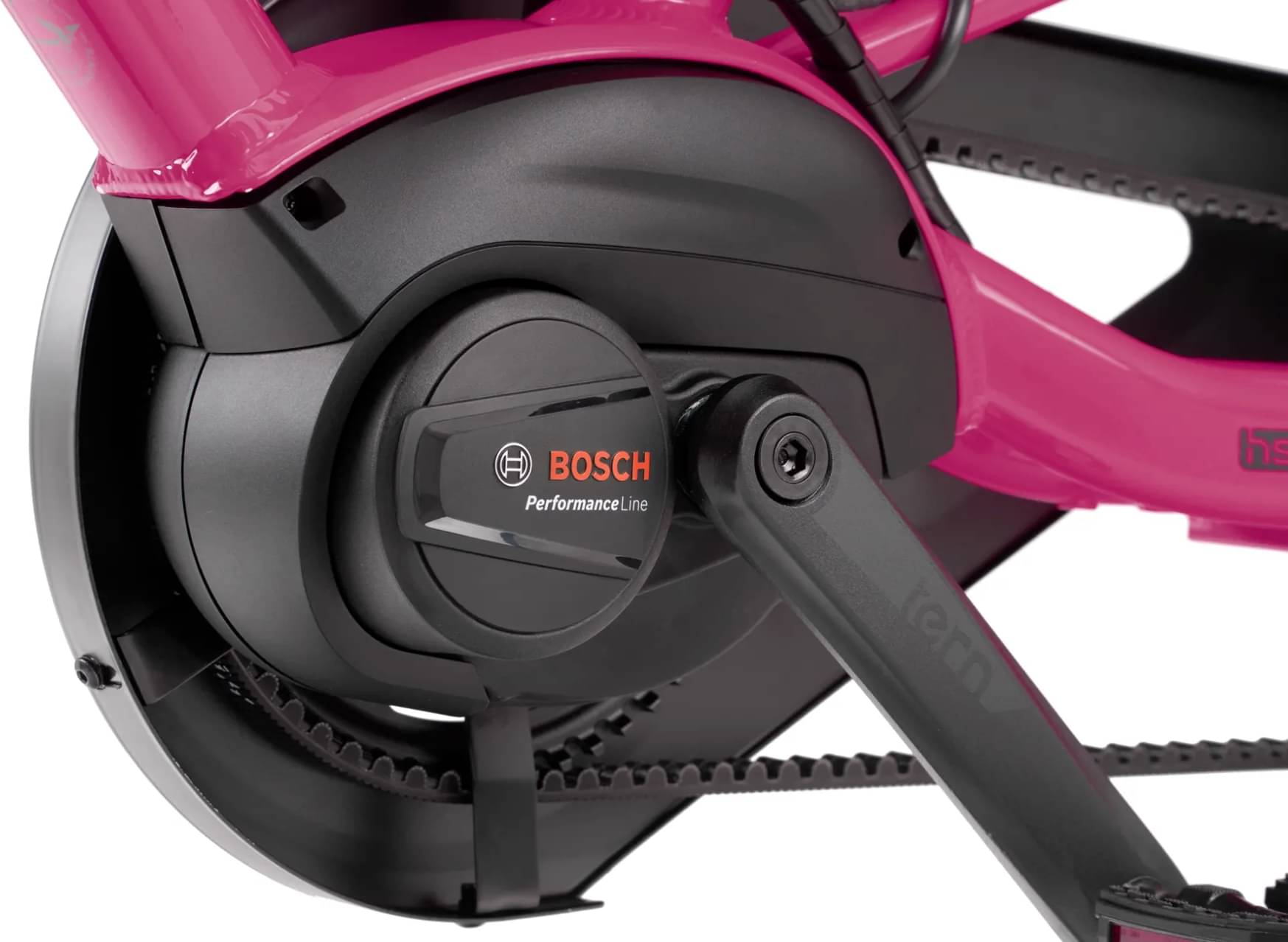

Bosch Performance, 340% Assist, 75 Nm Torque, Class 1 max speed 20 mph (US)
Battery

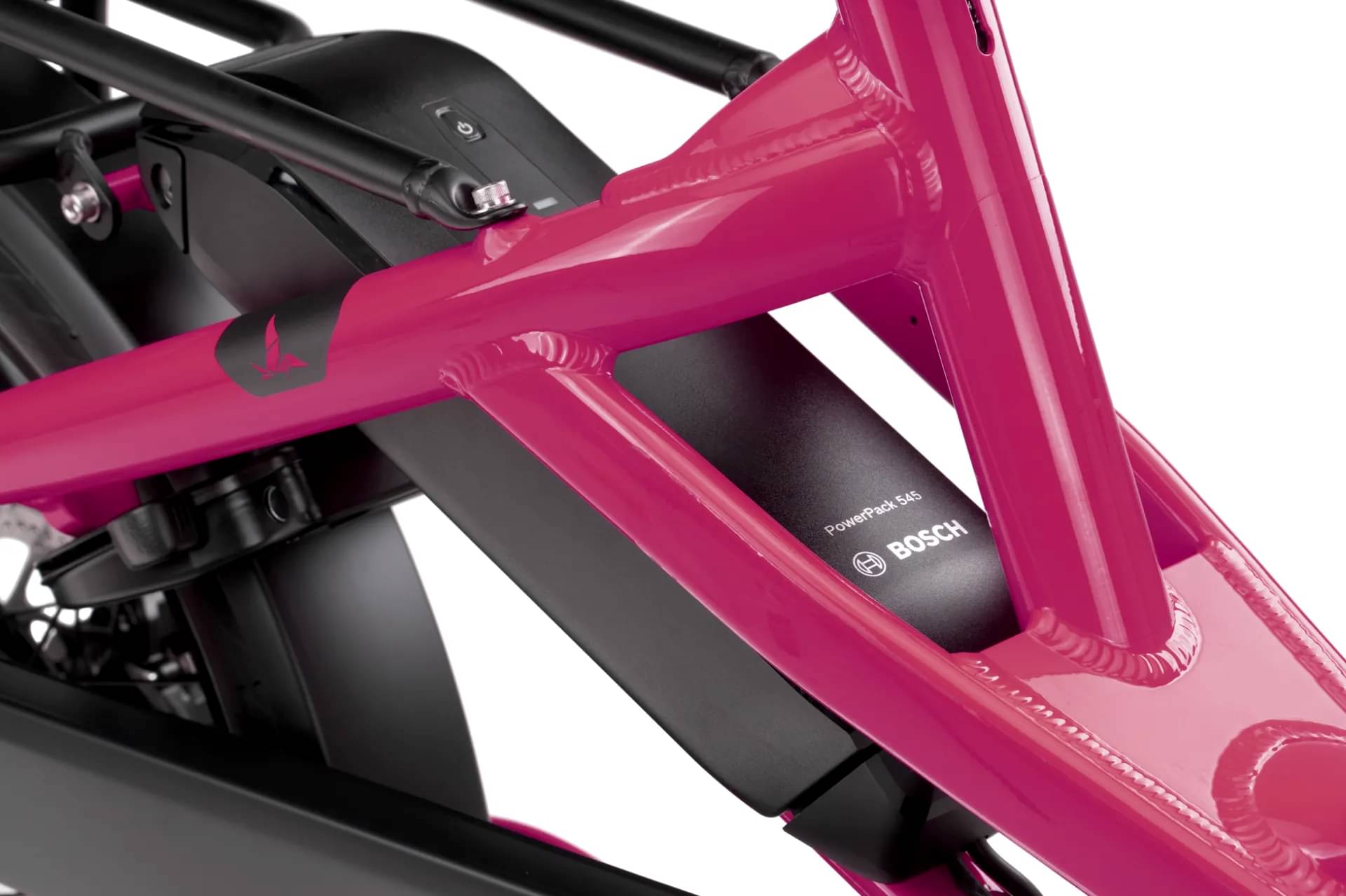

Bosch PowerPack 545
Model Overview
HSD P5i is part of the Tern E Hsd model. Tern launched 20 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Tern HSD P9 2023 is the most affordable e-bike of this model and has a price of 3699$. On the other hand, Tern HSD S+ 2023, is the most expensive and costs 5699$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Utility e-bikes
According to our calculations, the average cost of an Utility e-bike that is reliable is 3636$. However, you could also get a good Utility e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Tern released this model in 2023, its price was 4599$. Comparing the average cost of an Utility e-bike to this one, you will see that HSD P5i price is 26.49% higher.
Average weight for Utility e-bikes
Utility e-bikes have an average weight of 34.2 kg (75.4 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
HSD P5i weighs 27.9 kg (61.51 lbs) and is much lighter than the average. To sum up, it’s 22.58% lighter than the average weight of Utility e-bikes.
HSD P5i components
Fork
Tern HSD P5i 2023 e-bike is equipped with the Suntour fork, and has 70mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
The wheels on HSD P5i are the 20″ aluminum type. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike has one size only, so it might not fit you. In short, make sure you double-check if it fits you.
