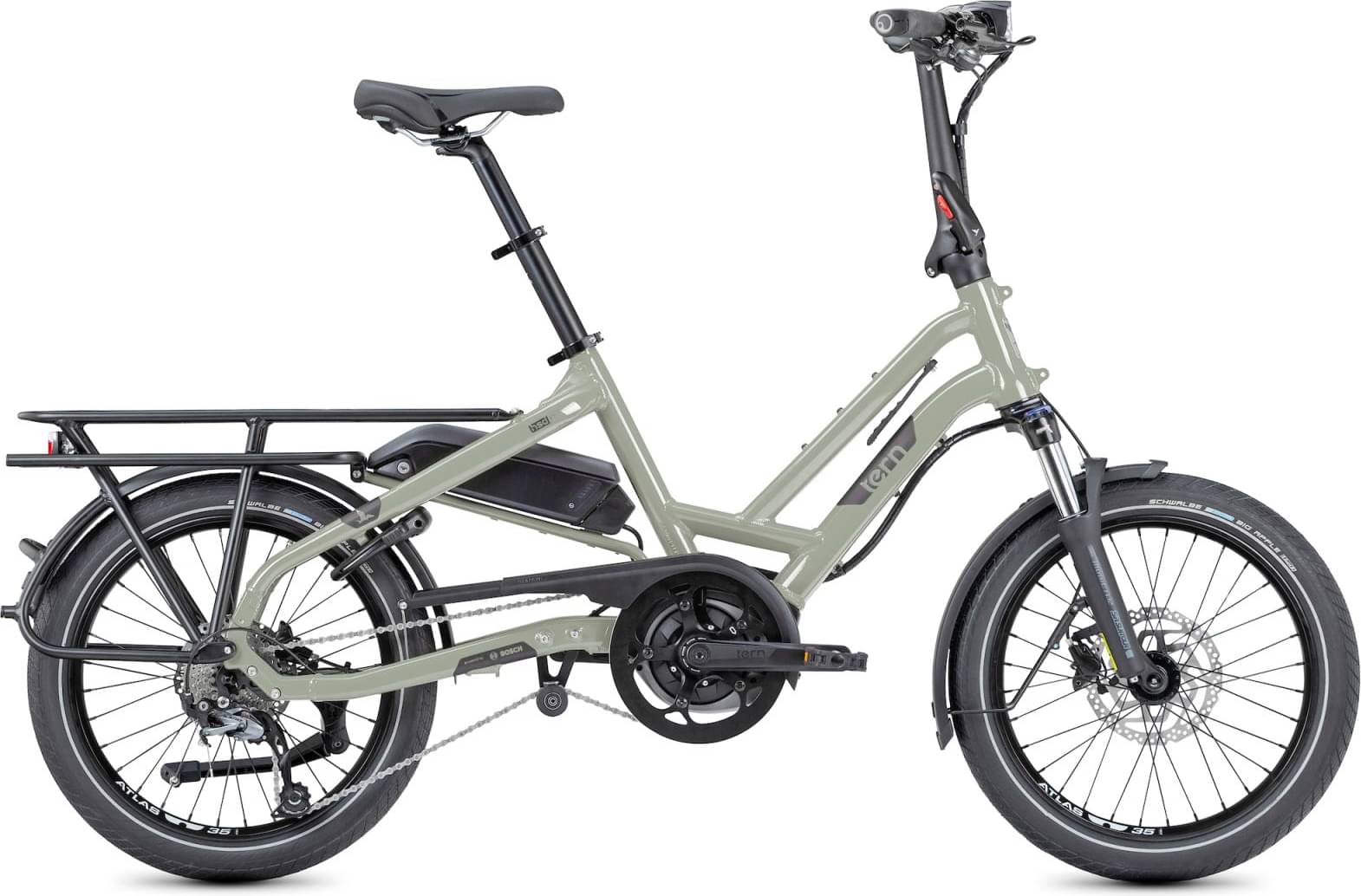

Tern HSD P9 2022
2022 E-bike
Estimate price |
3,699$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 20" -
Travel Front 70mm -
Fork Suntour
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 400 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
Suspension Fork
Suntour custom for Tern, Chromoly steerer, 32 mm stanchions, Thru-axle, EFBE tested for 170 kg
Drivetrain
Rear Derailleur
Shimano Alivio Shadow
Shift Levers
Shimano Alivio, 1 x 9 spd, trigger
Cassette
Shimano 11-32T, 9 spd
Crank
Tern HSD custom
Bottom Bracket
Motor integrated
Chain
9 spd, DHT for eBike, GST corrosion resistant coating
Chain Guide
SKS Chainblade
Pedals
Urban with non-slip surface
Wheels
Front Hub
Novatec, Thru-axle, sealed bearings
Rear Hub
Shimano disc
Rims
Tern Atlas H, wide 35 mm
Tires
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, hydraulic disc
Cockpit
Stem
Tern Andros (G2), adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux, cartridge bearings, Physis integrated
Seat
Saddle
Tern HSD
Seatpost
Tern Telescope, 34.9/30.9 mm, 2014-AL
Motor & Battery
Motor
Bosch Active Line Plus (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch PowerPack 400
Model Overview
HSD P9 is part of the Tern E Hsd model. Tern released 20 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Tern HSD P9 2022 has a starting price of 3699$. Tern HSD S+ 2022 on the other hand is the most expensive at 6370$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Utility e-bikes
If you want an acceptable Utility e-bike you should know that the average price is 3636$. However, you could also get a good Utility e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Tern HSD P9 price was 3699$. In conclusion, this e-bike price is 1.73% more expensive than the price of the average Utility e-bike.
Utility e-bikes average weight
If we make a quick analysis of the average weight of an Utility e-bike, we get 34.2 kg (75.4 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, HSD P9 has a weight of 25.7 kg (56.66 lbs). In other words, this model is 33.07% lighter than the average Utility e-bike.
Overview of components
Fork
This e-bike has the Suntour fork installed. The fork’s travel is 70mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this e-bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
As for the wheels, Tern HSD P9 2022, has a 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Tern HSD P9 2022 is available in one size only. In conclusion, double-check its size to make sure it’s a good fit for you.
