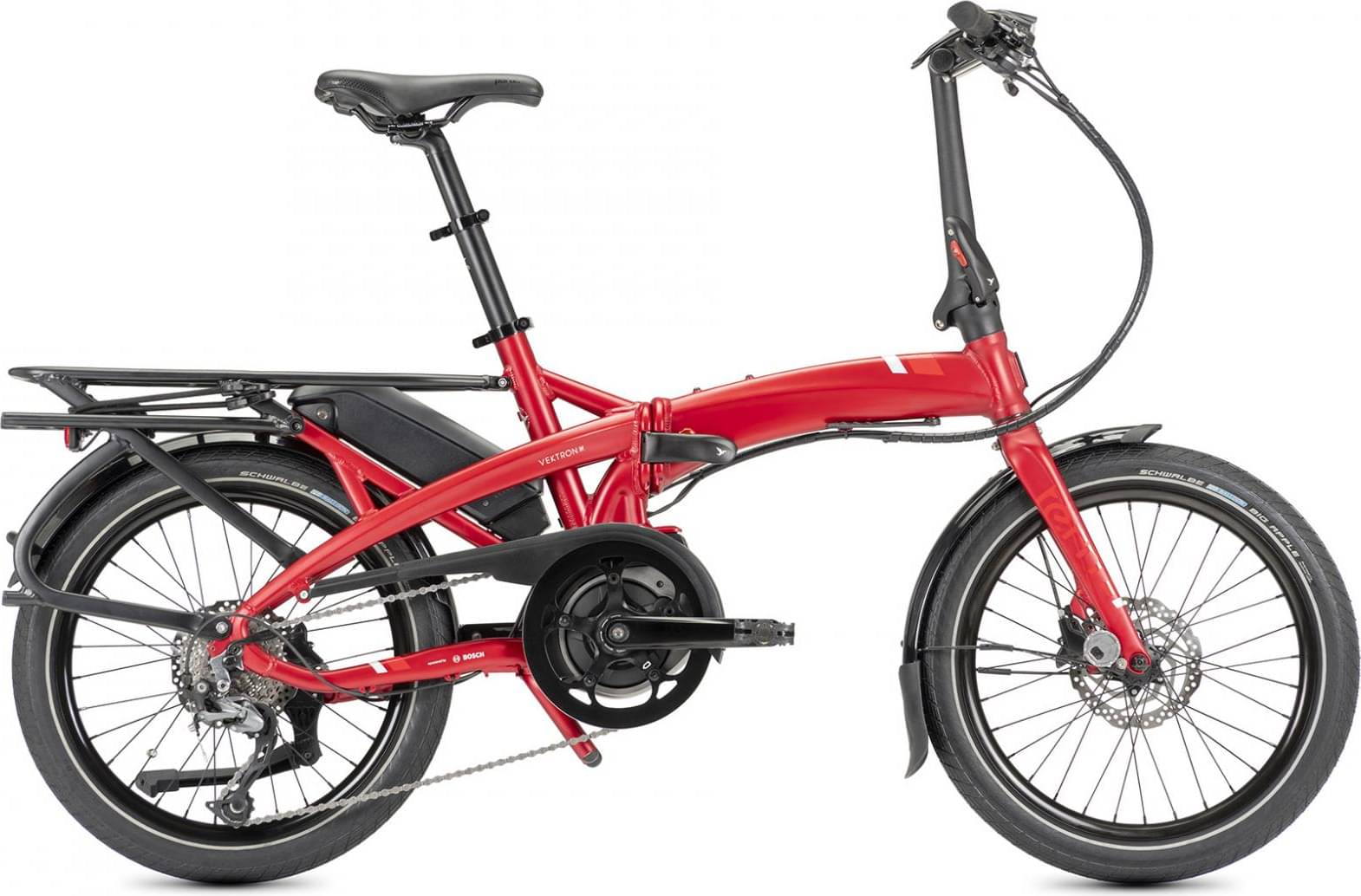

Tern Vektron Q9 2022
2022 E-bike
Estimate price |
4,885$
Weight | 21.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 20" -
Groupset Alivio -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 400 Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
Suspension Fork
Tern Tarsus, 6061-Al, hydroformed
Drivetrain
Rear Derailleur
Shimano Alivio Shadow
Shift Levers
Shimano Alivio, 1 x 9 spd, trigger
Cassette
Shimano 11-32T, 9 spd
Crank
Vektron custom, forged 6061-AL crankarm
Bottom Bracket
Motor integrated
Chain
9 spd, DHT for eBike, GST corrosion resistant coating
Chain Guide
SKS Chainblade
Pedals
MKS EZY
Wheels
Front Hub
Shimano disc
Rear Hub
Shimano disc
Rims
Kinetix Comp, for disc
Tires
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, hydraulic disc
Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Flat bar, 6061-AL, Tern Andros adapted
Headset
Tern Flux, cartridge bearings, Physis integrated
Seat
Saddle
Tern Porter, patented GripPad design
Seatpost
Tern Telescope, 34.9/30.9 mm, 2014-AL
Motor & Battery
Motor
Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch PowerPack 400 Wh
Model Overview
Vektron Q9 belongs to the Tern E Vektron model. 14 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Tern Vektron D8 2022 is the cheapest e-bike model and costs 2799$. Tern Vektron S10 2022 is the most expensive one and costs 5308$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Folding e-bikes
Our math shows that the average cost of a dependable Folding e-bike is 1557$. However, you could also get a good Folding e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 4458$. Doing a quick comparison, we notice that Vektron Q9 price is 186.32% higher than the average cost of a Folding e-bike.
Folding e-bikes average weight
Folding e-bikes have an average weight of 24.04 kg (53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Tern Vektron Q9 it’s weighing 21.9 kg (48.28 lbs). At this weight, is a bit lighter than average. In other words, this model is 9.77% lighter than the average Folding e-bike.
Overview of components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the Vektron Q9 model has 20″ aluminum wheels. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Tern Vektron Q9 2022 is available in one size only. In conclusion, make sure it fits you, or look for another model.
