Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Float 34
-
Groupset SLX -
Suspension Full -
Battery Battery max. 250 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD/LG
168cm - 185cm
MD/LG
168cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fork Fox Float 34-K 29" 140 mm FIT4 boost
Rear Shock
Damper DT Swiss R535 ONE 140mm
Drivetrain
Rear Derailleur
SLX, 12-speed, 32, 10/51
Cassette
SLX Grün 10/51T
Crank
SLX 32T
Pedals
Shimano combination pedals
Wheels
Rims
DT Swiss M 1900 29"
Tires
Schwalbe Racing Ray front & Racing Ralph rear 29x2.35
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Stem Thömus TIC, 60 mm
Handlebar
Thömus Alu Flat handlebar, 720mm
Seat
Saddle
Selle Italia X-Base, black
Seatpost
Kind Shock LEV-I 150mm
Motor & Battery
Battery
Battery max. 250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | MD/LG | MD/LG | XL | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.44 mm | 1.32 mm | 1.36 mm | 1.25 mm | 1.29 mm |
| Bottom Bracket Height | 331 mm | 339 mm | 331 mm | 339 mm | 331 mm | 338 mm |
| Stack | 608 mm | 616.2 mm | 622 mm | 629.9 mm | 635 mm | 643.5 mm |
| Reach | 438 mm | 427 mm | 473 mm | 462 mm | 507 mm | 497 mm |
| Top Tube Length | 560 mm | 563 mm | 599 mm | 602.4 mm | 638 mm | 641.8 mm |
| Seat Tube Angle | 73.1 ° | 72 ° | 73 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 390 mm | 390 mm | 420 mm | 420 mm | 450 mm | 450 mm |
| Head Tube Angle | 66.6 ° | 65.5 ° | 66.5 ° | 65.5 ° | 66.5 ° | 65.5 ° |
| Chainstay Length | 452 mm | 452 mm | 451 mm | 451 mm | 452 mm | 452 mm |
| Bottom Bracket Drop | 43 mm | 35 mm | 43 mm | 35 mm | 43 mm | 36 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
About this model

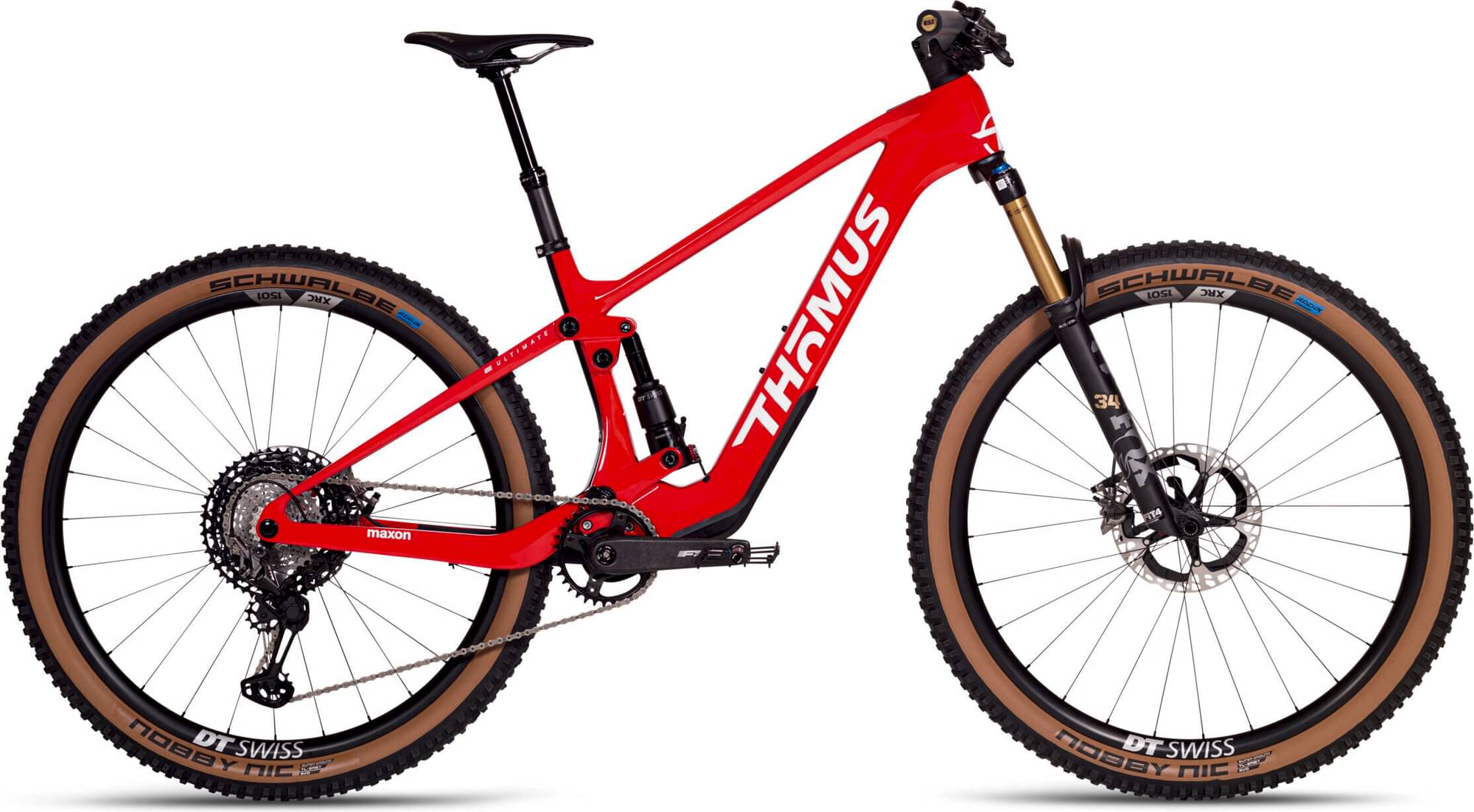

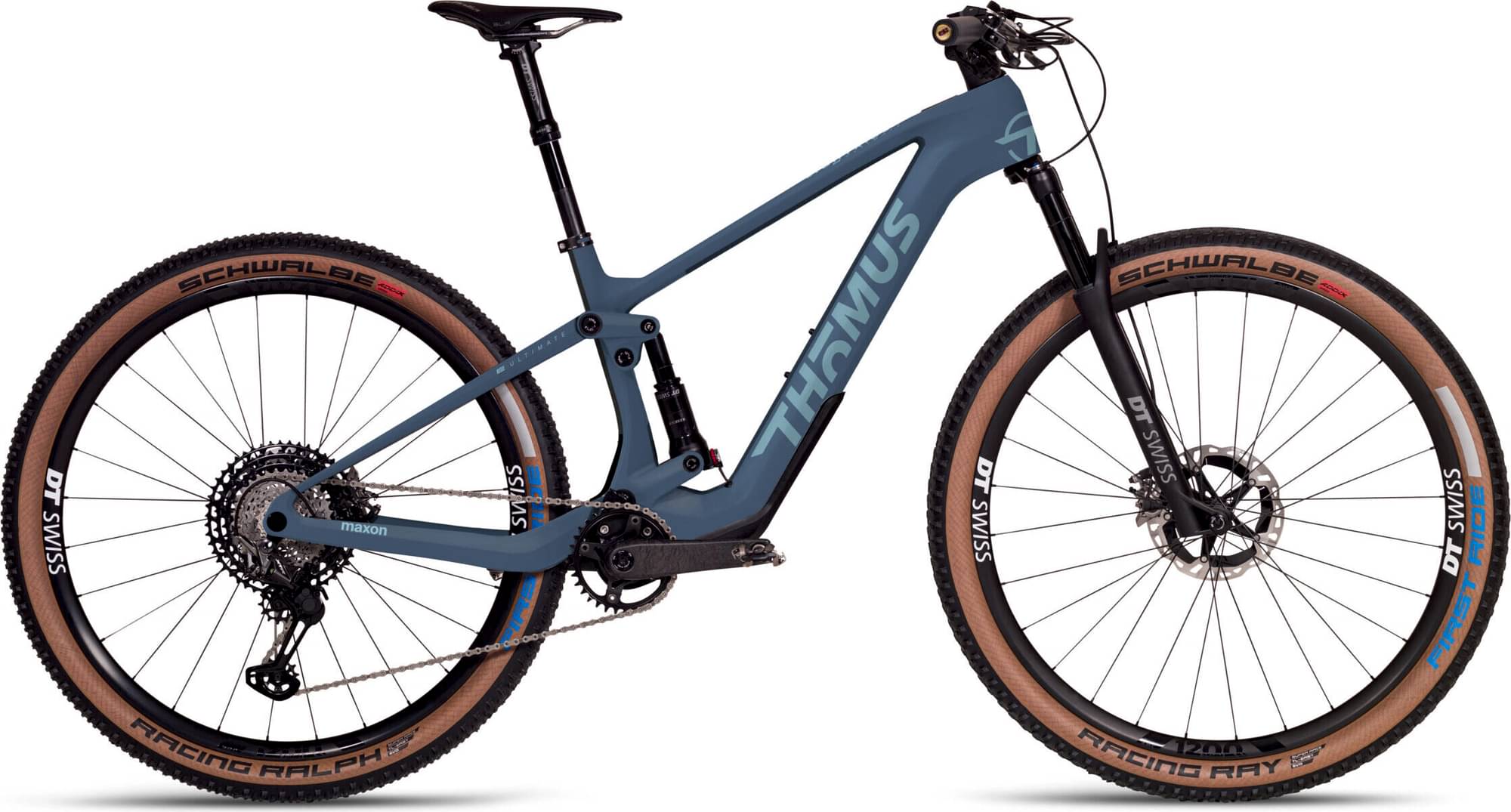

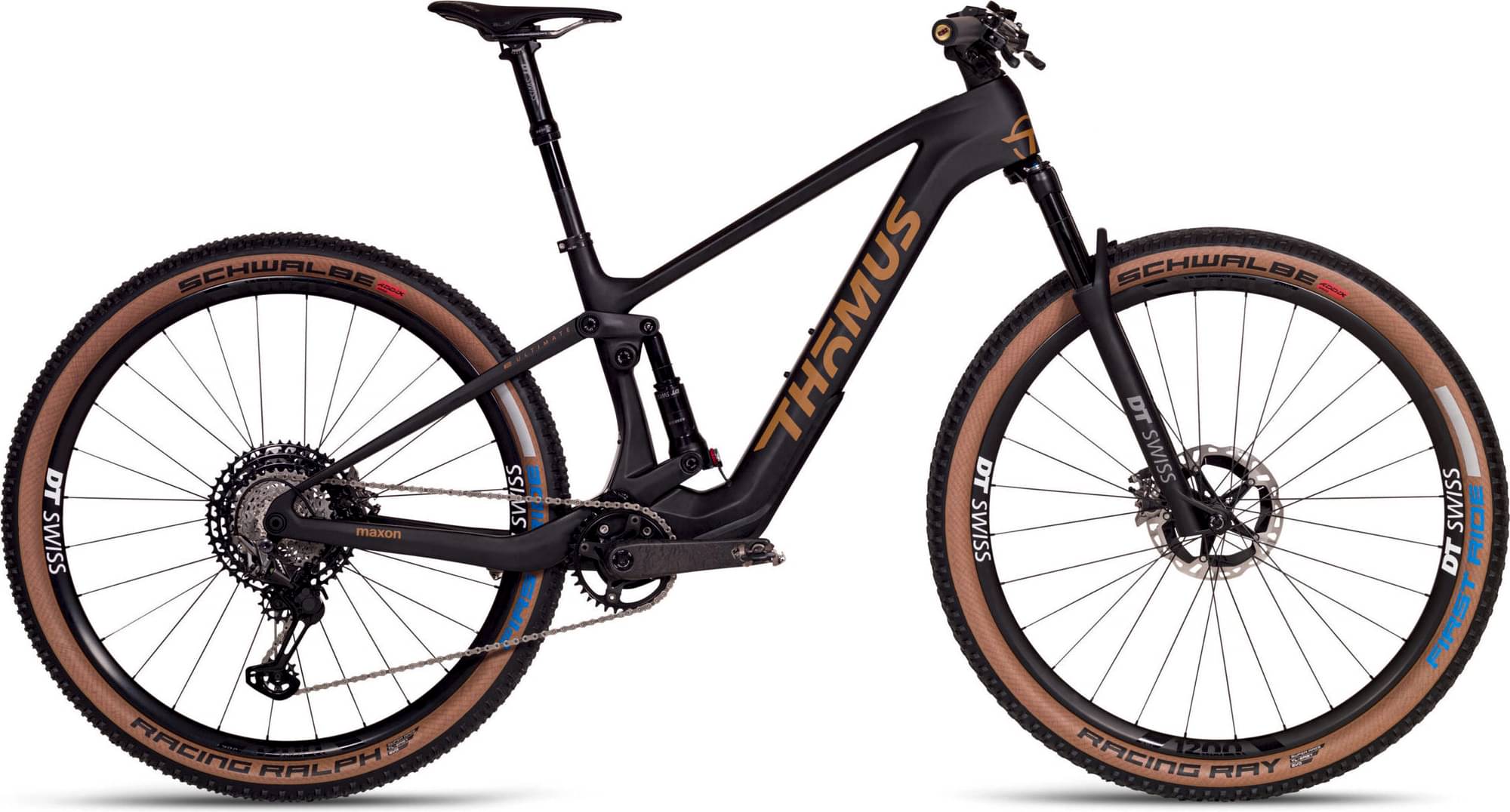

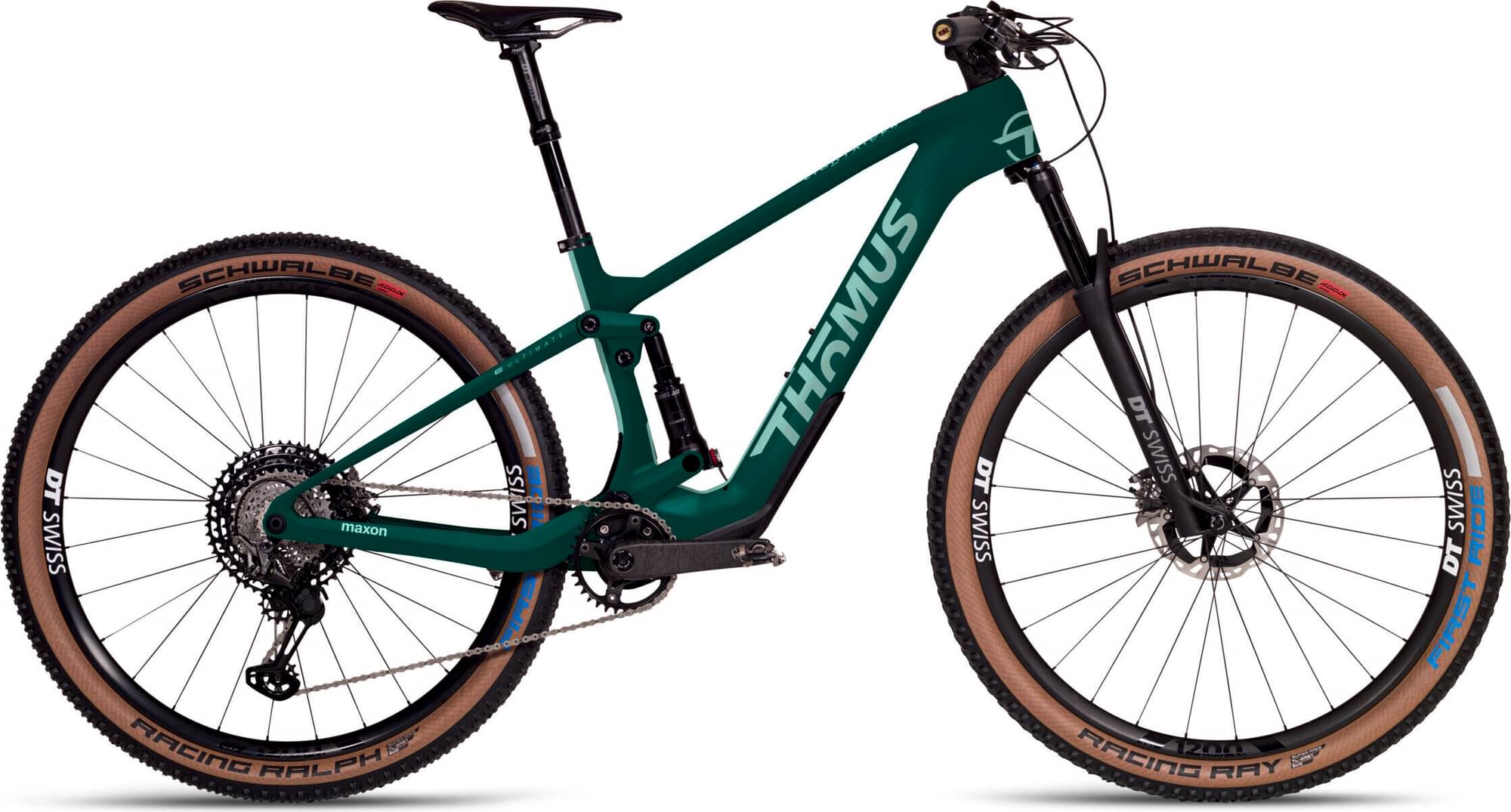

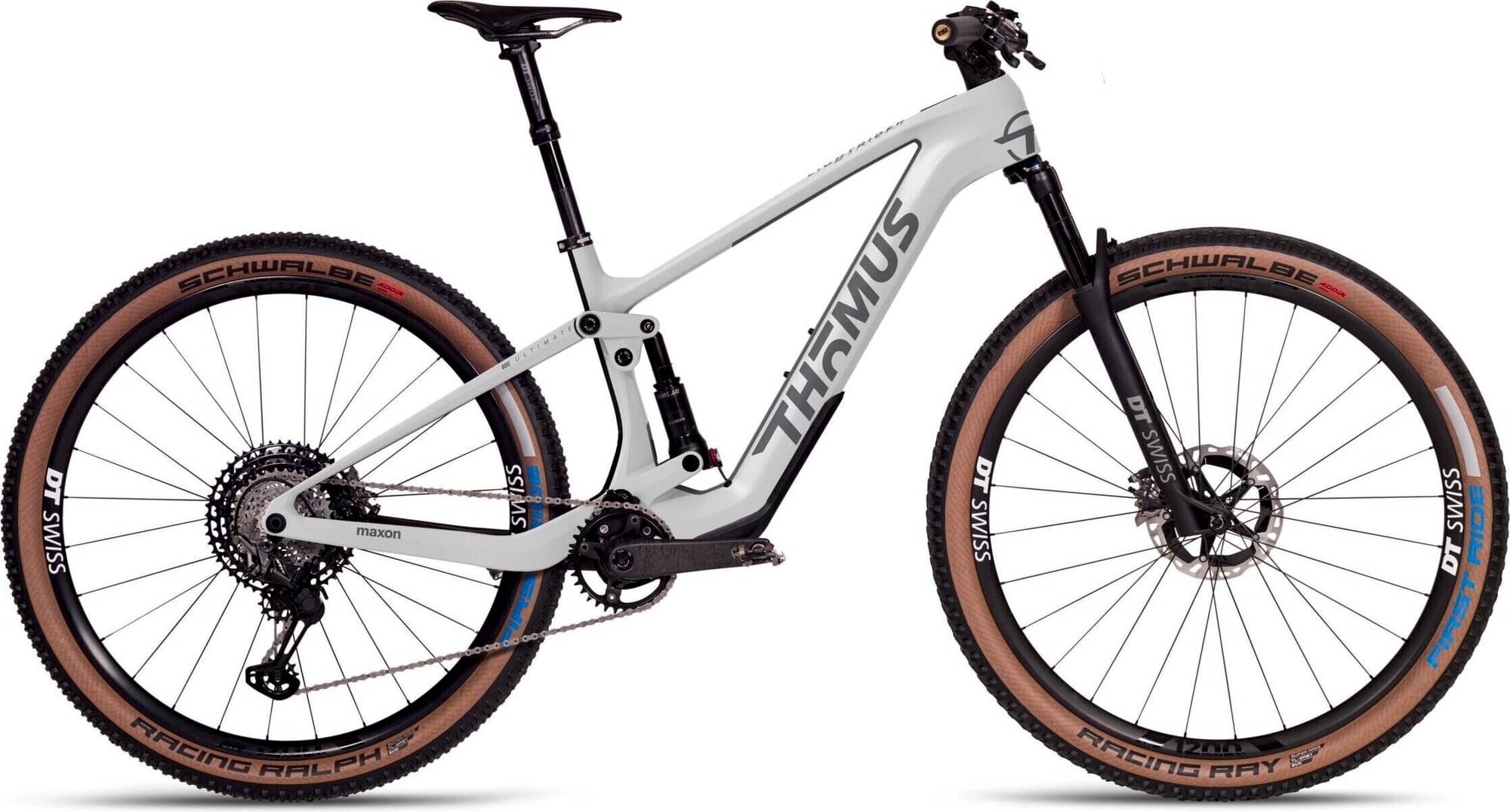

Lightrider E Ultimate SLX Grün completes the Thoemus E Lightrider model. 14 e-bikes variations carry this model name so far. Take a sneak peek at all Thoemus E Lightrider e-bikes models from 2023, by clicking here.
Model range prices
Thoemus Lightrider E2 Deore Aare 2023 is the most affordable e-bike of this model and has a price of 8146$. On the other hand, Thoemus Lightrider E2 XT Rot 2023, is the most expensive and costs 9887$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The Lightrider E Ultimate SLX Grün comes factory-installed with the Fox Float 34 fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Damper DT Swiss R535 ONE 140mm rear shock model, which has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Lightrider E Ultimate SLX Grün model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Thoemus Lightrider E Ultimate SLX Grün has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Thoemus Lightrider E Ultimate SLX Grün includes a dropper post. Therefore, climbing or descending will be a breeze.
