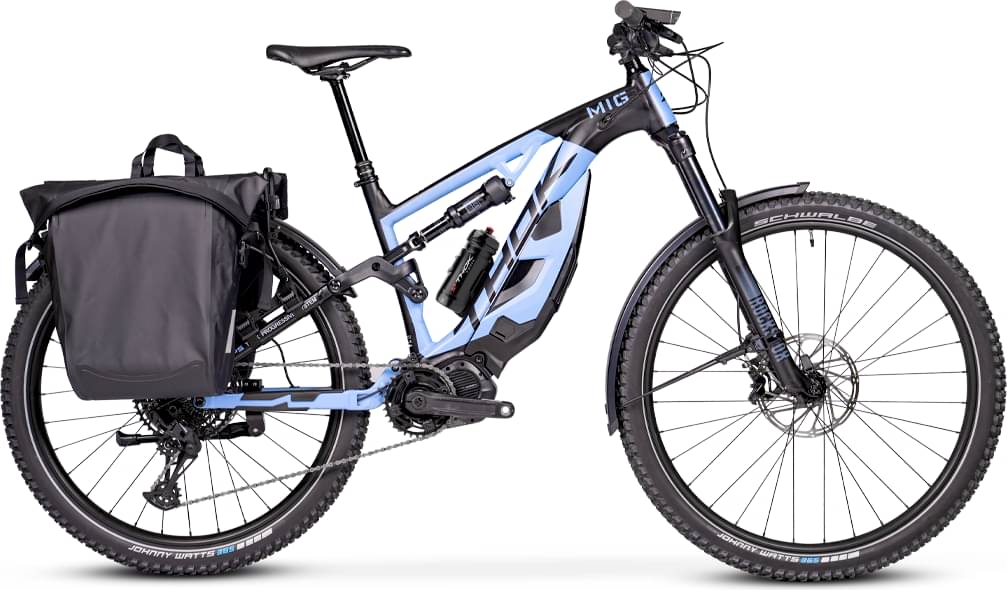

thok MIG Commuter 2023
2023 E-bike
Estimate price |
4,991$
Weight | 23.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle, FSA -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery SHIMANO STEPS E7000 - 60 Nm (250W) - 630 Wh waterproof battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
164cm - 176cm
LG
173cm - 186cm
XL
184cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy frame 6061 T4 T6 with 140mm rear travel, forged and CNC parts, hydroformed tubes, geometry 29"/27.5", semi-integrated battery
Suspension Fork
ROCK SHOX - 35 RC, Boost 150 mm travel, 15x110 mm, 35mm chassis, 150mm travel suspension, external rebound and low speed compression.
Rear Shock
ROCK SHOX - DELUXE Select R Air, custom tuned Thok, metric 210 x 55 mm
Drivetrain
Rear Derailleur
SRAM - SX Eagle 12s
Shift Levers
SRAM - SX Eagle trigger 12s
Cassette
SRAM - SX Eagle 12s, 11-50
Crank
FSA chainring 34 T
Chain
SRAM - SX Eagle 12s
Pedals
Pedals in polyethylene
Wheels
Rims
THOK Drift - 29"x30 mm (Size S 27.5"x35 mm) front & 27.5"x35 mm rear
Tires
Schwalbe - johnny watts 365 (Size S 27.5) front & 27.5rear
Brakes
Brakes
SRAM - GUIDE T 4 calipers, with 200mm rotor disks
Cockpit
Stem
THOK Force - 35mm clamp oversize, 45 mm length
Handlebar
THOK Oversize bar 35 mm, rise 20 mm
Grips
THOK - Lock-On grip
Seat
Saddle
THOK Fit in Chromo
Seatpost
THOK telescopic dropper post, (125 mm size S - 150 mm other sizes)
Motor & Battery
Motor
SHIMANO STEPS E7000 - 60 Nm (250W) - 630 Wh waterproof battery
Battery
SHIMANO STEPS E7000 - 60 Nm (250W) - 630 Wh waterproof battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.443 mm | 1.403 mm | 1.368 mm | 1.329 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 715 mm | 739 mm | 779 mm | 805 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114.6 mm | 114.6 mm | 114.6 mm | 114.6 mm |
| Stack | 596 mm | 606 mm | 624 mm | 642 mm |
| Reach | 413 mm | 432 mm | 456 mm | 483 mm |
| Top Tube Length | 560 mm | 600 mm | 630 mm | 665 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 400 mm | 435 mm | 470 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1165 mm | 1189 mm | 1229 mm | 1255 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 810 mm | 810 mm | 810 mm | 810 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 154 cm | 164 cm | 173 cm | 184 cm |
| Rider Max Height | 167 cm | 176 cm | 186 cm | 199 cm |
About this model
MIG Commuter belongs to the Thok E Mig model. 7 e-bikes variations carry this model name so far. You can easily view all of the Thok E Mig e-bikes models from 2023, here.
Model range prices
Thok MIG HT R 2023 is the cheapest e-bike model and costs 4013$. Thok MIG Color Edition 2023 is the most expensive one and costs 5072$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Thok MIG Commuter price was 4543$. In conclusion, this e-bike price is 76.84% more expensive than the price of the average Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 23.8 kg (52.47 lbs), Thok e-bike is a bit lighter than average. In other words, this model is 5.88% lighter than the average Commuter e-bike.
Overview of components
Fork
The RockShox 35 Gold RL is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Thok MIG Commuter e-bike has the ROCK SHOX – DELUXE Select R Air model installed, and has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the MIG Commuter e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Thok MIG Commuter e-bike has 4 sizes, in the range of 154 cm – 199 cm (5.05 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Thok MIG Commuter comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
