thok MIG LIMITED Yellow Edition 2022

2022 E-bike
Estimate price | 9,967$
Weight | 23.4 kg
E-bike
Open compare Use advisor

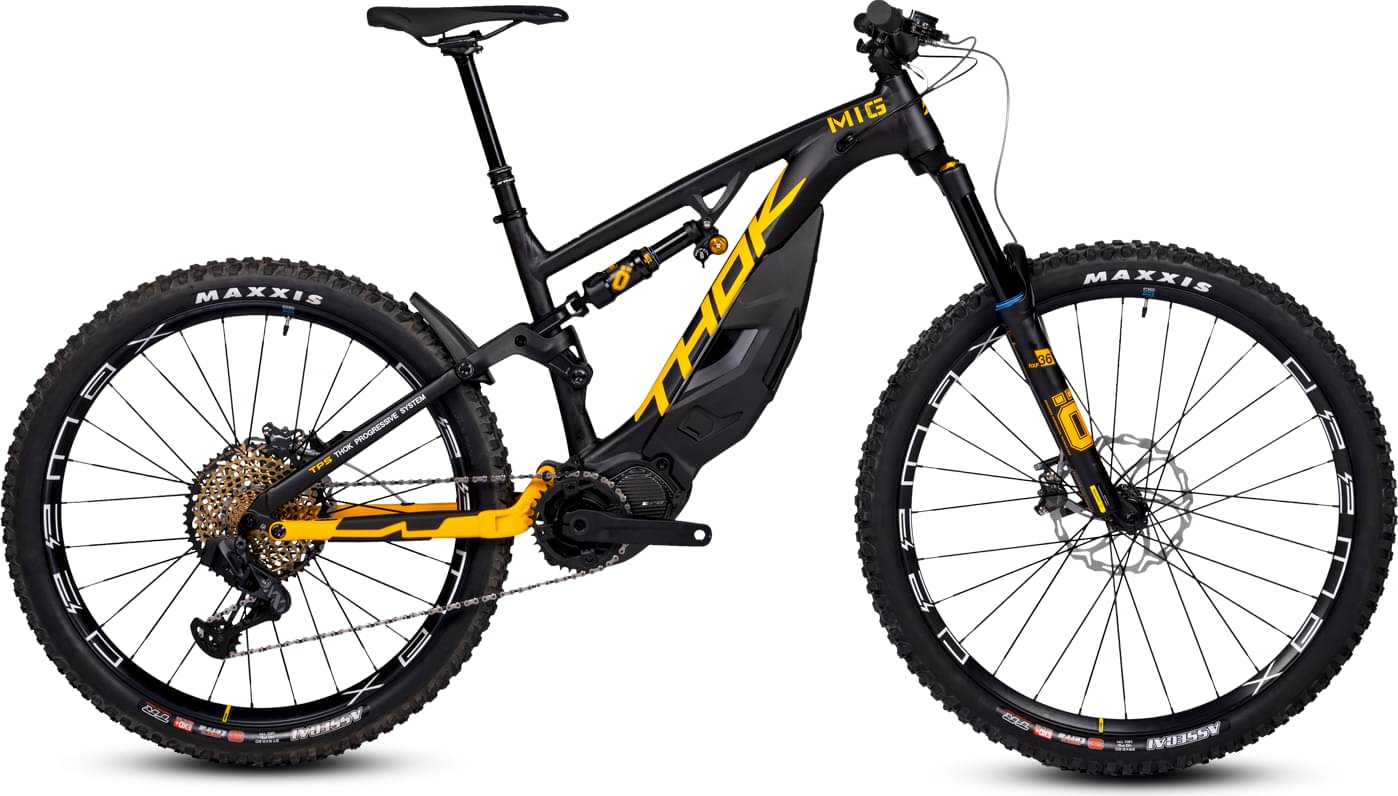

Thok Mig Limited Yellow Edition 2022

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 29"
  • Travel Front 150mm
  • Travel Rear 140mm
  • Fork Öhlins RXF36
  • Groupset XX1 Eagle AXS, SRAM
  • Suspension Full
  • Motor Shimano 250W 85Nm mid-drive
  • Battery SHIMANO 630Wh semi-integrated
  • Drivetrain 1 × 12 Electronic
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    154cm - 167cm

  • MD

    164cm - 176cm

  • LG

    173cm - 186cm

  • XL

    183cm - 200cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

THOK 6061 T4 T6 Aluminium, Forged and CNC machined, 29"/27,5" geometry, semi-integrated down tube battery, internal cable, fully sealed cartridge bearing, 140 mm travel

Suspension Fork

ÖHLINS RXF36 m.2 Air TTX18, 29'' Boost, 44mm offset, 150mm

Rear Shock

ÖHLINS TTX1 Air, 210x55mm, THOK custom tuned

Drivetrain

Rear Derailleur

SRAM XX1 EAGLE 12S AXS electronic wireless

Shift Levers

SRAM EAGLE AXS ROCKER electronic wireless

Cassette

SRAM XX1 EAGLE GOLD 10-50

Crank

FSA 165mm - Chainring SRAM 34T

Chain

SRAM EAGLE 12S

Pedals

CRANKBROTHERS Stamp 7 Large Flat Black

Wheels

Rims

MAVIC E-DEEMAX front 29” inner 30mm / rear 27,5” inner 35mm - TUBELESS liquid SPRAYKE

Tires

MAXXIS Assegai 29”x2.6 front / 27.5”x2.6 rear. 3C / EXO+ / TR

Brakes

Brakes

Hydraulic Disc

Cockpit

Stem

THOK oversize 35mm, length 37mm

Handlebar

RENTHAL FATBAR CARBON 35, 800mm, 20mm rise

Seat

Saddle

THOK Fit with Chromo frame

Seatpost

THOK dropperpost micro adjustable (travel 150 mm) with remote control

Motor & Battery

Motor

SHIMANO Ep8 - 85Nm (250W)

Battery

SHIMANO 630Wh semi-integrated

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.443 mm1.403 mm1.368 mm1.329 mm
Bottom Bracket Height
350 mm350 mm350 mm350 mm
Front Center
715 mm739 mm779 mm805 mm
Rake
45 mm45 mm45 mm45 mm
Trail
114.6 mm114.6 mm114.6 mm114.6 mm
Stack
596 mm606 mm624 mm642 mm
Reach
413 mm432 mm456 mm483 mm
Top Tube Length
560 mm600 mm630 mm665 mm
Seat Tube Angle
74.7 °74.7 °74.7 °74.7 °
Seat Tube Length
400 mm435 mm470 mm520 mm
Head Tube Angle
66 °66 °66 °66 °
Head Tube Length
100 mm110 mm130 mm150 mm
Chainstay Length
450 mm450 mm450 mm450 mm
Wheelbase
1165 mm1189 mm1229 mm1255 mm
Bottom Bracket Drop
13 mm13 mm13 mm13 mm
Standover Height
810 mm810 mm810 mm810 mm
Wheels29"29"29"29"
Rider Min Height154 cm164 cm173 cm183 cm
Rider Max Height167 cm176 cm186 cm200 cm

Model Overview

MIG LIMITED Yellow Edition belongs to the Thok E Mig model. There are 6 e-bikes that carry this model name. You can easily view all of the Thok E Mig e-bikes models from 2022, here.

Model range prices

The most economical model, the Thok MIG HT R 2022 has a starting price of 4024$. Thok MIG LIMITED Yellow Edition 2022 on the other hand is the most expensive at 9227$.

Safety

When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.

Trail e-bikes average price

According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.

This e-bike was released in 2022 and its price was 9227$. Comparing this to the average Trail e-bike price, we see that the price is 174.21% higher.

Average weight for Trail e-bikes

Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.

With a weight of 23.4 kg (51.59 lbs), Thok e-bike is slightly lighter than average. In other words, this model is 1.28% lighter than the average Trail e-bike.

Internal Cable Routing

Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.

MIG LIMITED Yellow Edition components

Fork

The MIG LIMITED Yellow Edition comes factory-installed with the Öhlins RXF36 fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.

Rear Shock

The shock that’s installed on this e-bike is ÖHLINS TTX1 Air, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.

Wheels

When it comes to wheels, the MIG LIMITED Yellow Edition e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.

Brakes

For your safety, it is important to have quality breaks on your bike. Thok MIG LIMITED Yellow Edition has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.

Sizes

MIG LIMITED Yellow Edition comes in 4 sizes, that range from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.

Dropper post

Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
